Suzuki Truck
>>
2005
>>
Grand Vitara 4WD V6-2.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
G Connectors
G Connectors

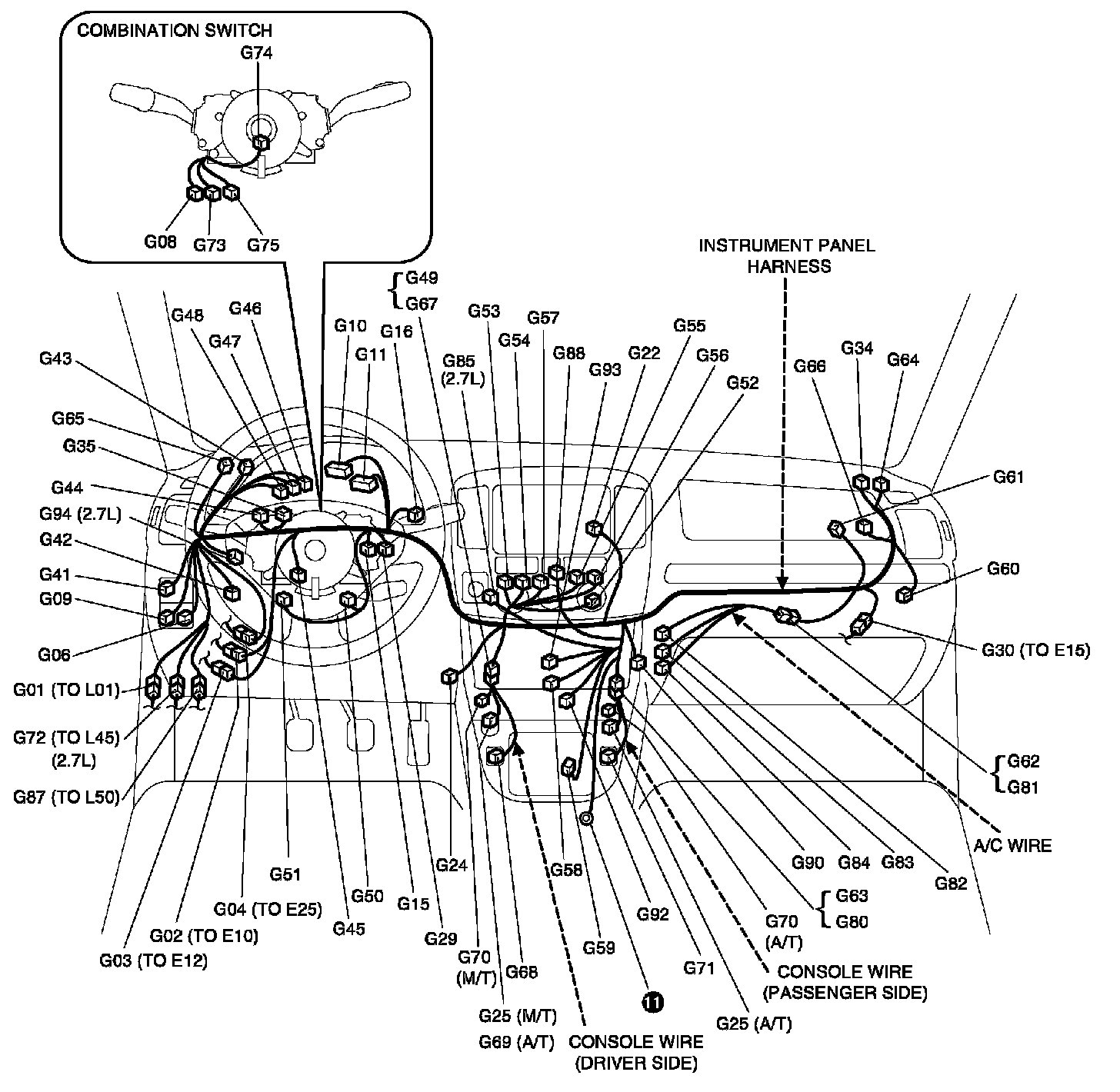

G: Instrument panel harness, console wire, A/C wire and combination switch View:

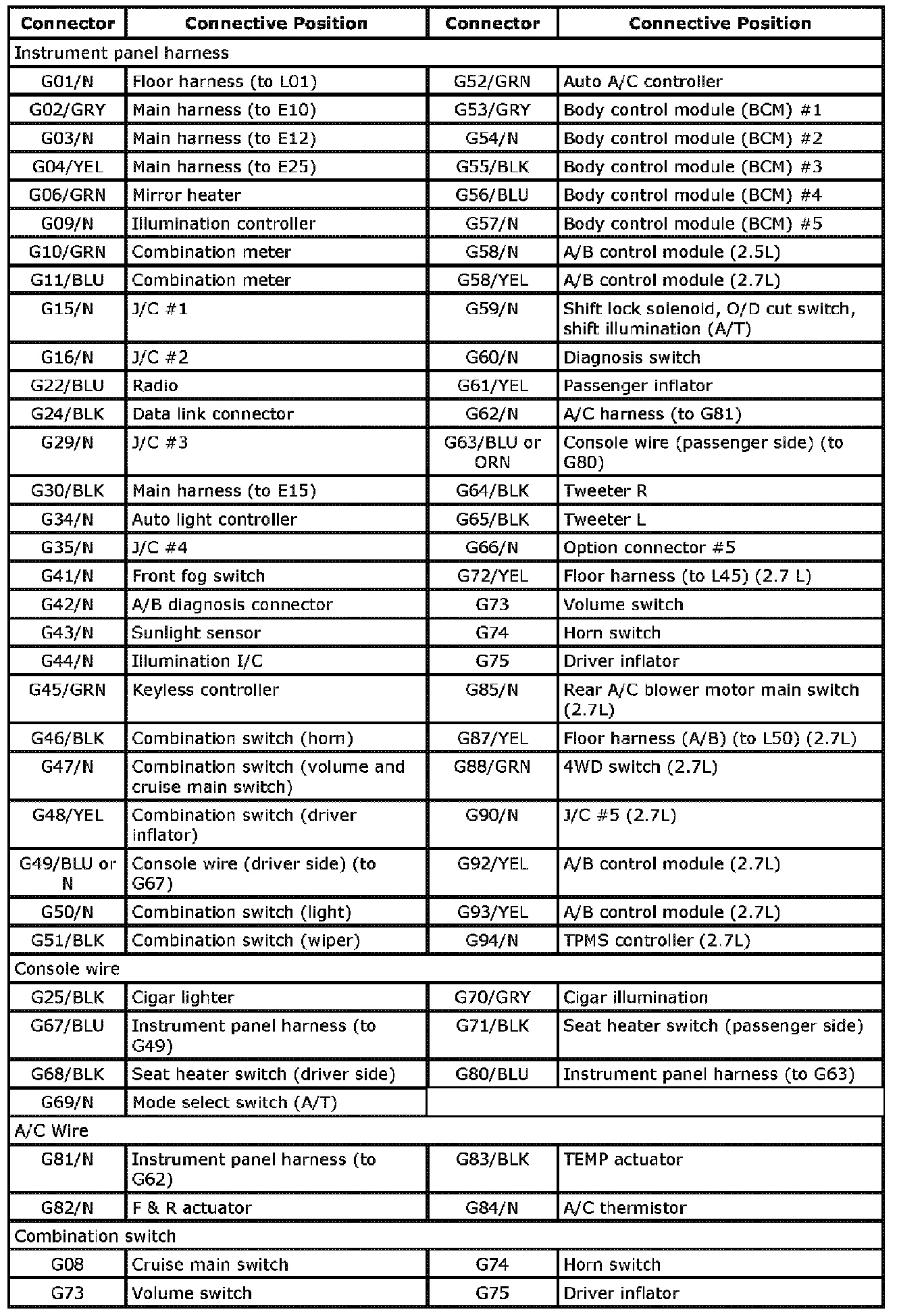

G:Instrument Panel Harness Console Wire A/C wire and Combination Switch Index:
