E Connectors

E: Main harness, oil pressure switch wire and washer wire:

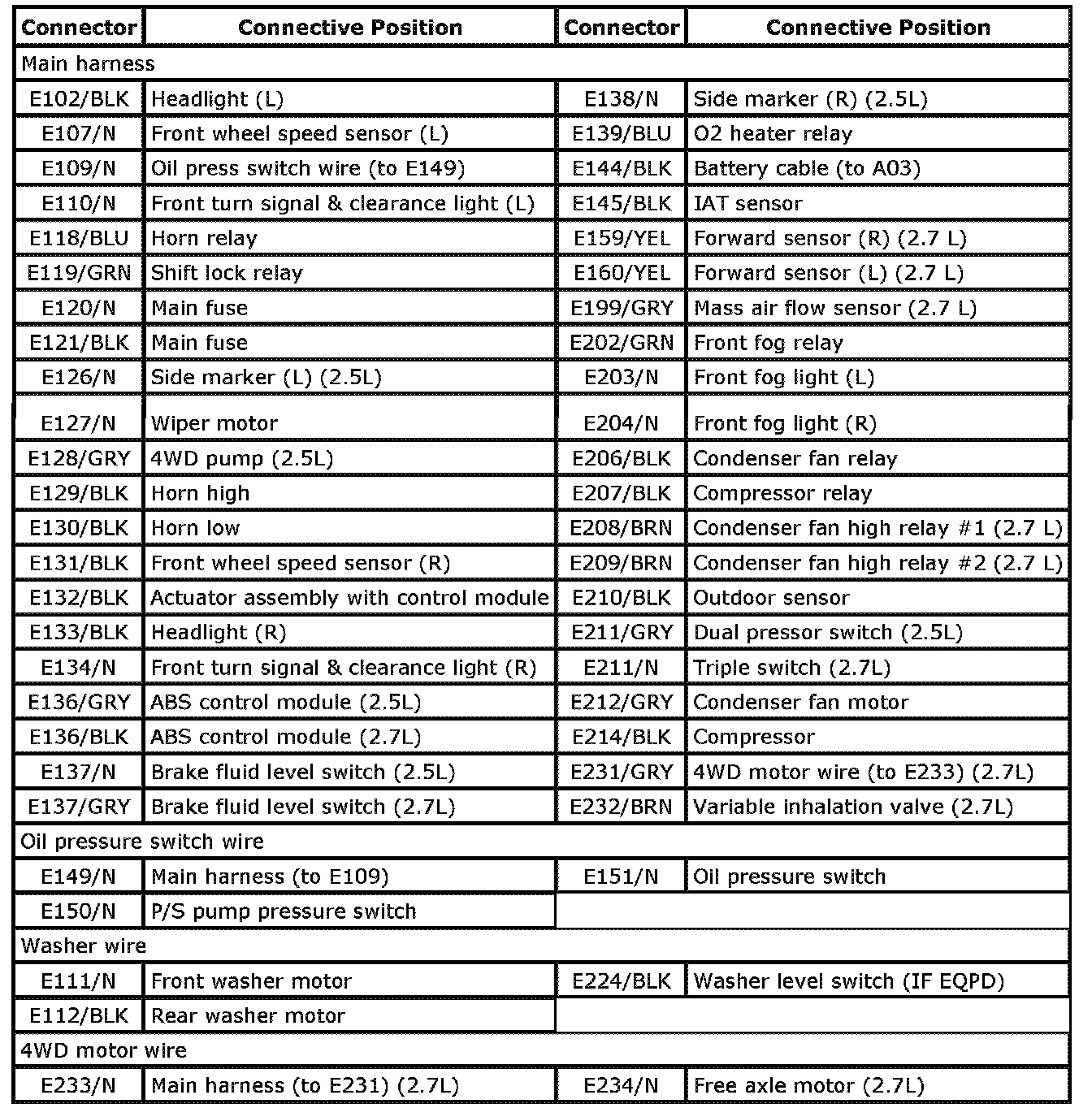

E:Main Harness Oil Pressure Switch Wire and Washer Wire Index:

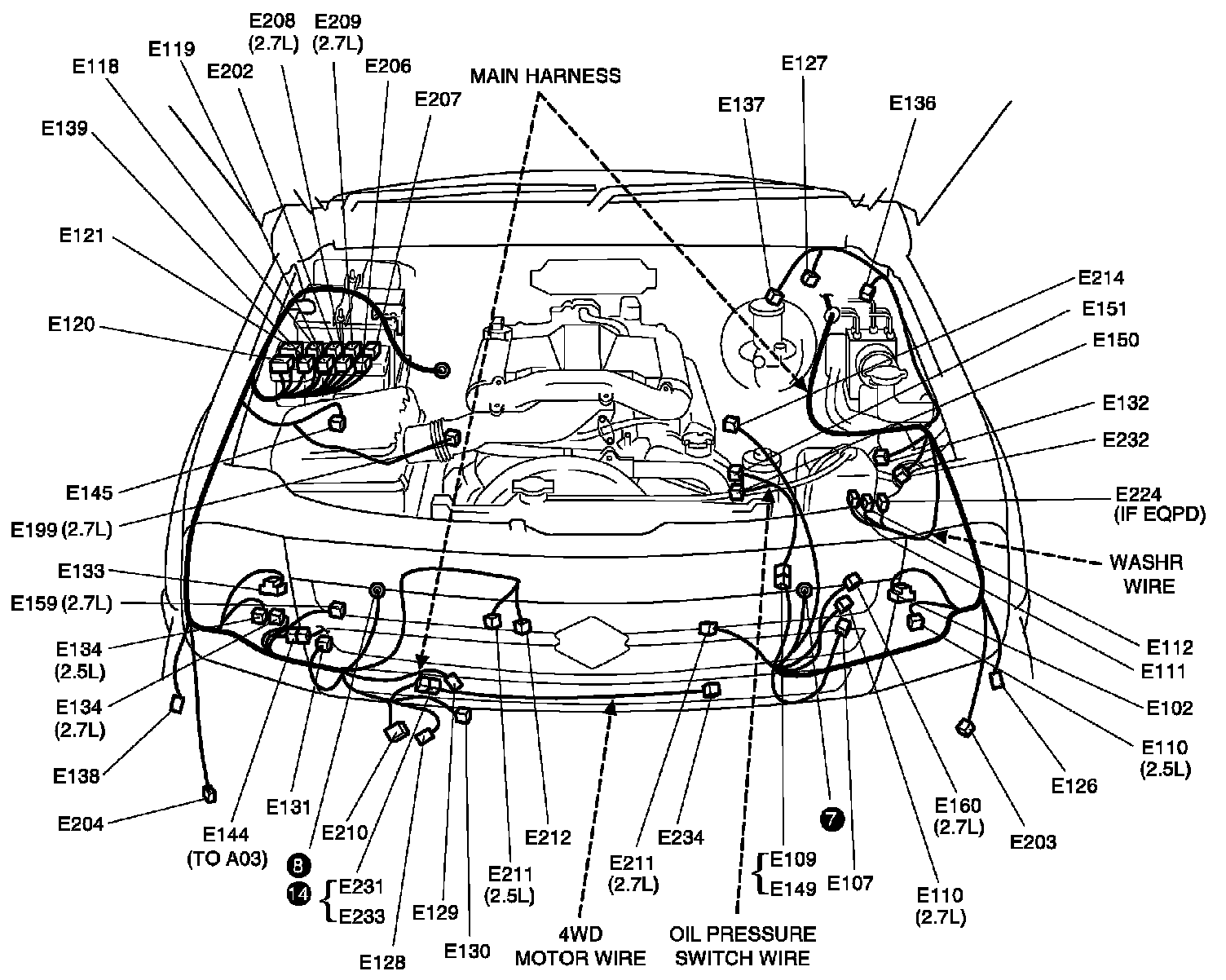

C:Engine Harness / E:Main Harness View:

C:Engine Harness / E:Main Harness Index:
