Suzuki Truck
>>
2005
>>
Grand Vitara 4WD V6-2.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C Connectors
C Connectors

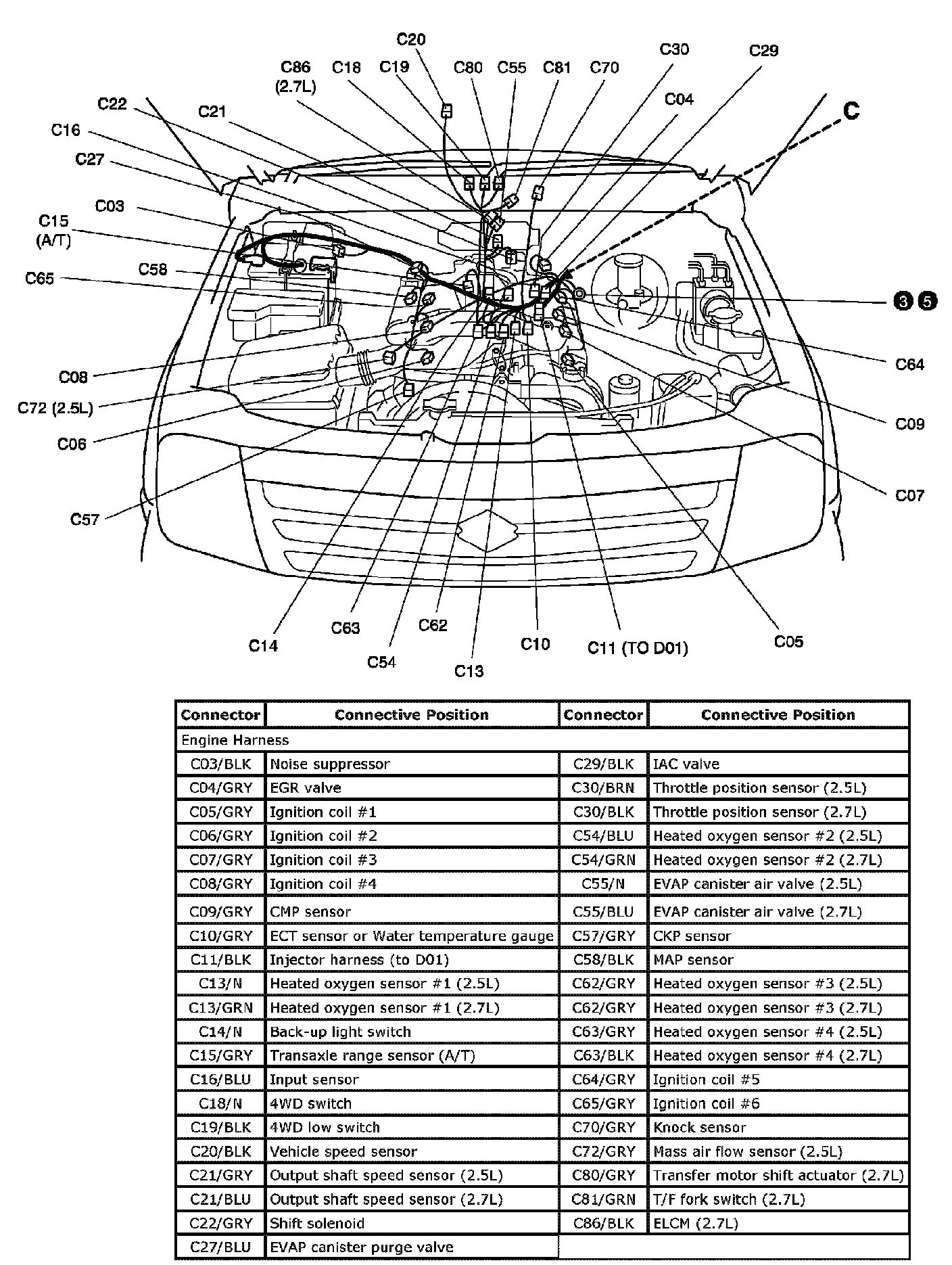

C: Engine harness:

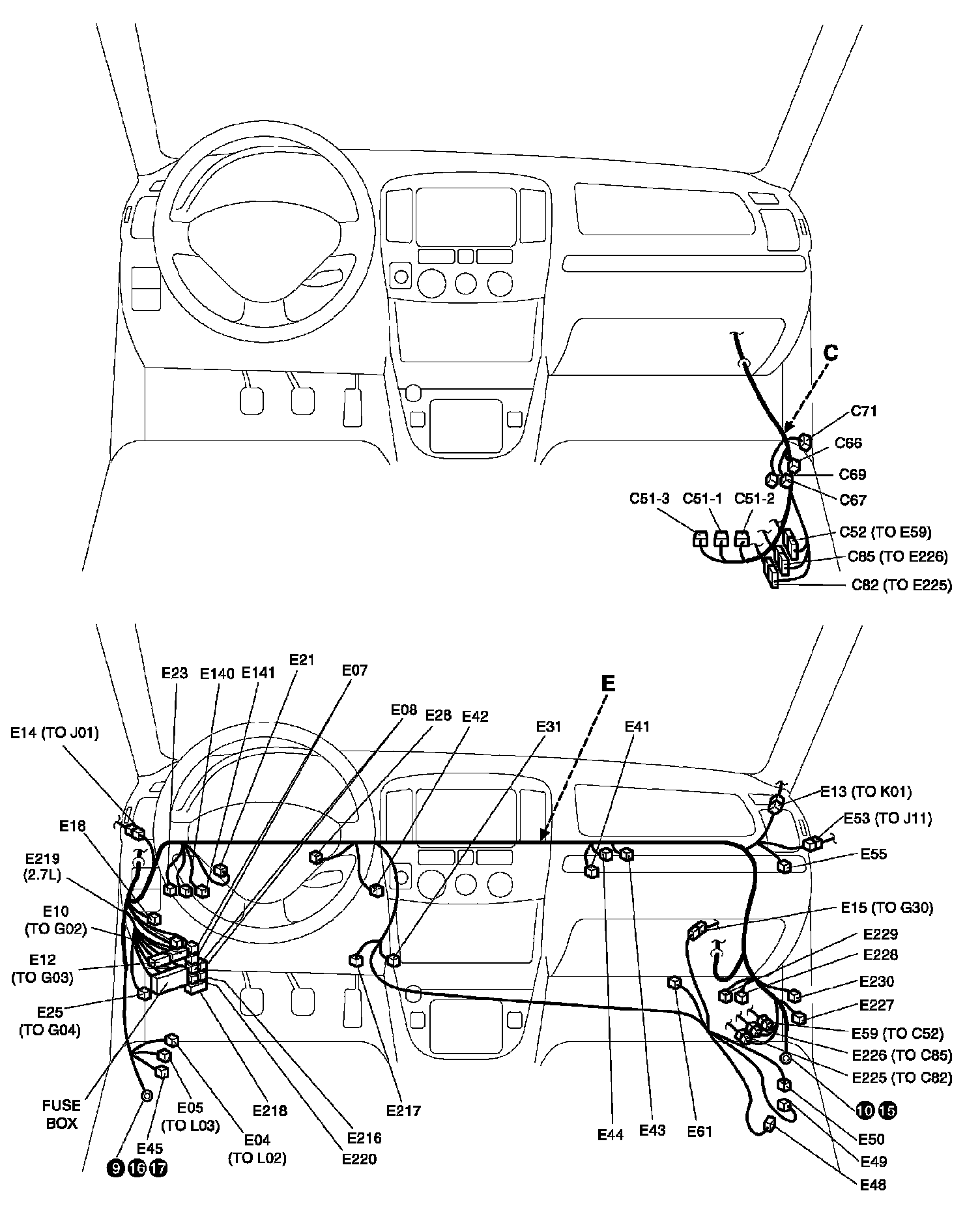

C:Engine Harness / E:Main Harness View:

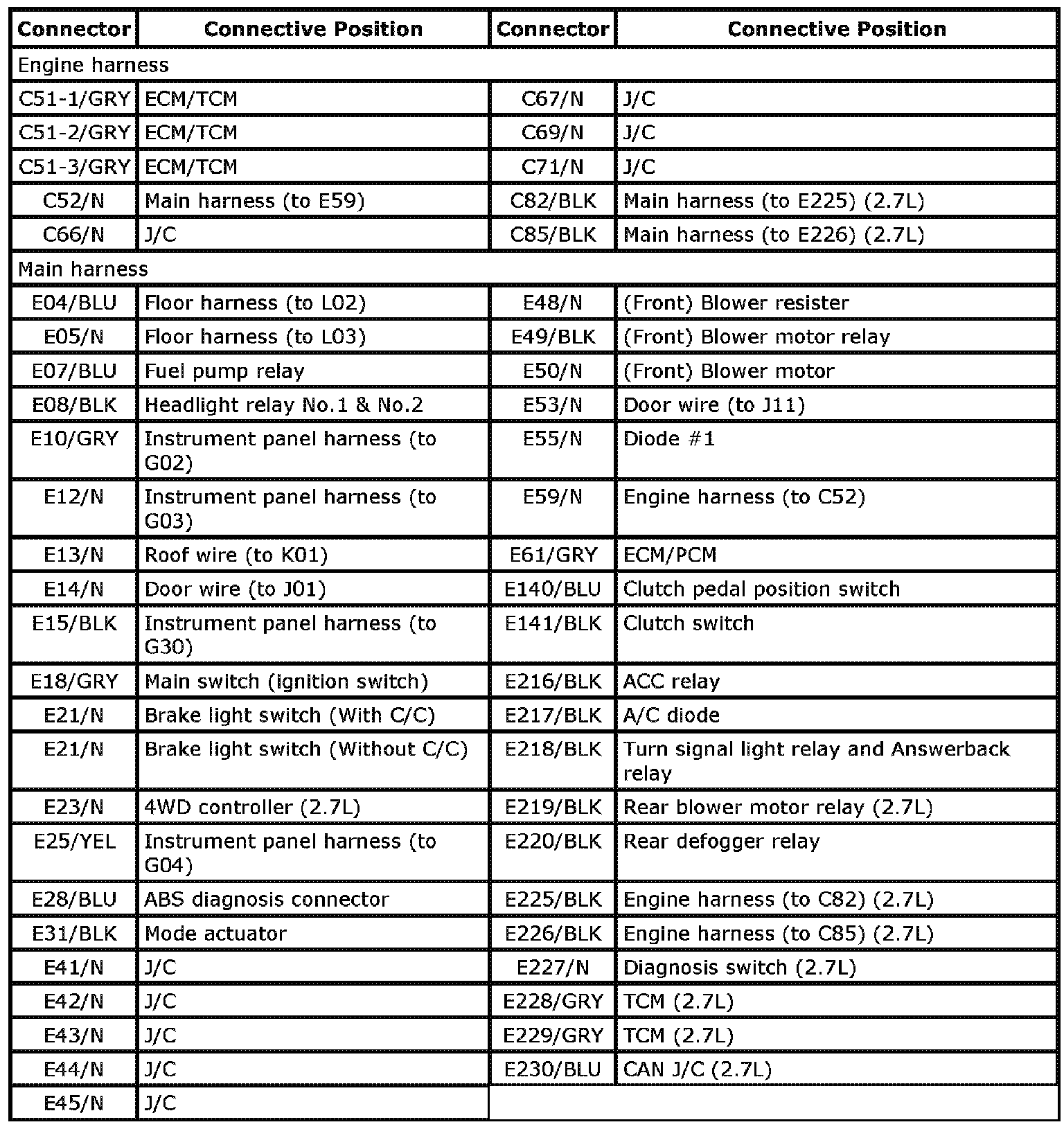

C:Engine Harness / E:Main Harness Index:
