Turn Signal Light Switch (In Lighting Switch) Inspection

Turn Signal Light Switch (in Lighting Switch) Inspection

Reference: Lighting Switch (Including Headlight Switch and Turn Signal Light Switch) Removal and Installation

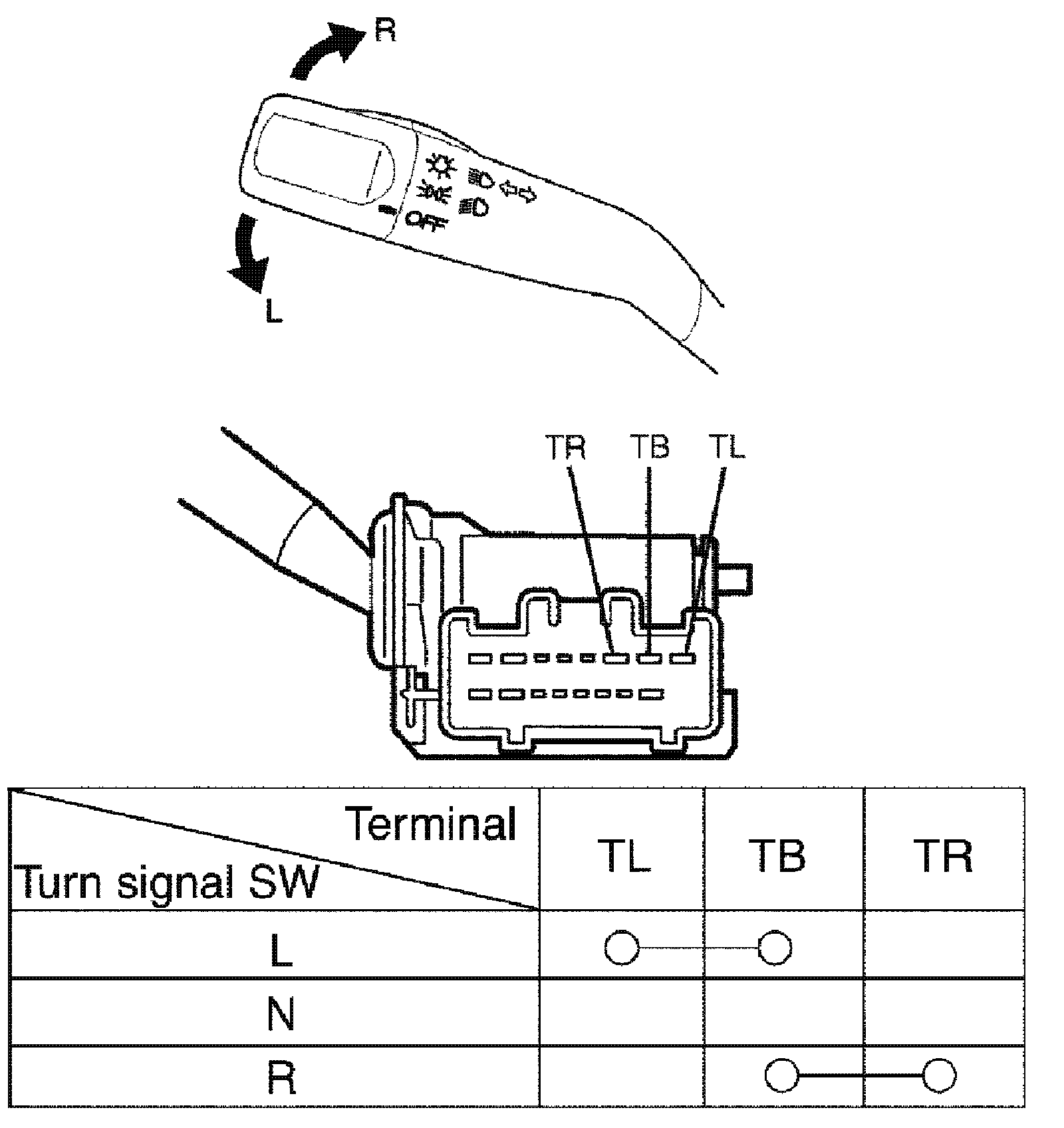

Check for continuity between terminals at each switch position as shown in the following figure. If check result is not as specified, replace.
