Fog/Driving Lamp Switch: Testing and Inspection
Front Fog Light Switch Inspection

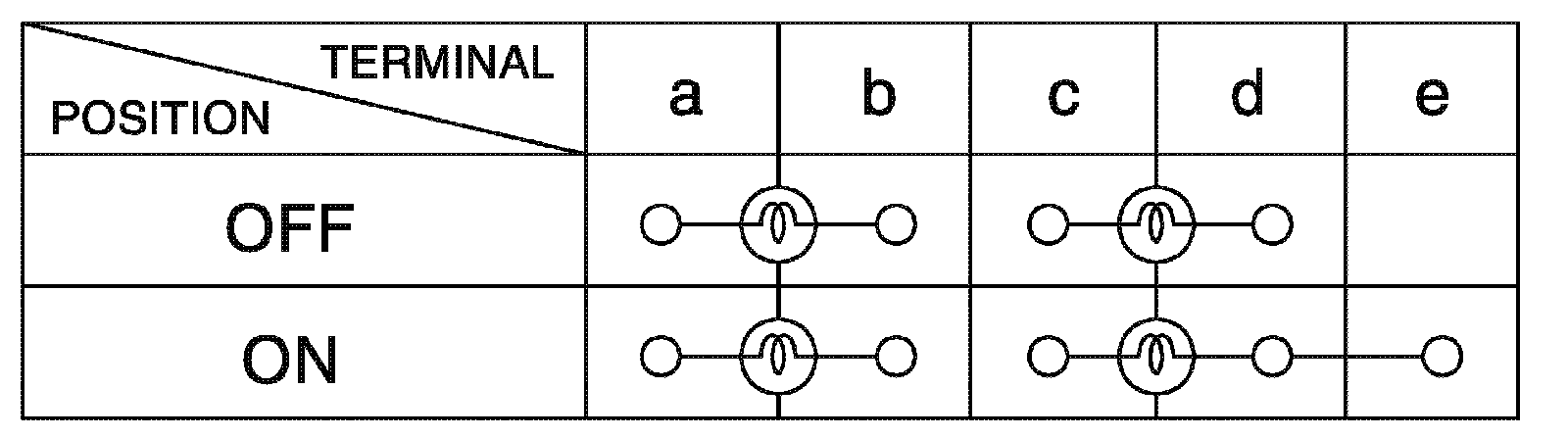

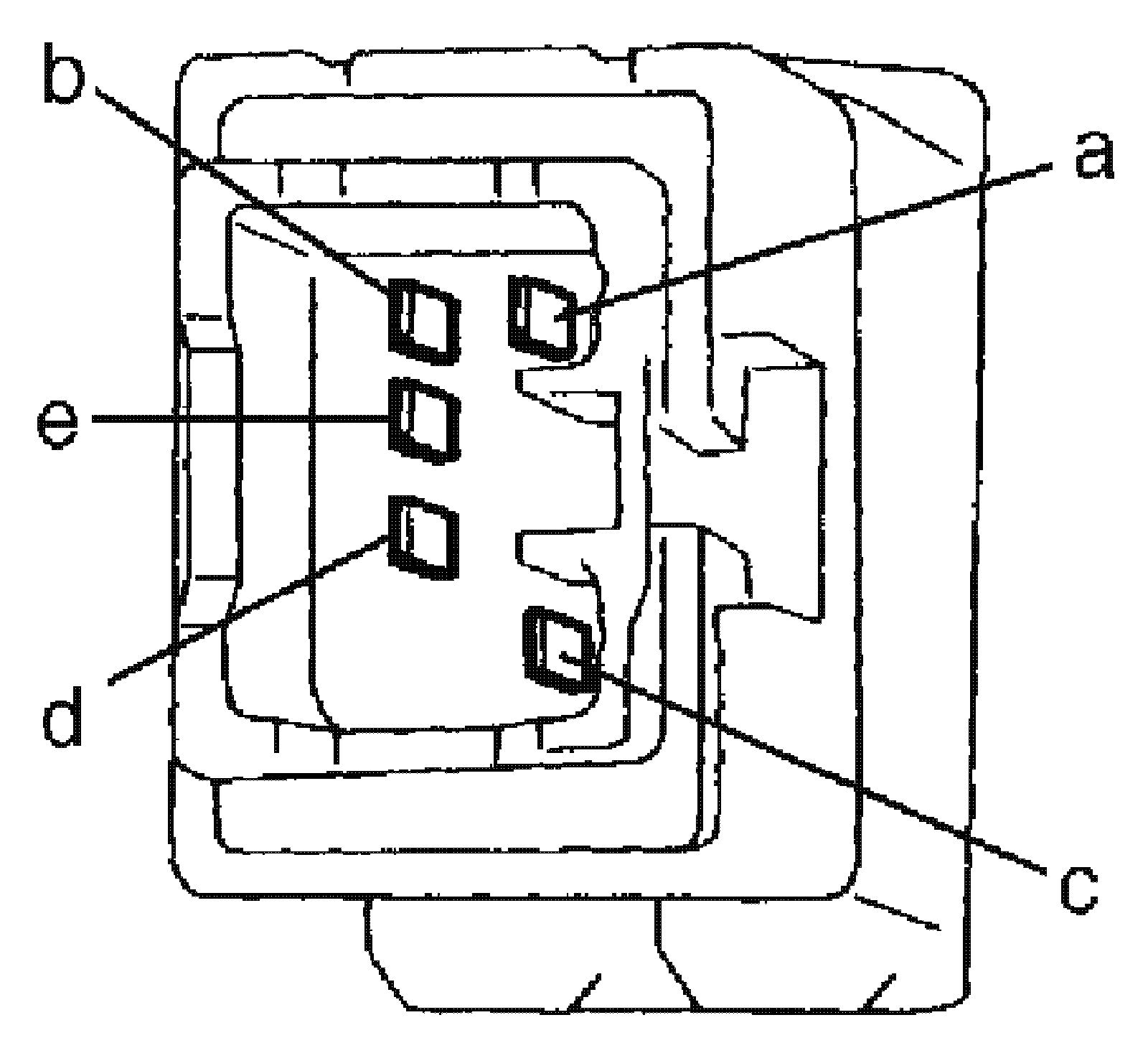

Check front fog light switch for each terminal-to-terminal continuity.
If check results are not specified, replace front fog light switch.
