Door Switch: Testing and Inspection

Door Switch Inspection

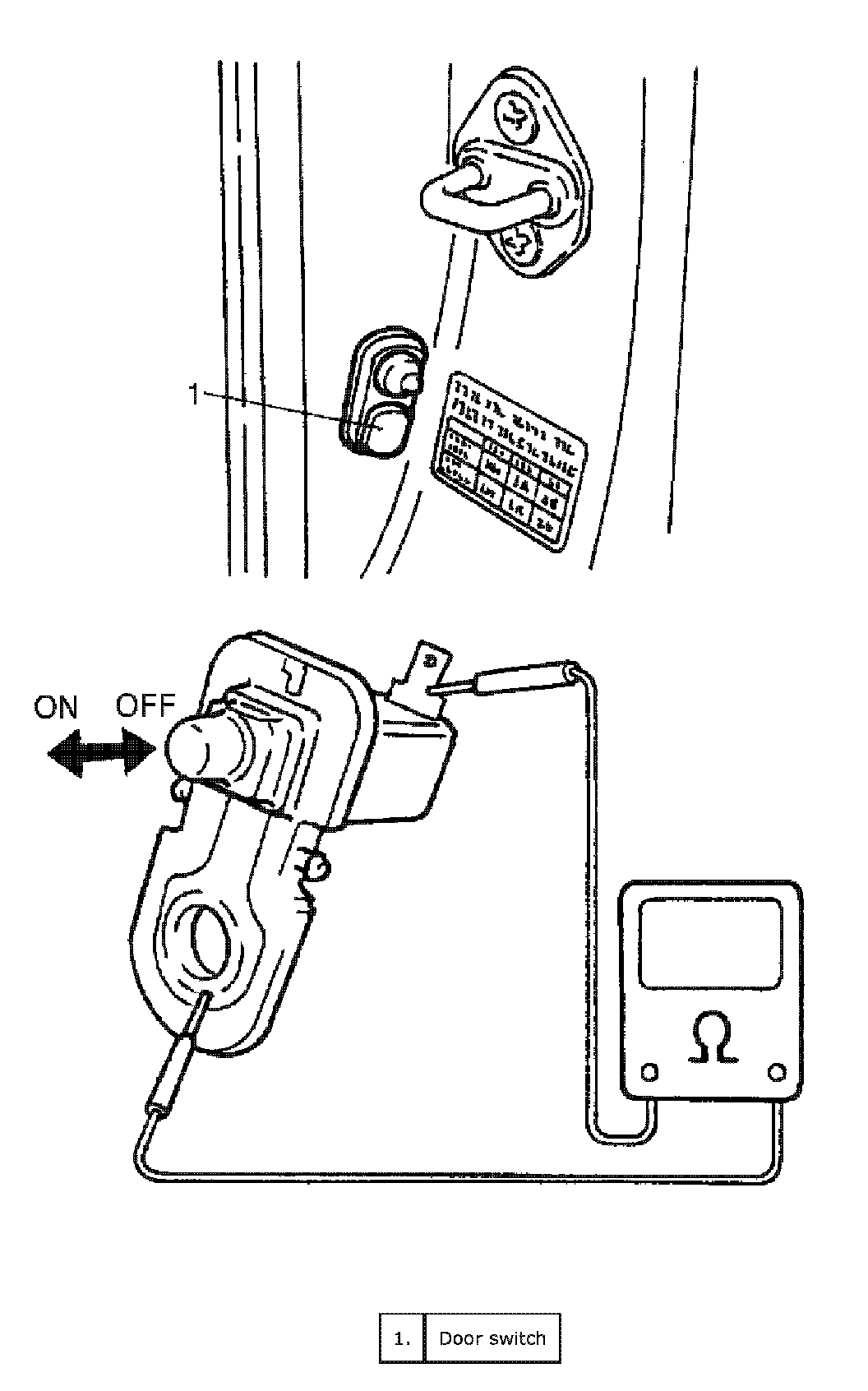

Use an ohmmeter to check switch for continuity. If found defective, replace switch.

Door switch specifications
OFF position (Door closed): No continuity
ON position (Door open): Continuity
