Component Tests and General Diagnostics

Brake Light Switch Inspection

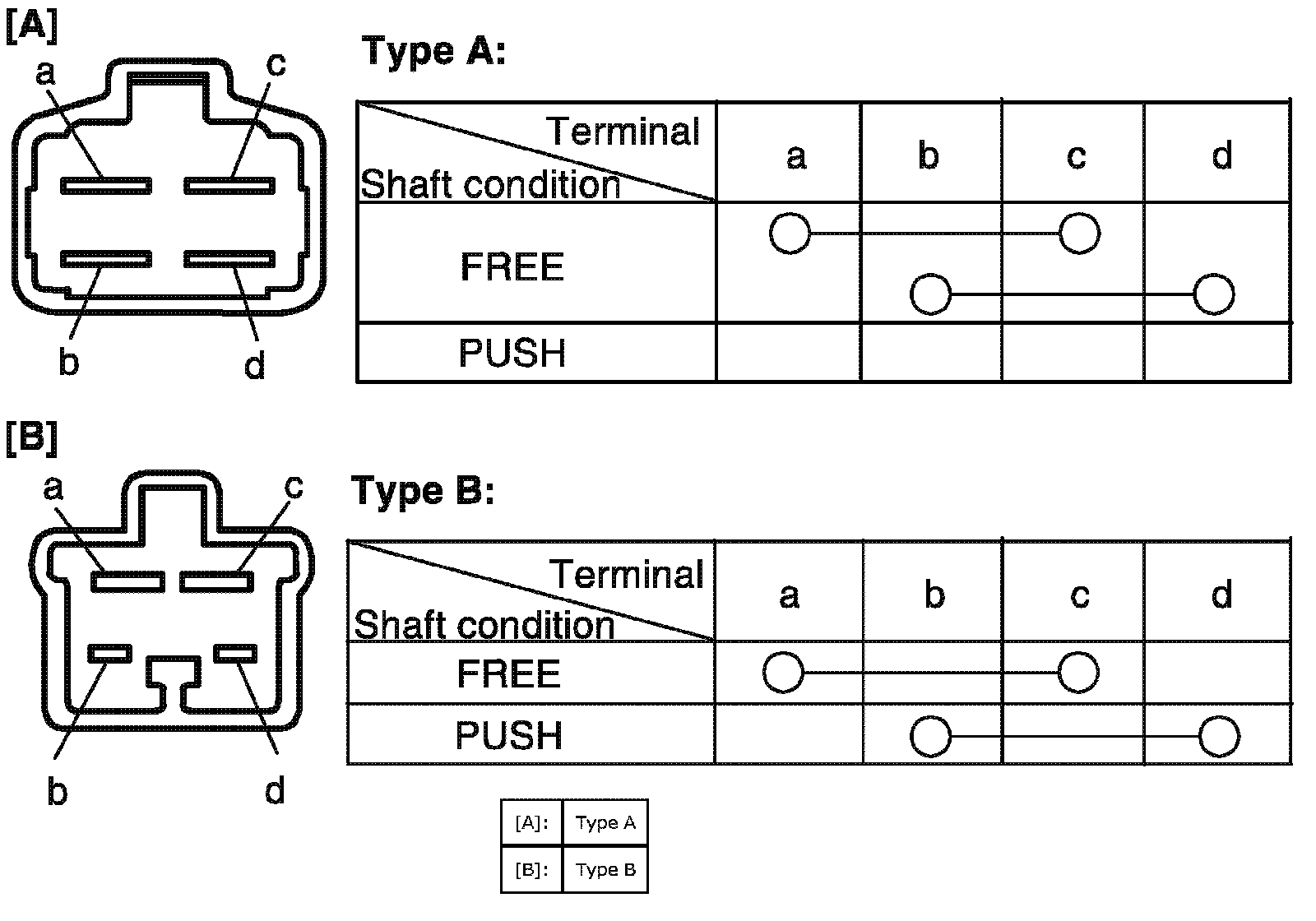

Check brake light switch for continuity under each shaft condition as shown.
If check result is not as specified, replace switch.
