Evaporator Case: Service and Repair

Cooling Unit (A/C Evaporator)

Disassembly

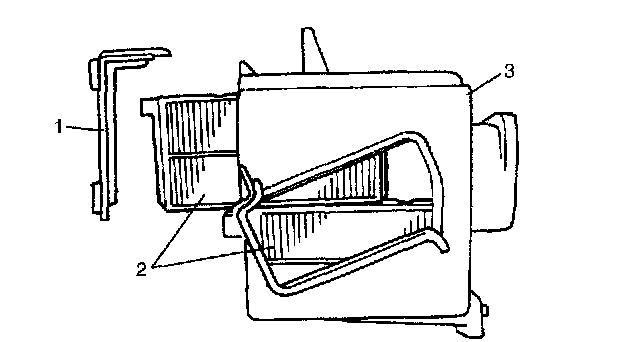

1. Remove air filter (2) from evaporator assembly (3) by removing filter cover (1) (If equipped).




2. Remove screws (1) (for G16 / J20 engine models [A]) or clamps (2) (for H25 engine model [B]) to separate evaporator upper and lower cases from each other.

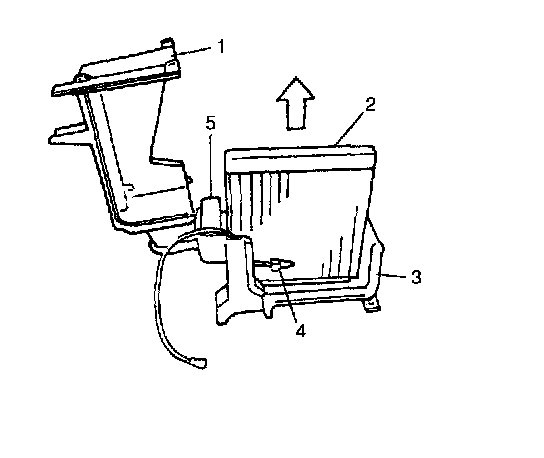

3. Remove upper case (1) and remove evaporator (2) from lower case (3).




4. Remove the following components from evaporator.
- Expansion valve (5)
- Thermistor (4)

Assembly
Reverse disassembly sequence to assemble evaporator, noting the following points.
- Install uniformly the evaporator packing to dash panel hole for expansion valve.

NOTE: When the thermistor removed, it should be reinstalled in original position.
If cooling unit or evaporator is replaced, pour 25 cc of refrigerating oil to compressor suction-side.
