A/C Compressor Relay Control System Check
A/C Compressor Relay Control System CheckWiring Diagram:
Wiring Diagram
Circuit Description
A/C Compressor relay is turned ON by ECM (PCM) when A/C signal inputted to ECM (PCM) and engine conditions are specified.

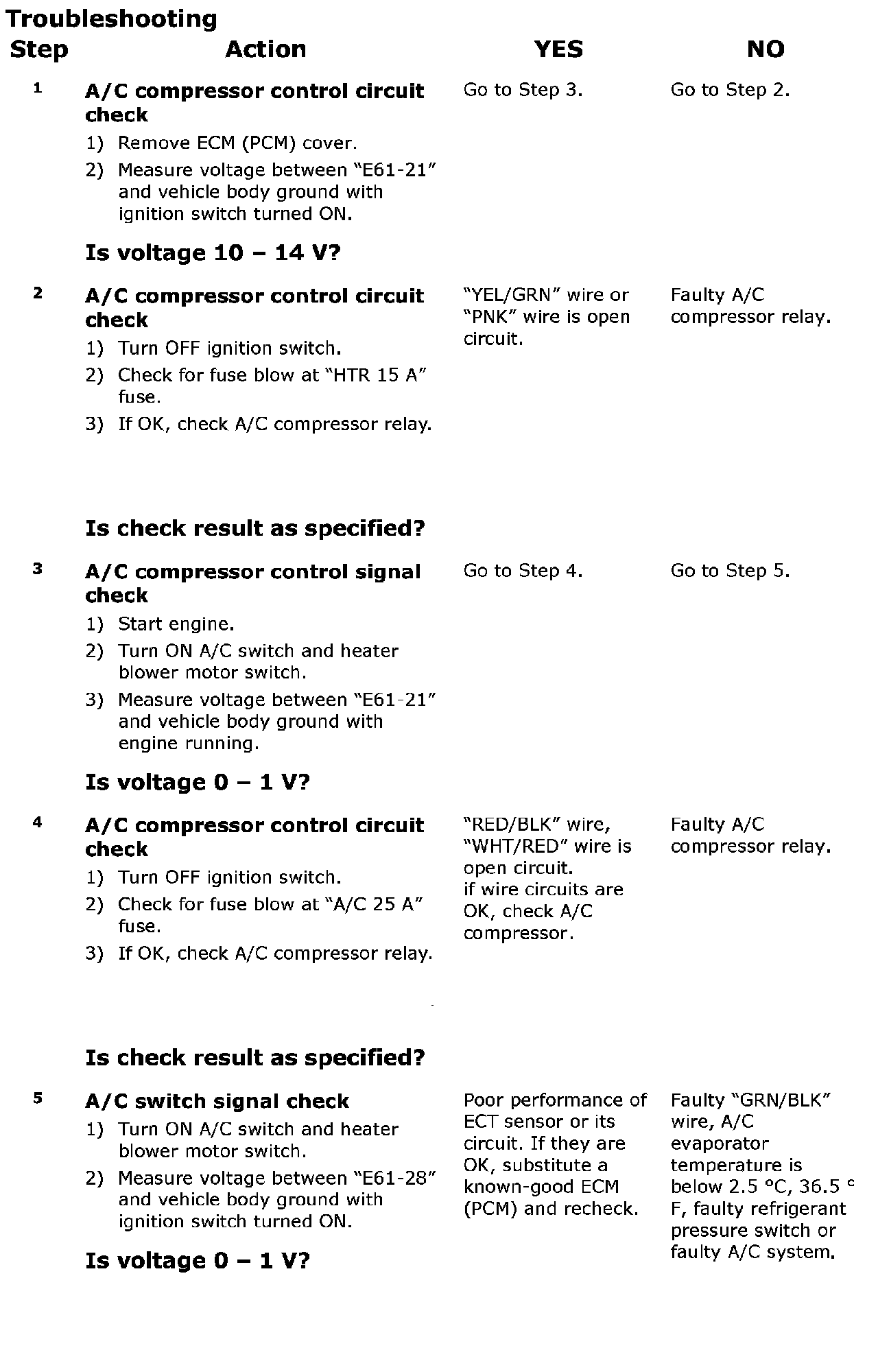

Step 1 - 5:
Troubleshooting
