Cabin Air Filter / Purifier: Testing and Inspection

Air Conditioning Filter Element
1. Remove air conditioning filter element from cooling unit referring to "Air Filter Element Removal and Installation:"
2. Check filter element for dirt. Replace excessively dirty element.

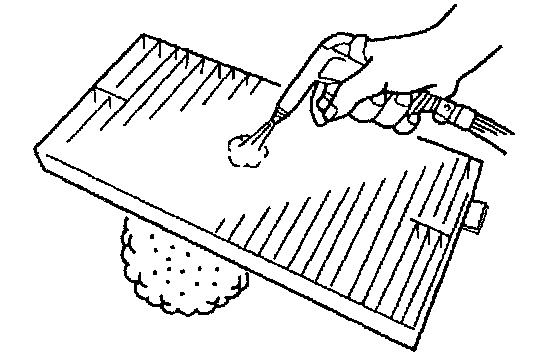

3. Blow off dust by compressed air from air outlet side of element.




4. Install filter element to cooling unit referring to "Air Filter Element Removal and Installation: ".
