Manual A/C System Wiring Circuit Diagram
Manual A/C System Wiring Circuit Diagram

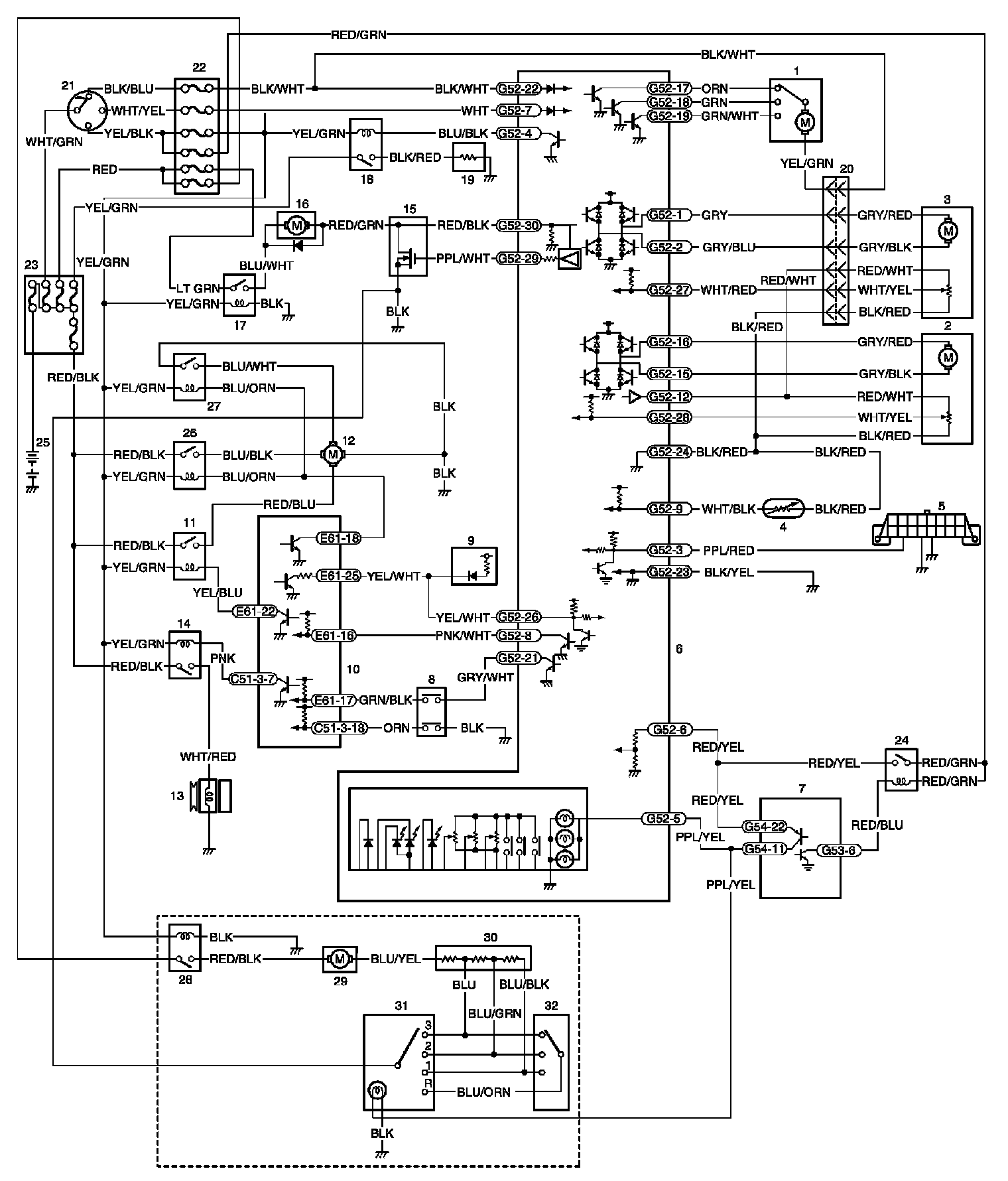

Manual A/C System Wiring Circuit Diagram:

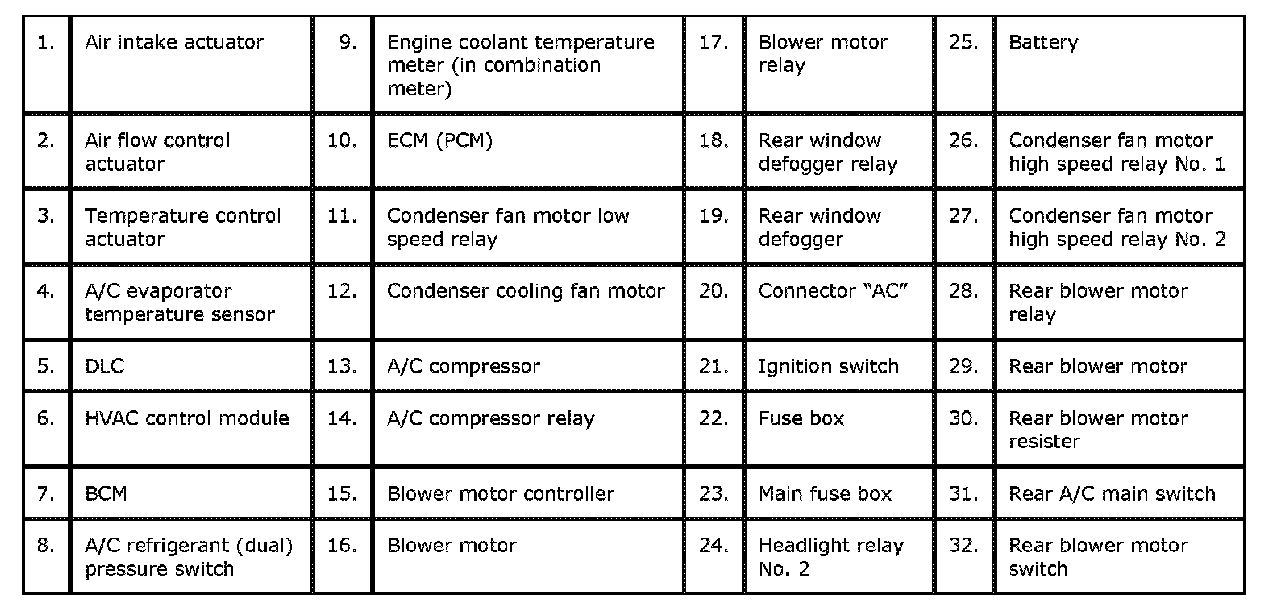

Manual A/C System Wiring Circuit Index:
