Automatic A/C System Wiring Circuit Diagram

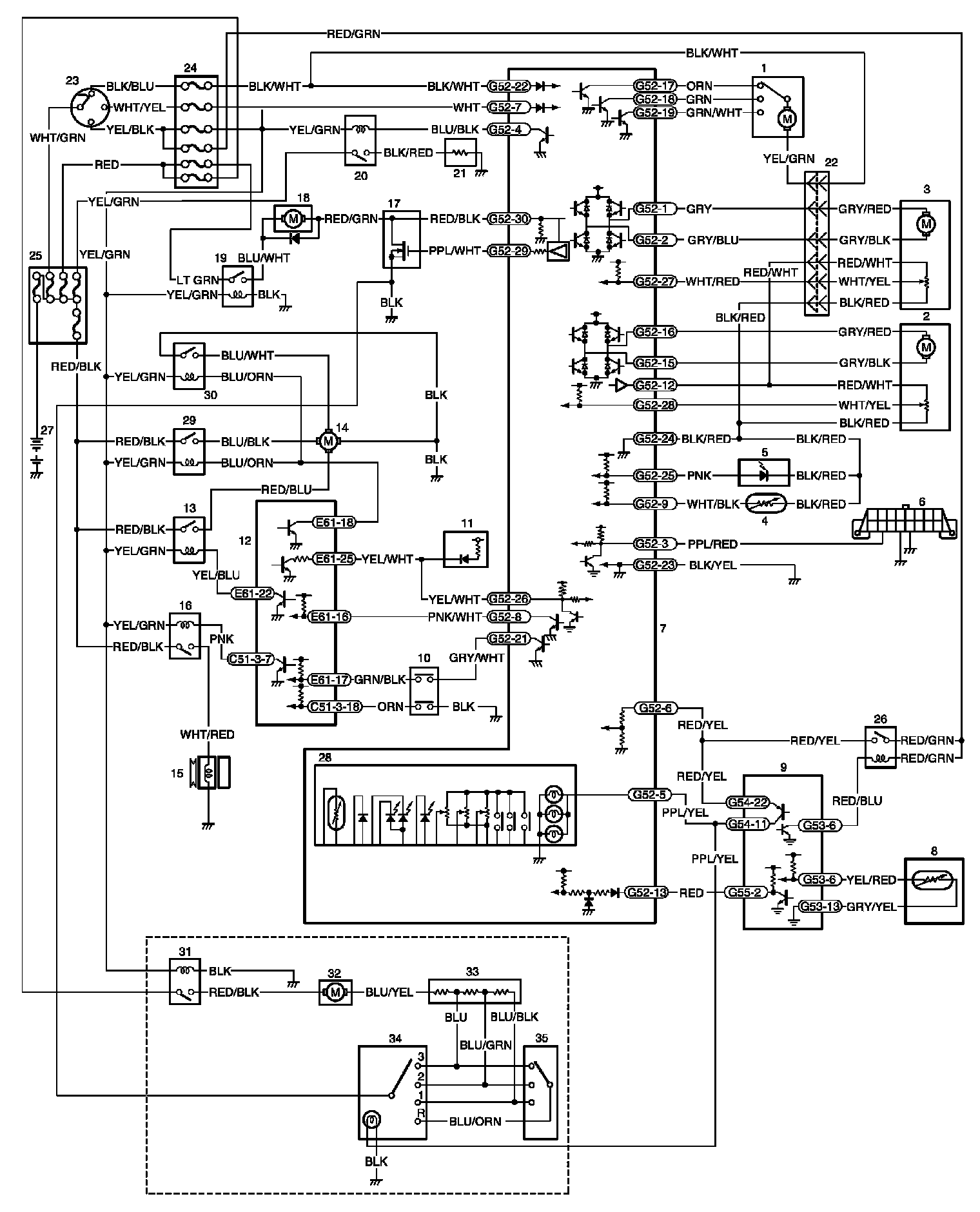

Automatic A/C System Wiring Circuit Diagram:

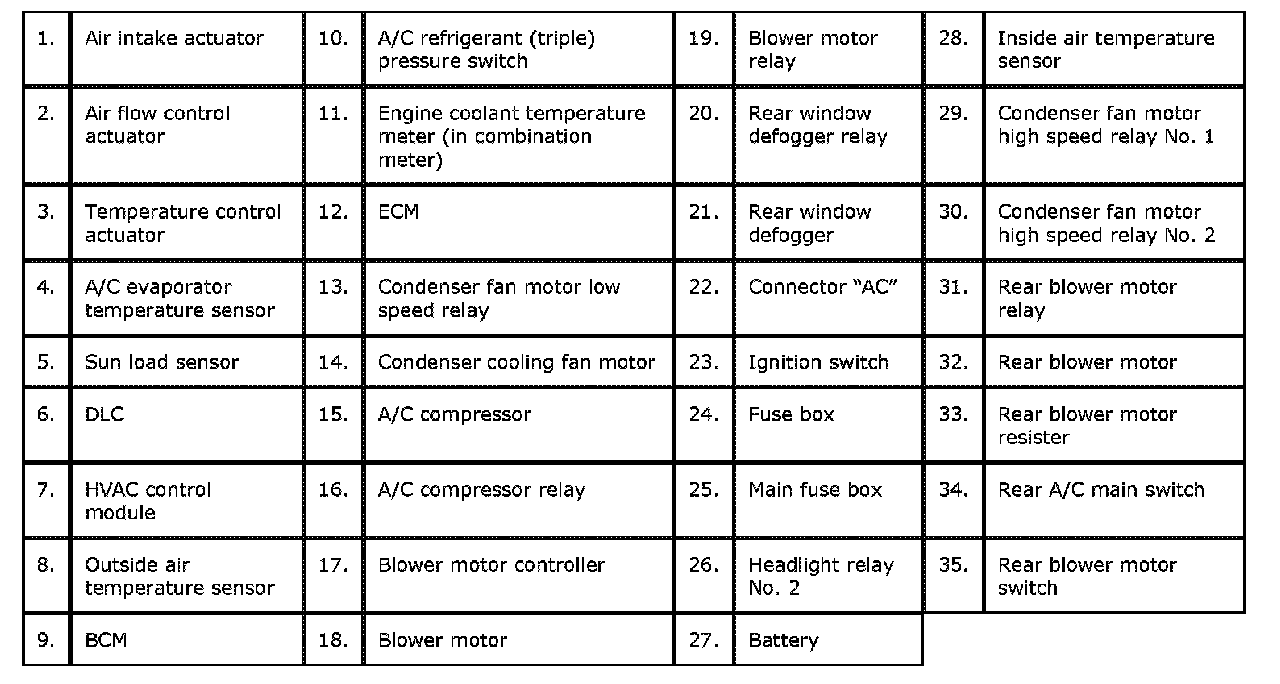

Automatic A/C System Wiring Circuit Index:
