Home
>>
Suzuki Truck
>>
2005
>>
Grand Vitara 4WD V6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
E Connectors
E04 - E55:

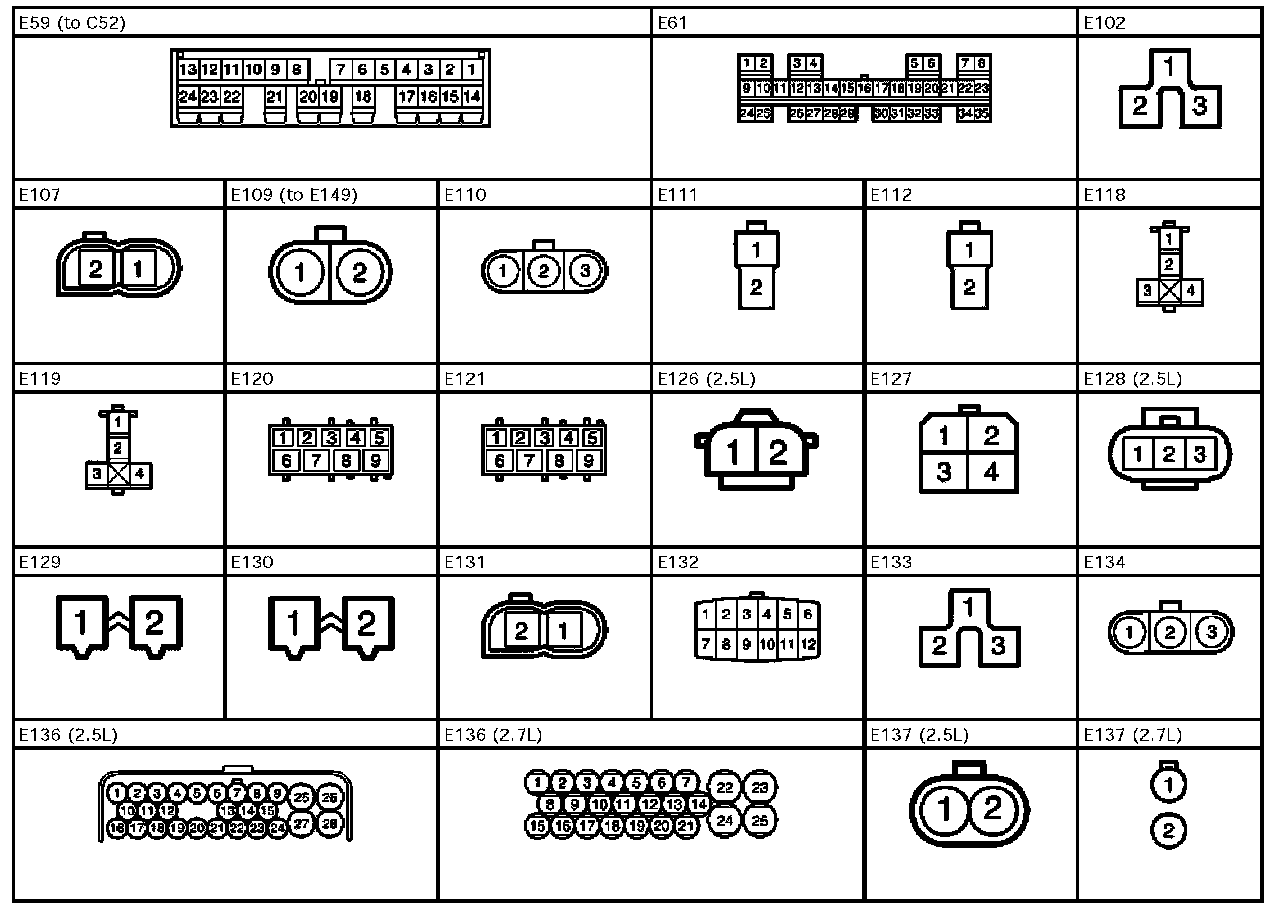

E59 - E137:

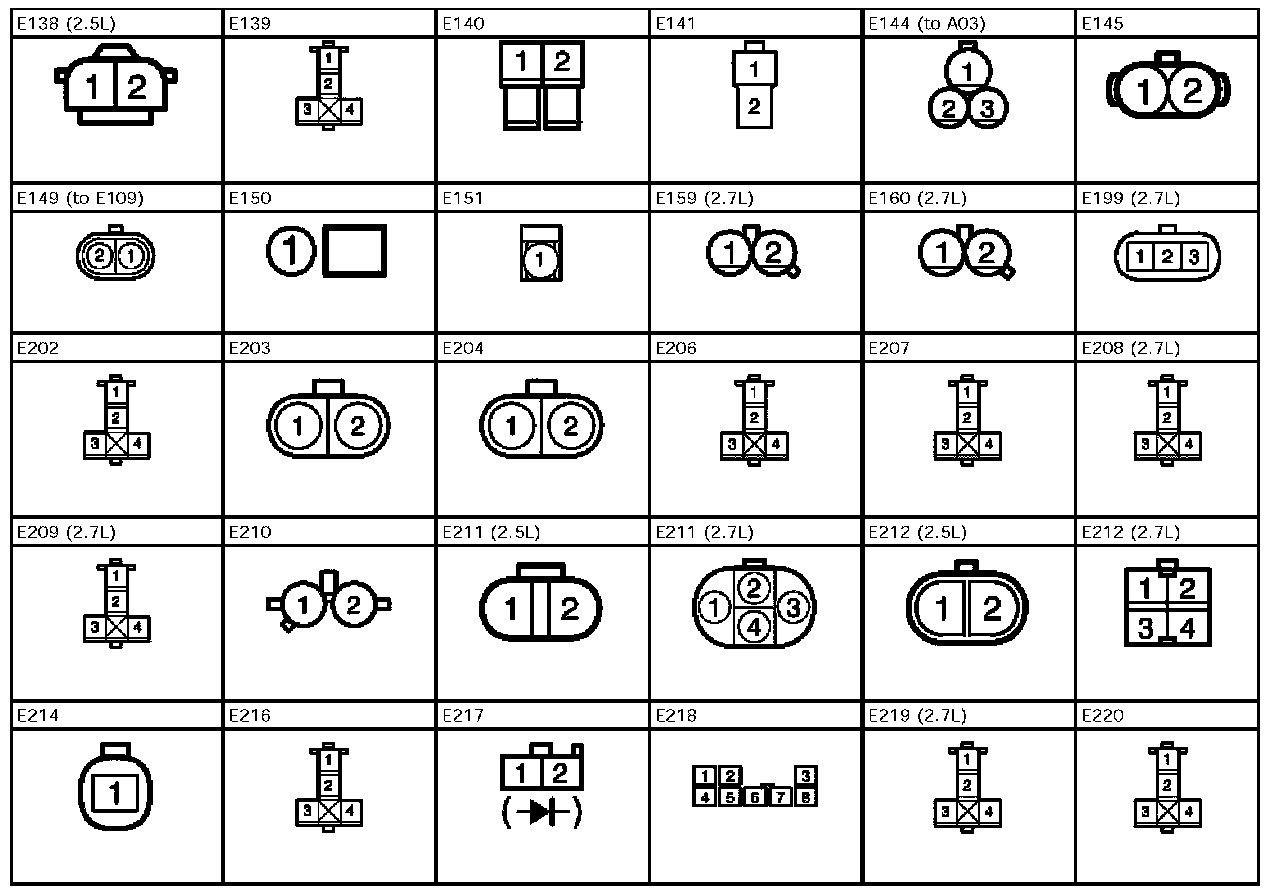

E138 - E220:

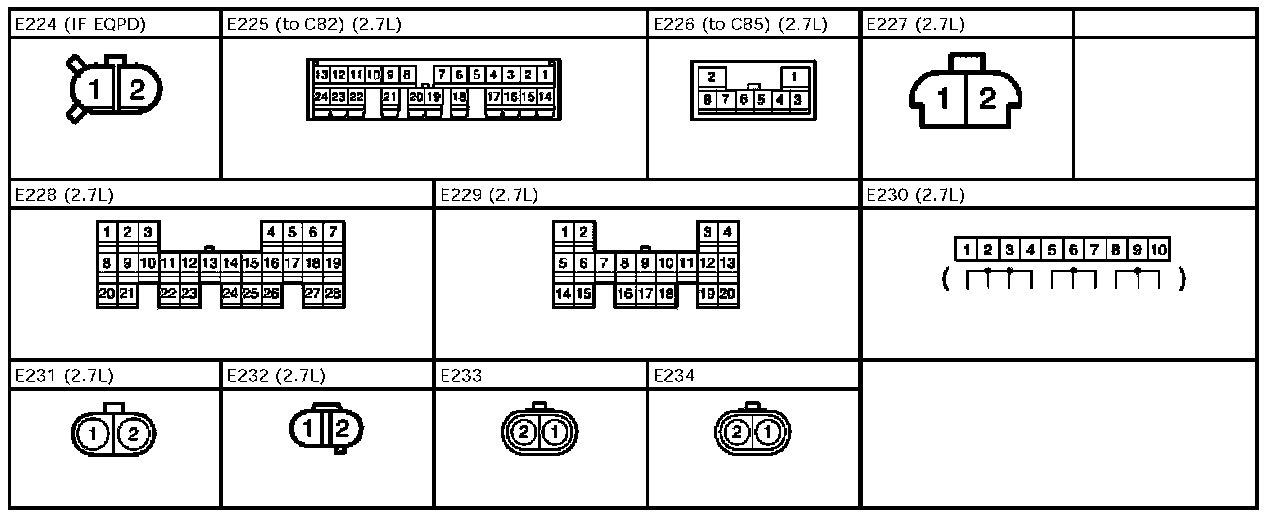

E224 - E234:
