Brake Shoe: Service and Repair
Removal1. Remove brake drum.
WARNING: Use special care when installing brake shoe return spring. Failure in its proper installation may allow it to spring back and cause personal injury.

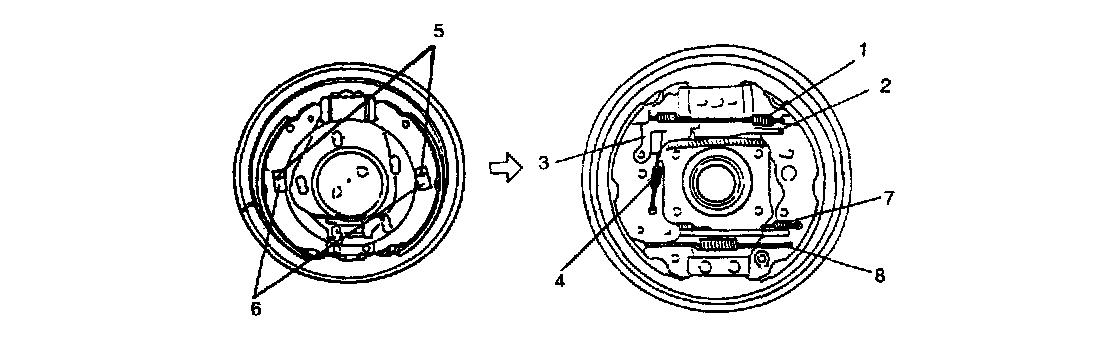

2. Remove shoe hold down springs (6) by turning shoe hold down pins (5).
3. Remove upper shoe return spring (1), struts, adjuster (7), adjuster lever (3) and springs (4).

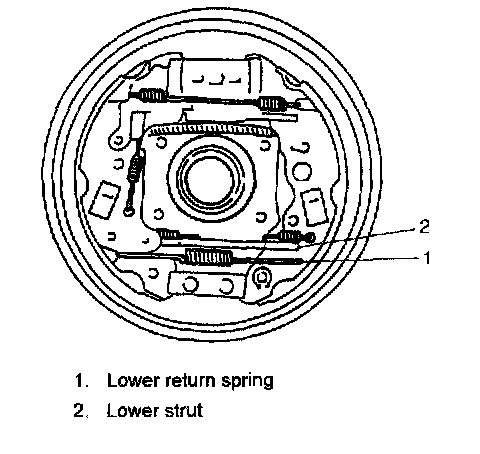

4. Remove brake shoes and lower shoe return spring (8).

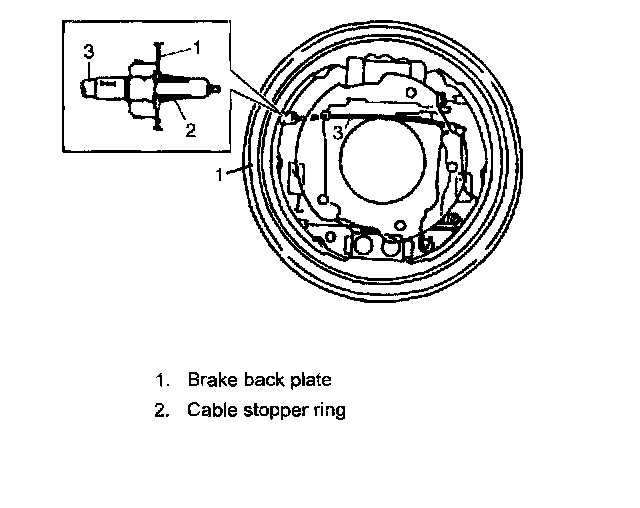

5. Remove brake shoes and disconnect parking brake cable (3) from parking brake shoe lever.

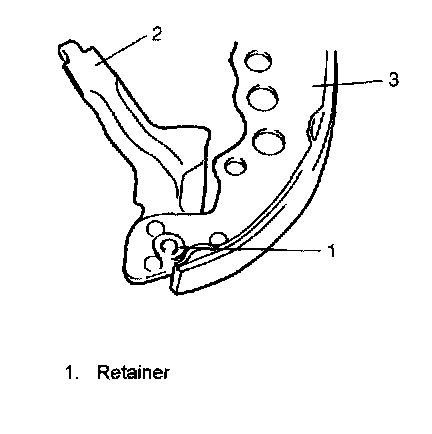

6. Remove parking brake shoe lever (2) from brake shoe (3).
Installation
1. Assemble parts as shown in reverse order of removal.

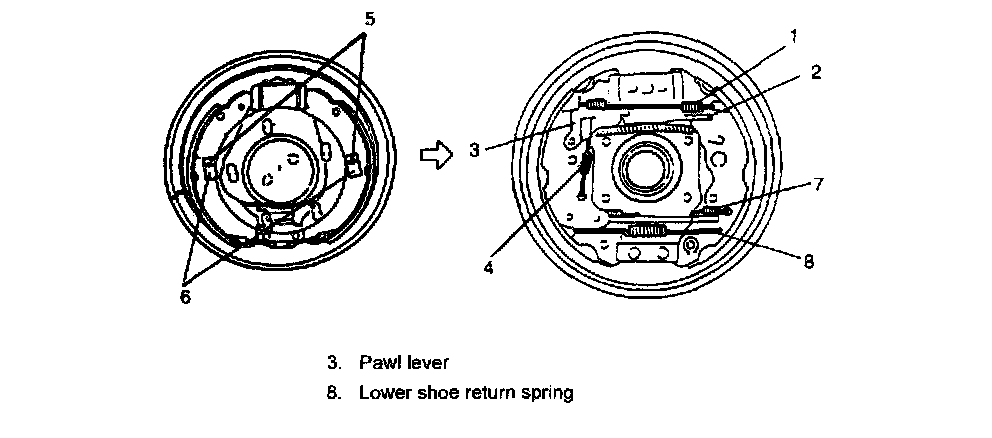

2. Install shoe hold down springs (6) by pushing them down in place and turning hold down pins (5).
3. Install adjuster (2) and upper shoe return spring (1).
4. Install adjuster lever, adjuster spring (4) and strut spring (7).
5. For procedure hereafter, refer to Brake Drum; Service and Repair.
