Removal and Installation

Removal and Installation

NOTE: For identification of the brake caliper type, see maker name or mark on brake caliper as shown in the figure.

Removal
1. Hoist vehicle and remove wheel.

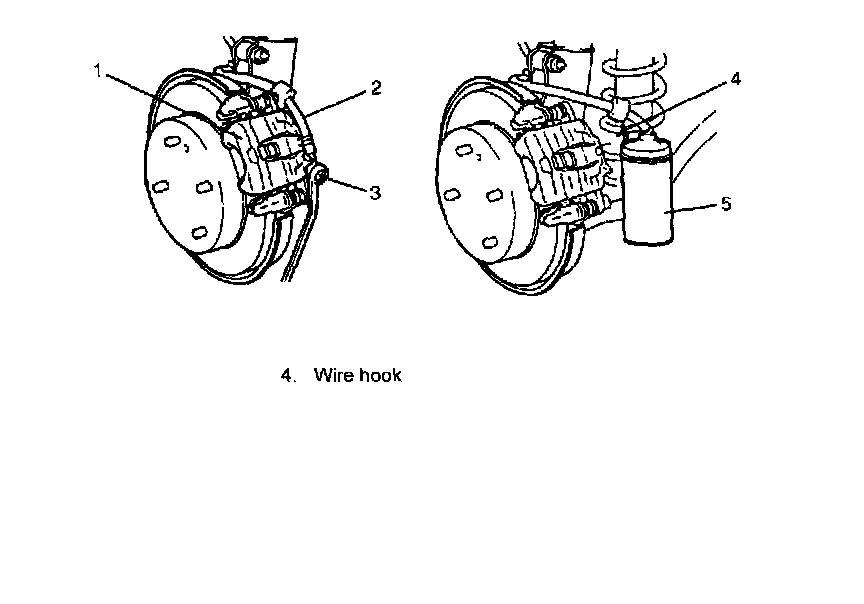

2. Remove brake flexible hose mounting bolt (3) from caliper (1). As this will allow fluid to flow out of hose (2), have a container (5) ready beforehand.
3. Remove caliper pin bolts (1).

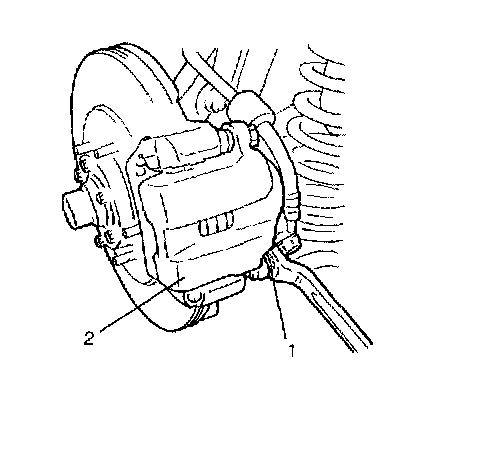

4. Remove caliper (2).

Installation
1. Install caliper to caliper carrier.





2. Torque caliper pin bolts (1) to specifications.

NOTE: Make sure that boots are fit into groove securely.

Tightening torque

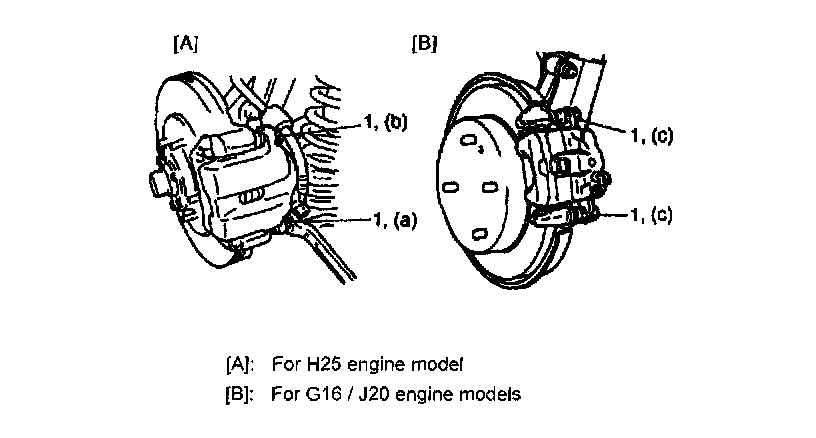

Caliper pin bolt (for H25 engine model) (a): 50 Nm (5.0 kgf-m, 36.5 ft. lbs.)
Caliper pin bolt (for H25 engine model) (b): 85 Nm (8.5 kgf-m, 61.5 ft. lbs.)
Caliper pin bolt (for G16/J20 engine models) (c): 27 Nm (2.7 kgf-m, 20.0 ft. lbs.)





3. Install brake flexible hose as shown and torque hose mounting bolt (1) to specification.
Tightening torque

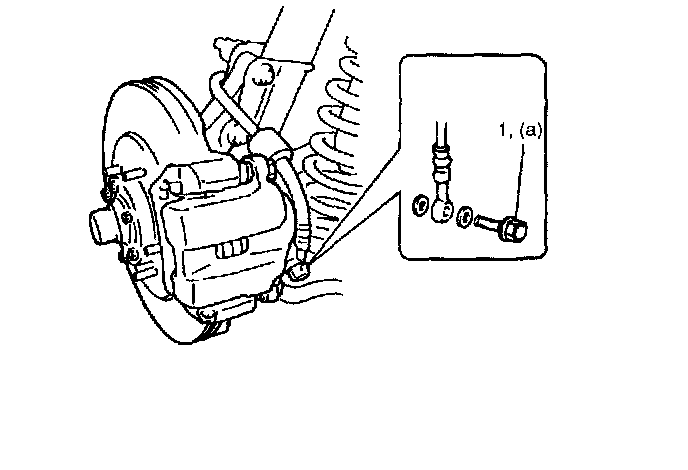

Flexible hose bolt (a): 23 Nm (2.3 kgf-m, 17.0 ft. lbs.)





4. Torque wheel nuts to specification.

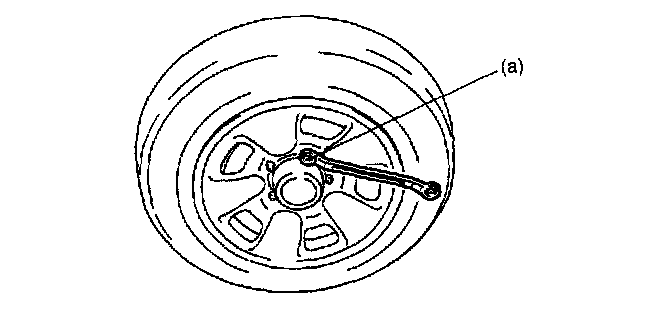

Tightening torque Wheel nut (a): 100 Nm (10.0 kgf-m, 72.5 ft. lbs.)
5. After completing installation, fill reservoir with brake fluid and bleed brake system. Perform brake test and check each installed part for oil leakage.
