Rear

Rear Seat Removal and Installation for H25 Engine Model

Reference: Rear Seat Components for H25 Engine Model

Removal
1. Remove 4 mounting bolt to remove seat cushion.
2. Remove 4 mounting bolts to remove seat back.
3. Disassemble and repair seat as necessary.

Installation




Reverse removal procedure to install rear seat.

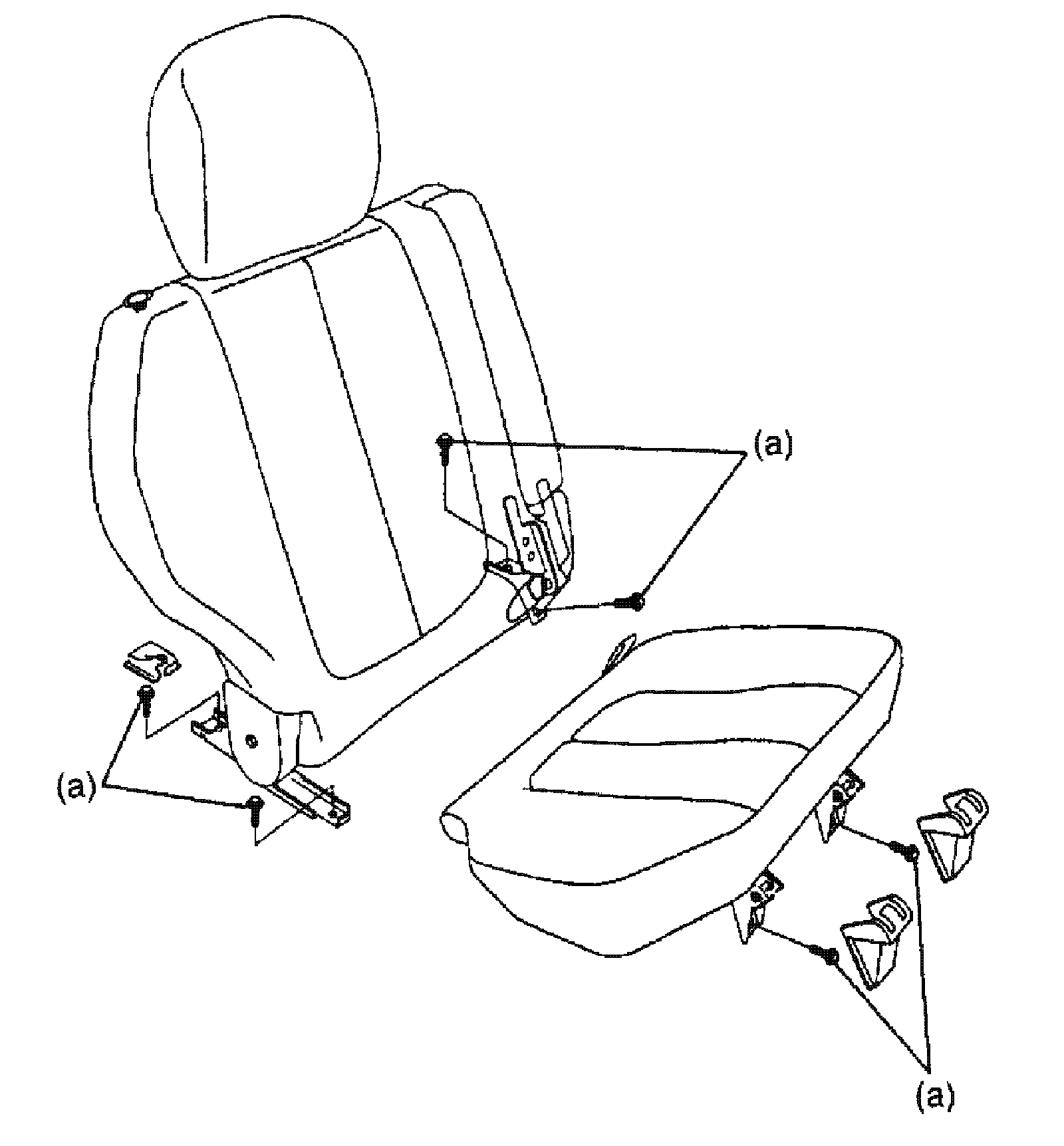

- Torque to specifications as shown in the figure.

Tightening torque
Rear seat mounting bolt a: 35 N.m (3.5 kg.m, 25.5 lb.ft)
