P0617

DTC P0617: Starter Relay Circuit Low / High

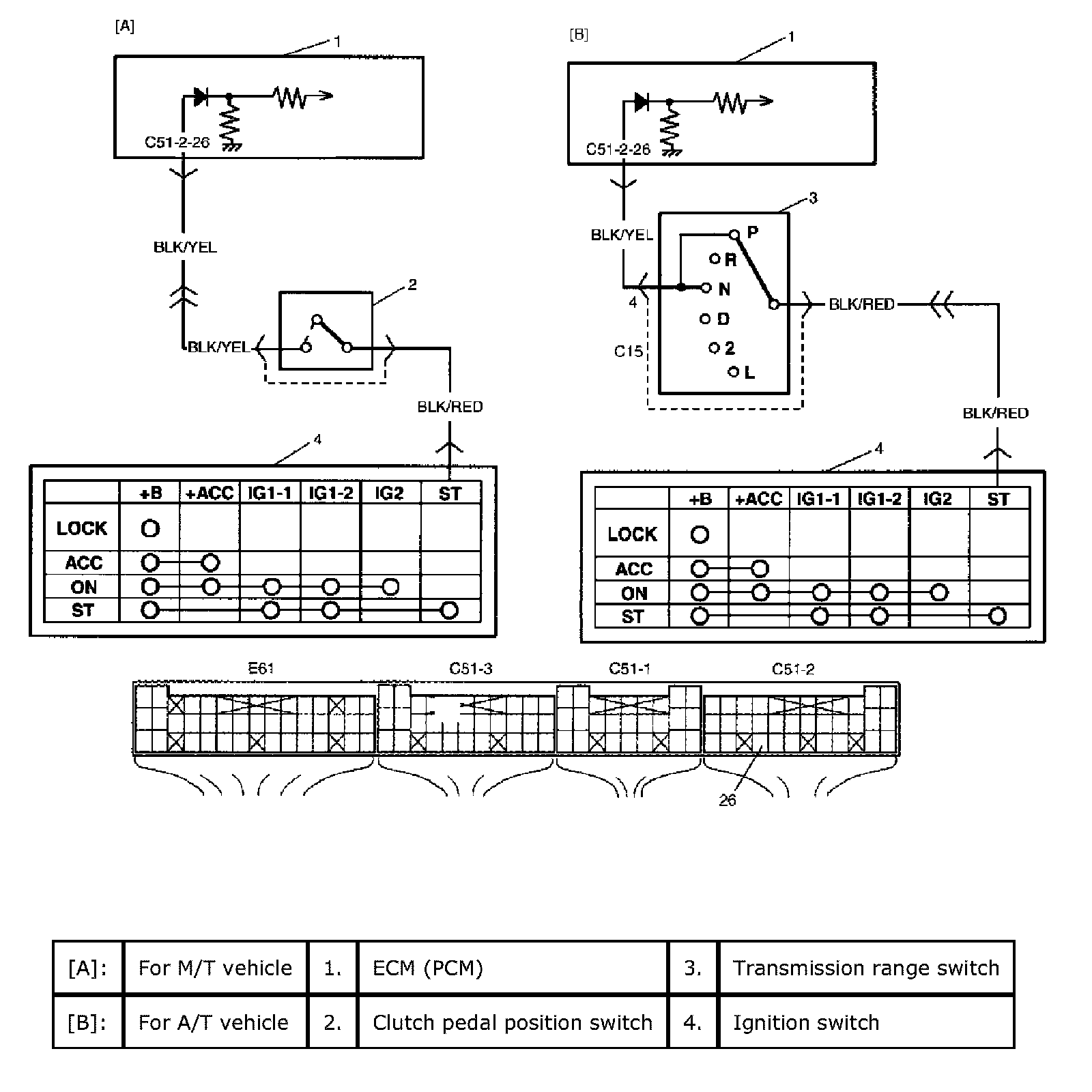

Wiring Diagram:

Wiring Diagram

Circuit Description
Engine start signal is sent from engine starter circuit while engine cranking.

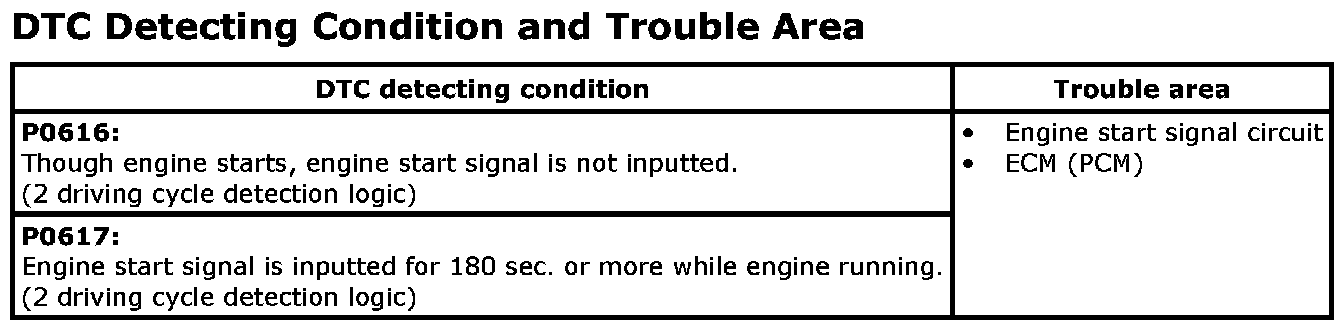

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 5 min.
4. Check DTC and pending DTC by using scan tool.

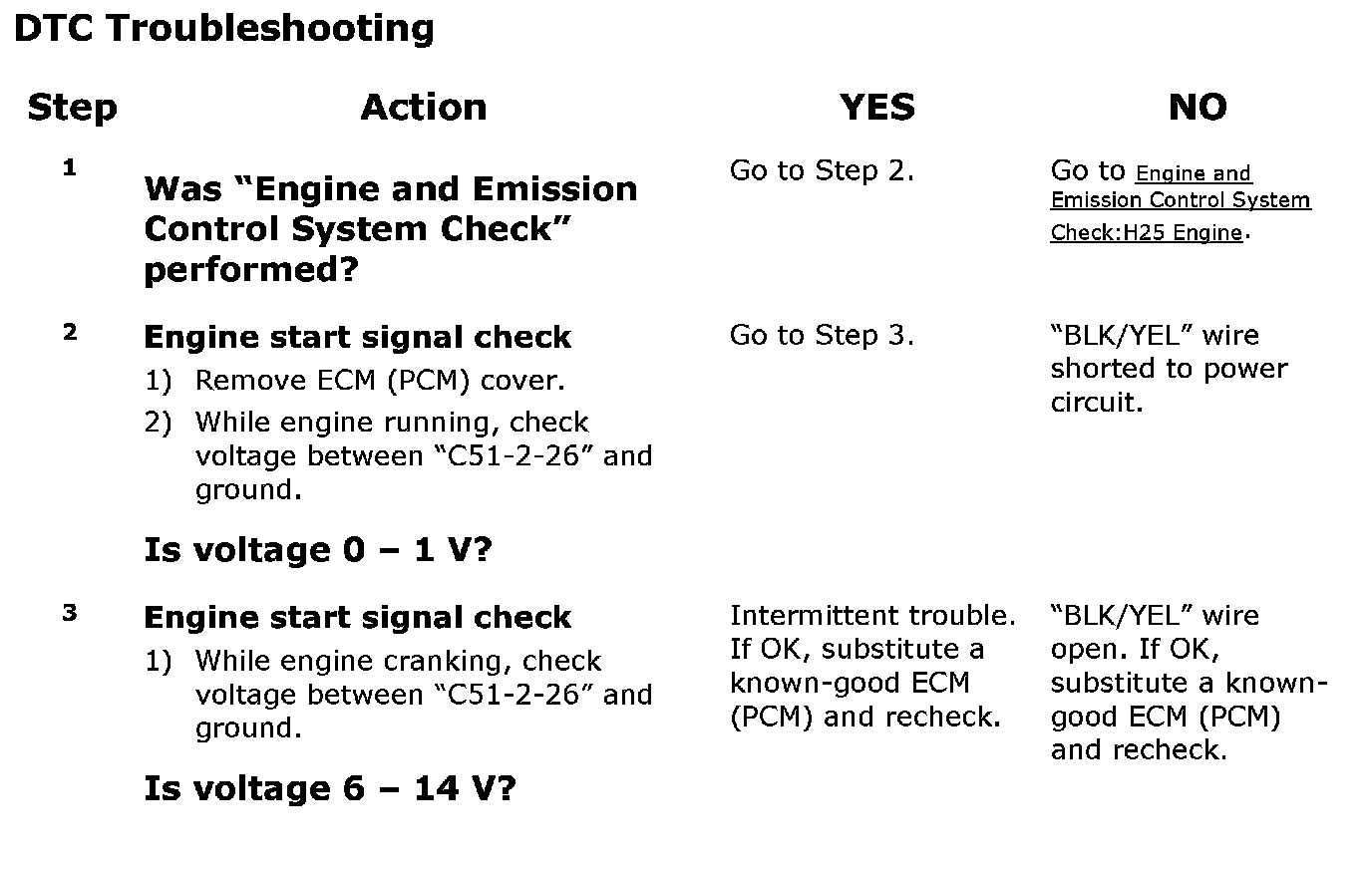

Step 1 - 3:

DTC Troubleshooting
