P0500

DTC P0500: Vehicle Speed Sensor (VSS) Malfunction

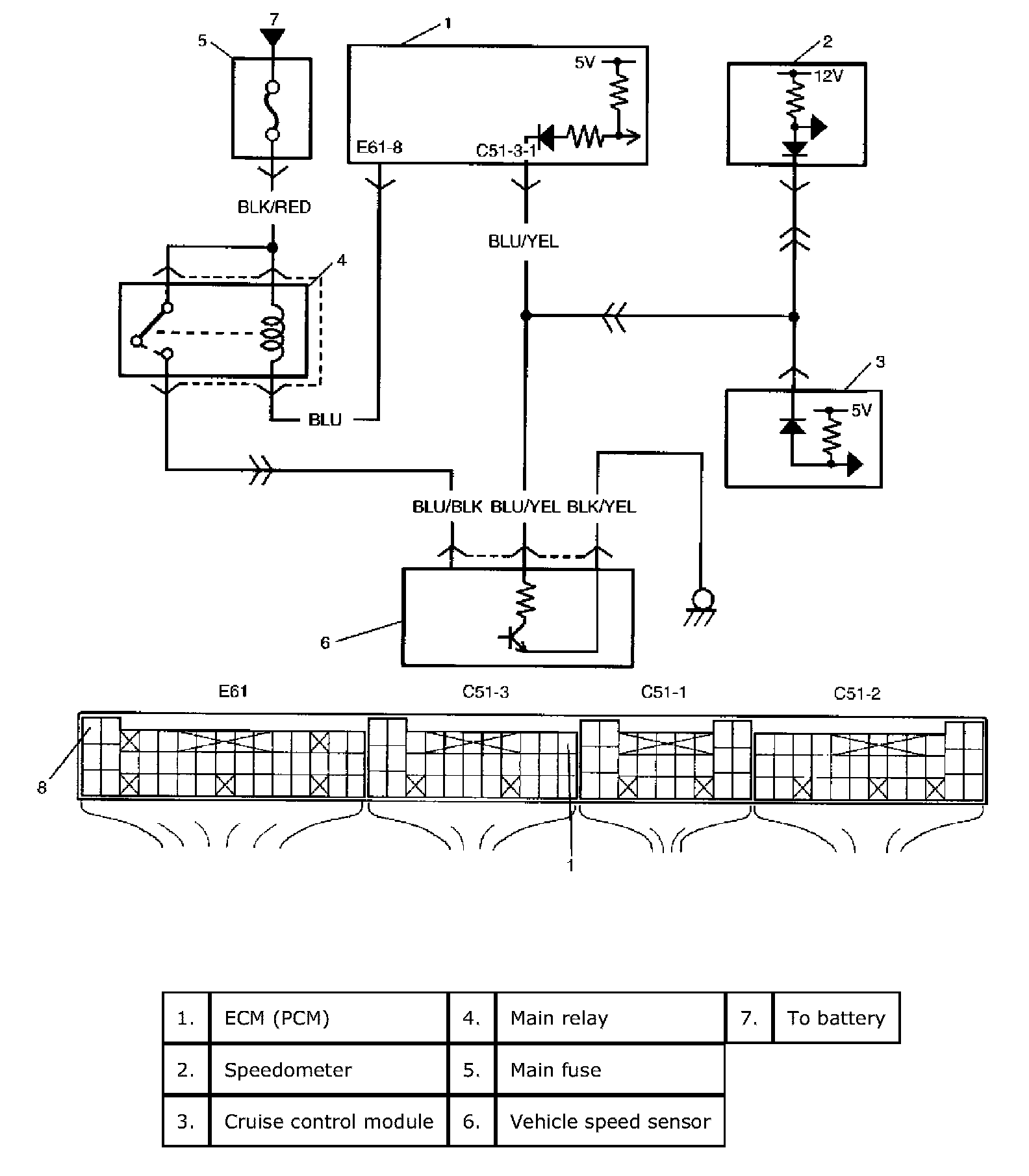

Wiring Diagram:

Wiring Diagram

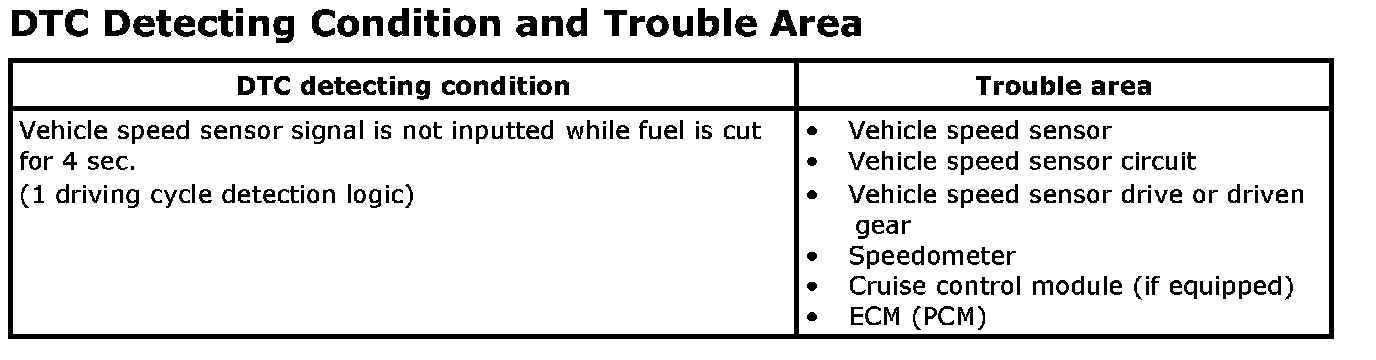

DTC Detecting Condition And Trouble Area:

DTC detecting condition Trouble area

DTC Confirmation Procedure

WARNING:
- When performing a road test, select a place where there is no traffic or possibility of a traffic accident and very careful during testing to avoid occurrence of an accident.
- Road test should be carried out with 2 persons, a driver and a tester, on a level road.

1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and warm up to normal operating temperature.
4. Increase vehicle speed till engine speed is reached 4000 rpm in 3rd gear (M/T) or 2nd range (A/T).
5. Release accelerator pedal and with engine brake applied, keep vehicle coasting and then stop vehicle.
6. Check DTC by using scan tool.

Step 1 - 3:

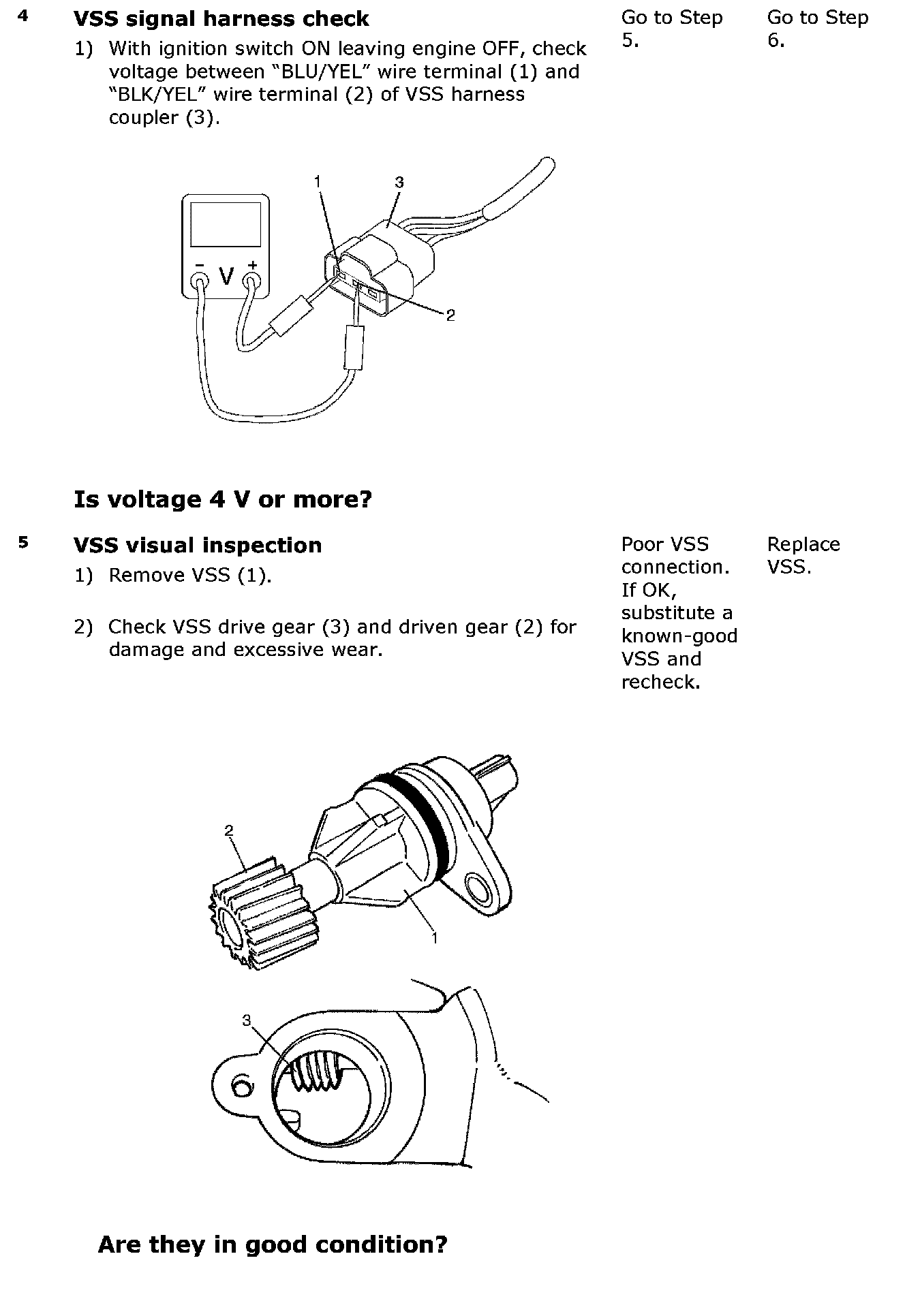

Step 4 - 5:

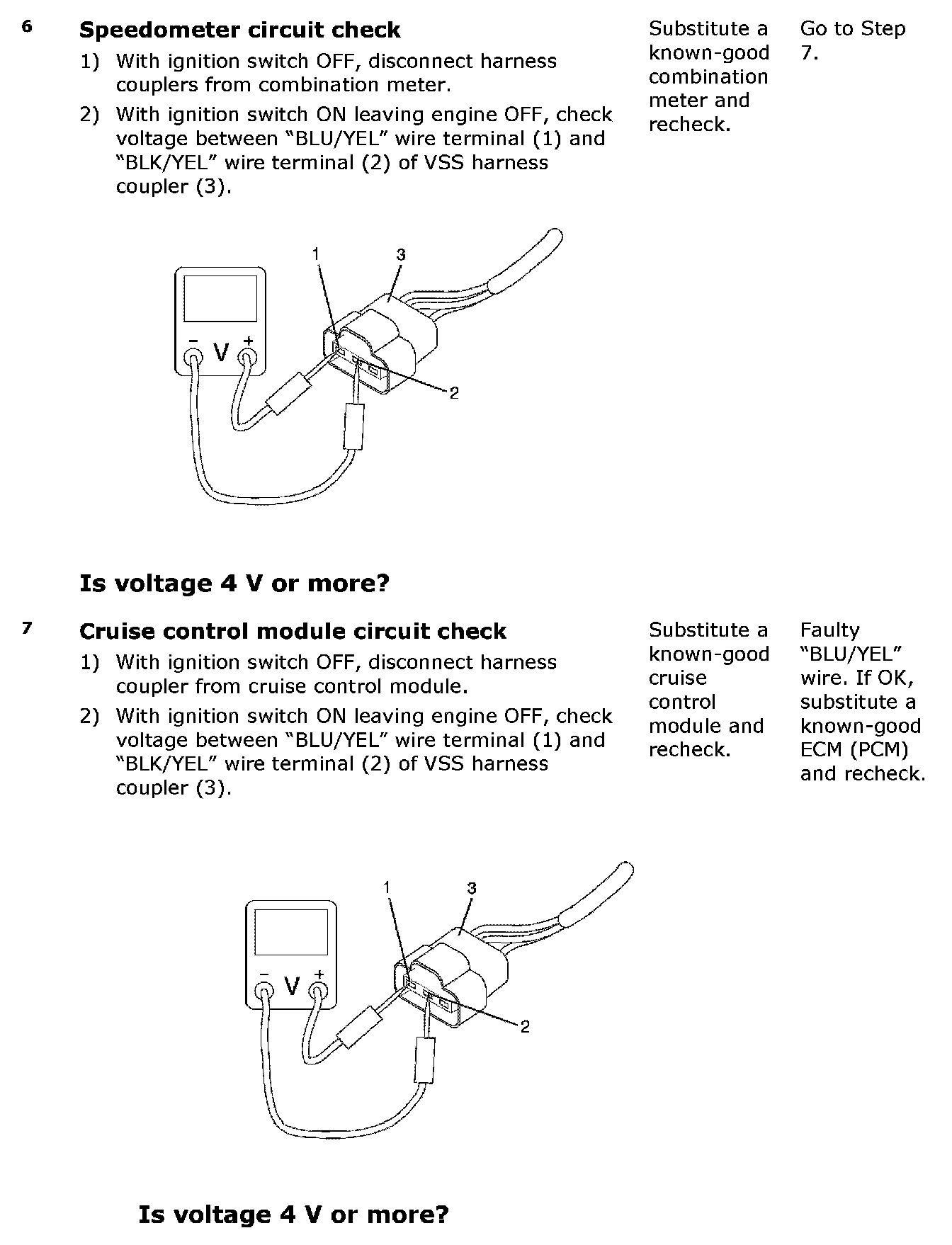

Step 6 - 7:

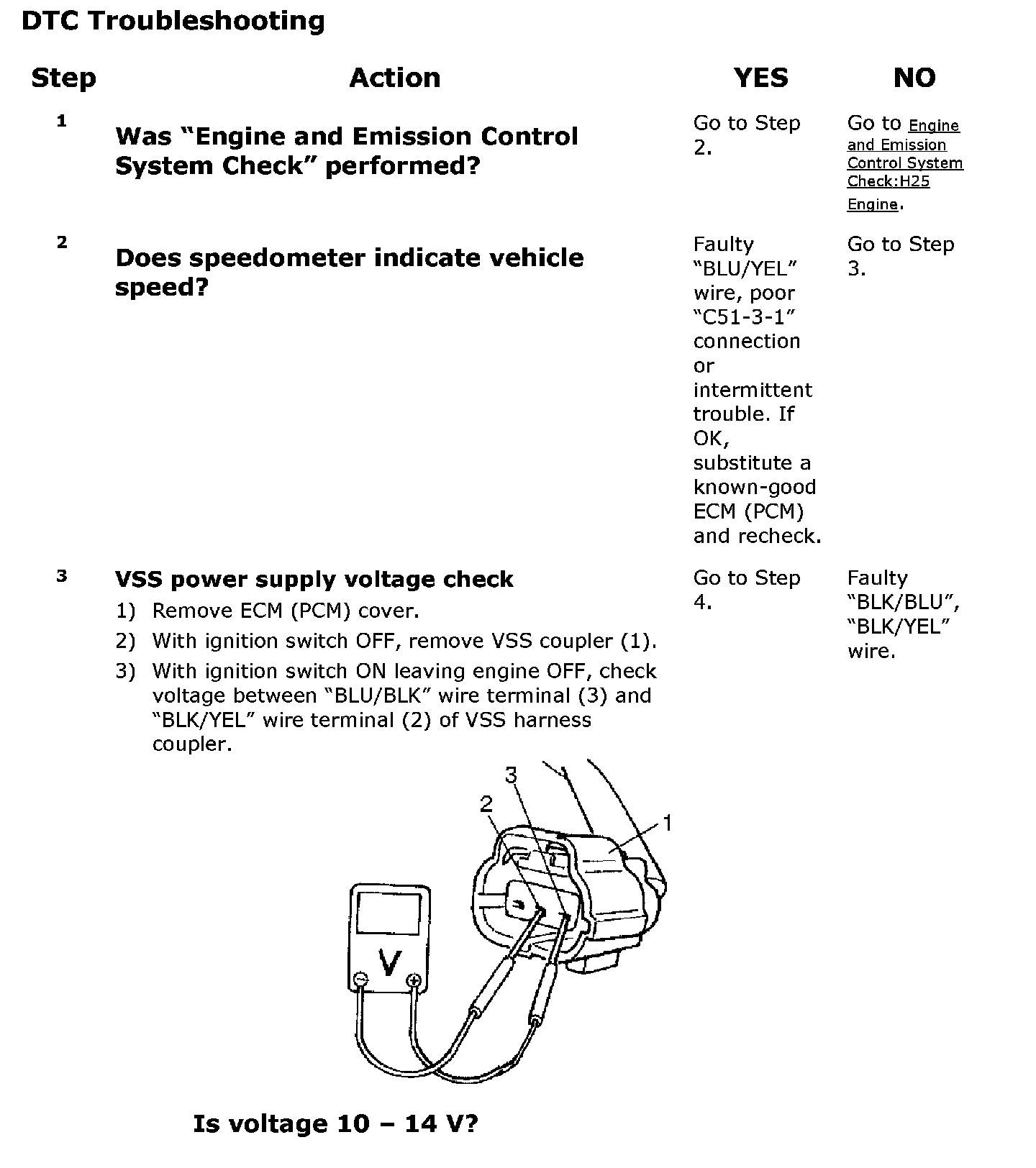

DTC Troubleshooting
