P0340

DTC P0340: Camshaft Position (CMP) Sensor Circuit Malfunction

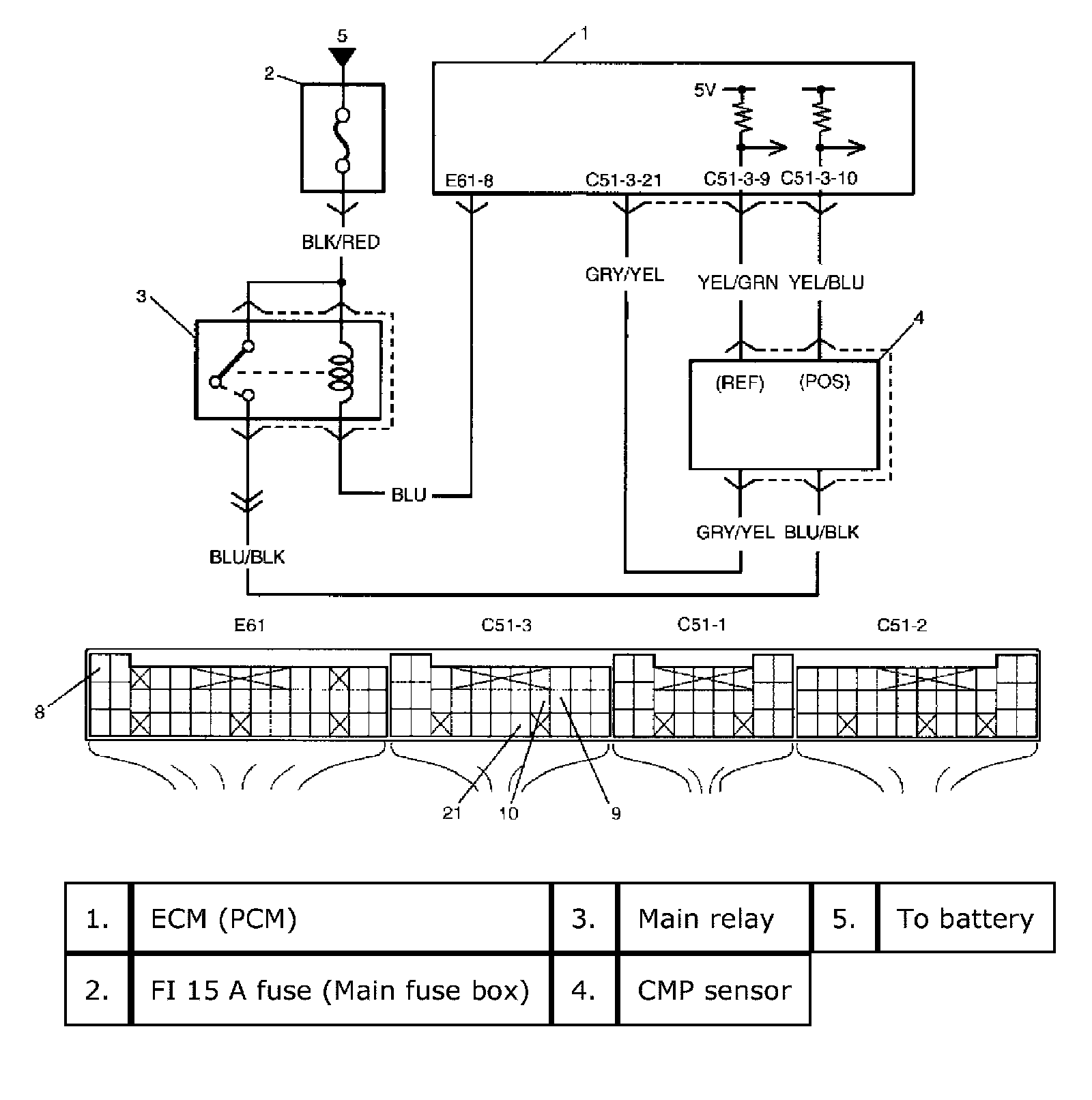

Wiring Diagram:

Wiring Diagram

System Description
CMP sensor detects REF signal and POS signal.
- REF signal: 6 pulses / 1 revolution of camshaft. Each of REF signals has different wavelength. Based on REF signal, ECM (PCM) judges which cylinder is at TDC.
- POS signal: 360 pulses / 1 revolution of camshaft. Each of POS signals has equivalent wavelength. Based on POS signal, ECM (PCM) judges the wavelength of REF signals, engine speed and piston position.

DTC Detecting Condition And Trouble Area:

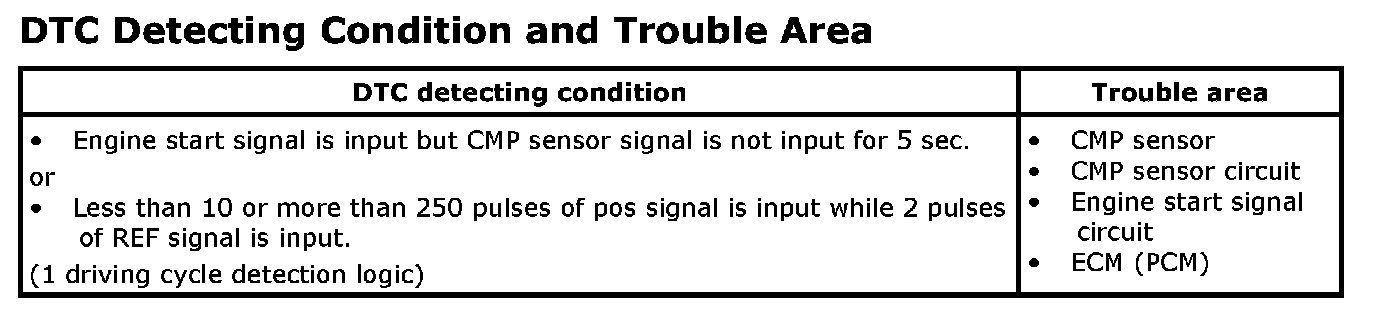

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Crank engine for 8 sec.
4. Check DTC by using scan tool.

Step 1 - 6:

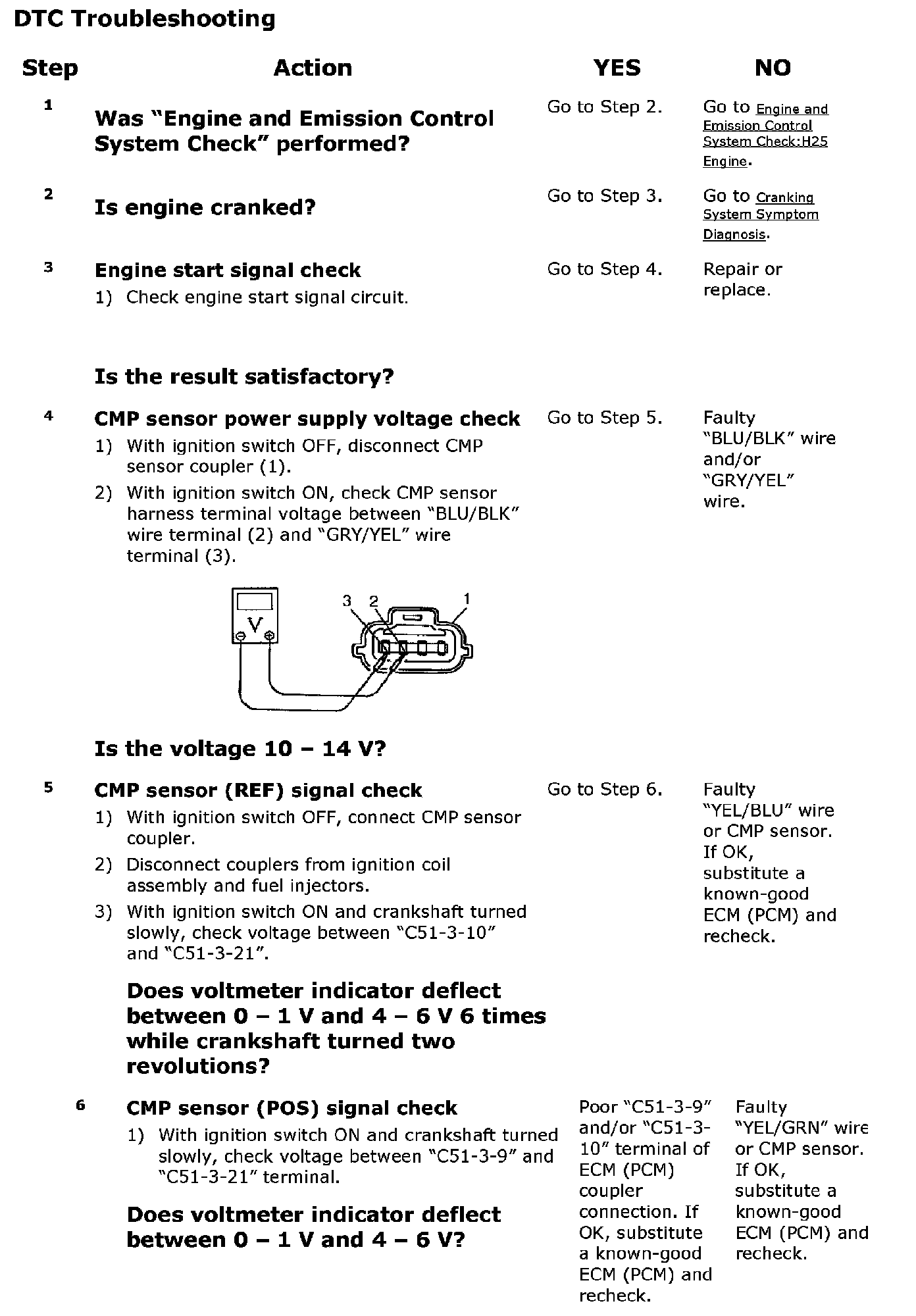

DTC Troubleshooting
