P0125
DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel ControlWiring Diagram:

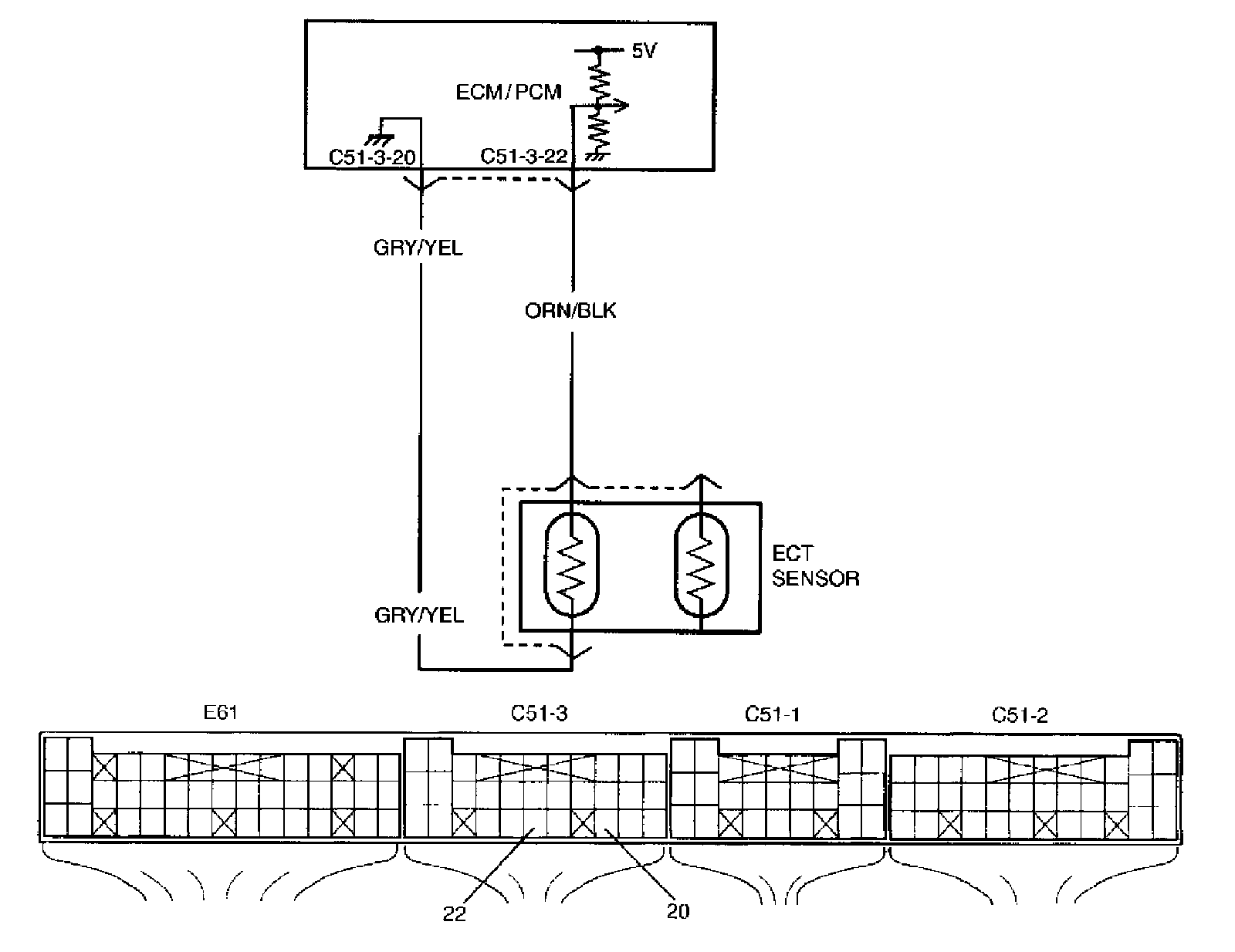

Wiring Diagram
DTC Detecting Condition And Trouble Area:

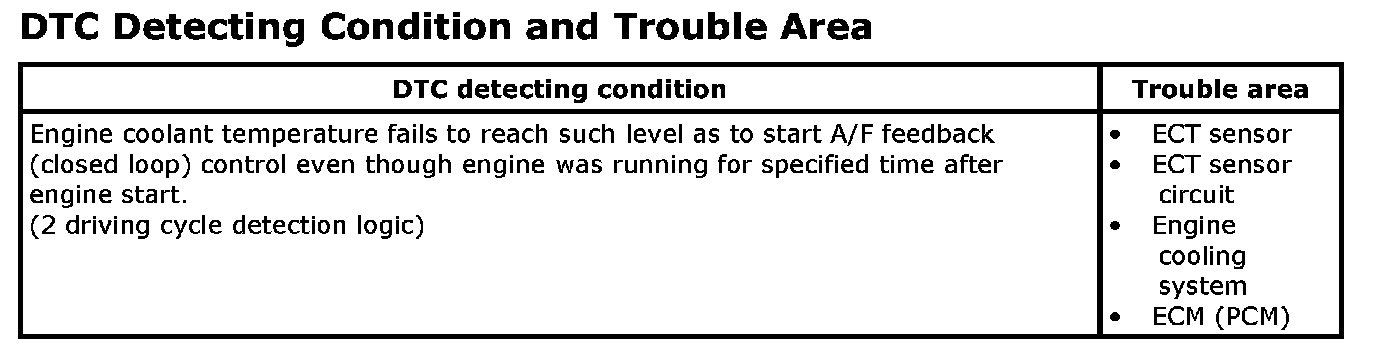

DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
NOTE: Check to make sure that the following conditions are satisfied when using this "DTC Confirmation Procedure".
- Intake air temperature: -14 °C (6.8 °F) or higher
- Atmospheric pressure: higher than 560 mmHg (Altitude: lower than 2790 m (9150 ft))
- The following DTCs are not detected: P0117, P0118 and P0335
- Engine coolant temperature at engine start: lower than 20 °C (68 °F)
Step 1 - 5:

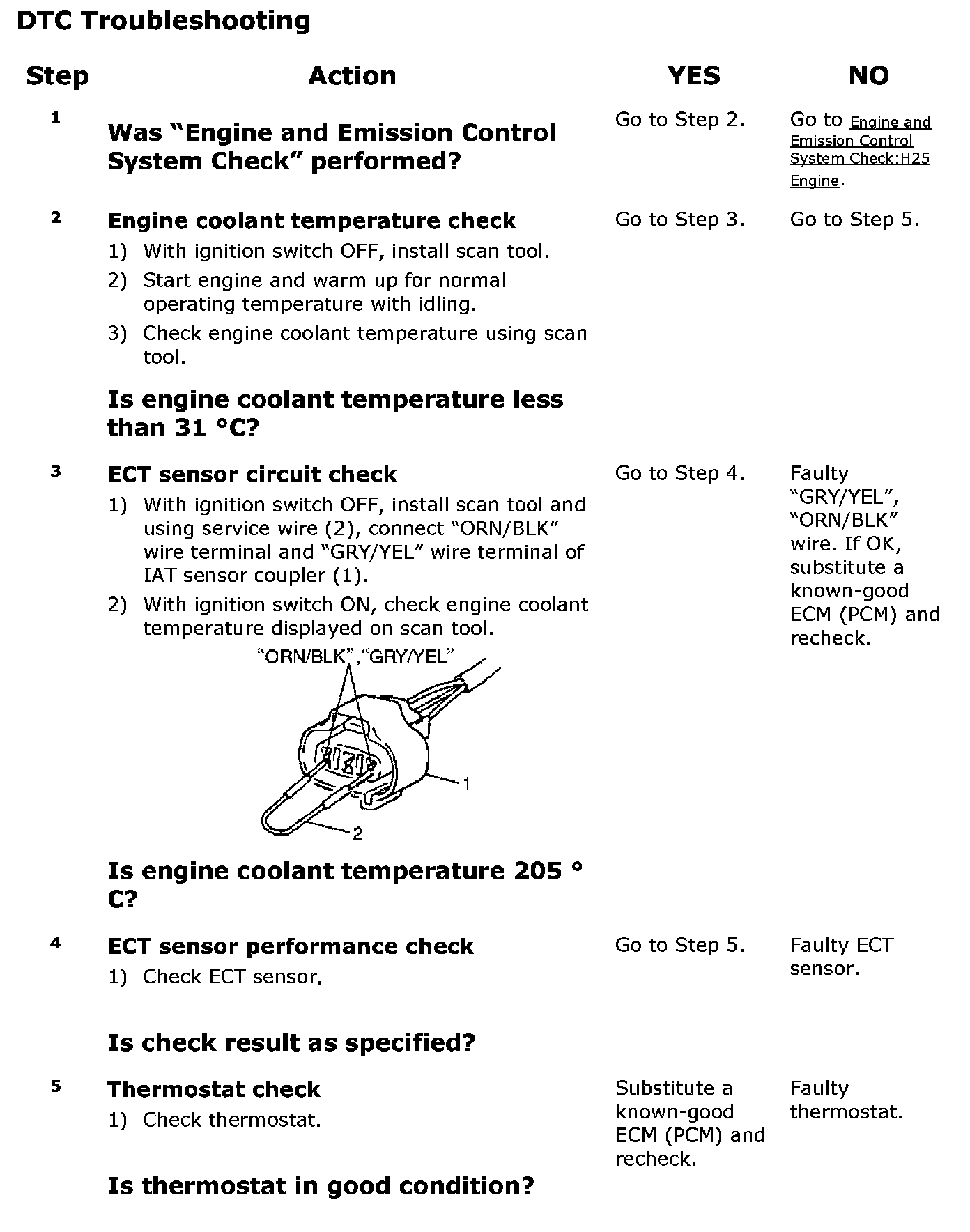

DTC Troubleshooting
