P0118

DTC P0118: Engine Coolant Temperature (ECT) Sensor Circuit High Input

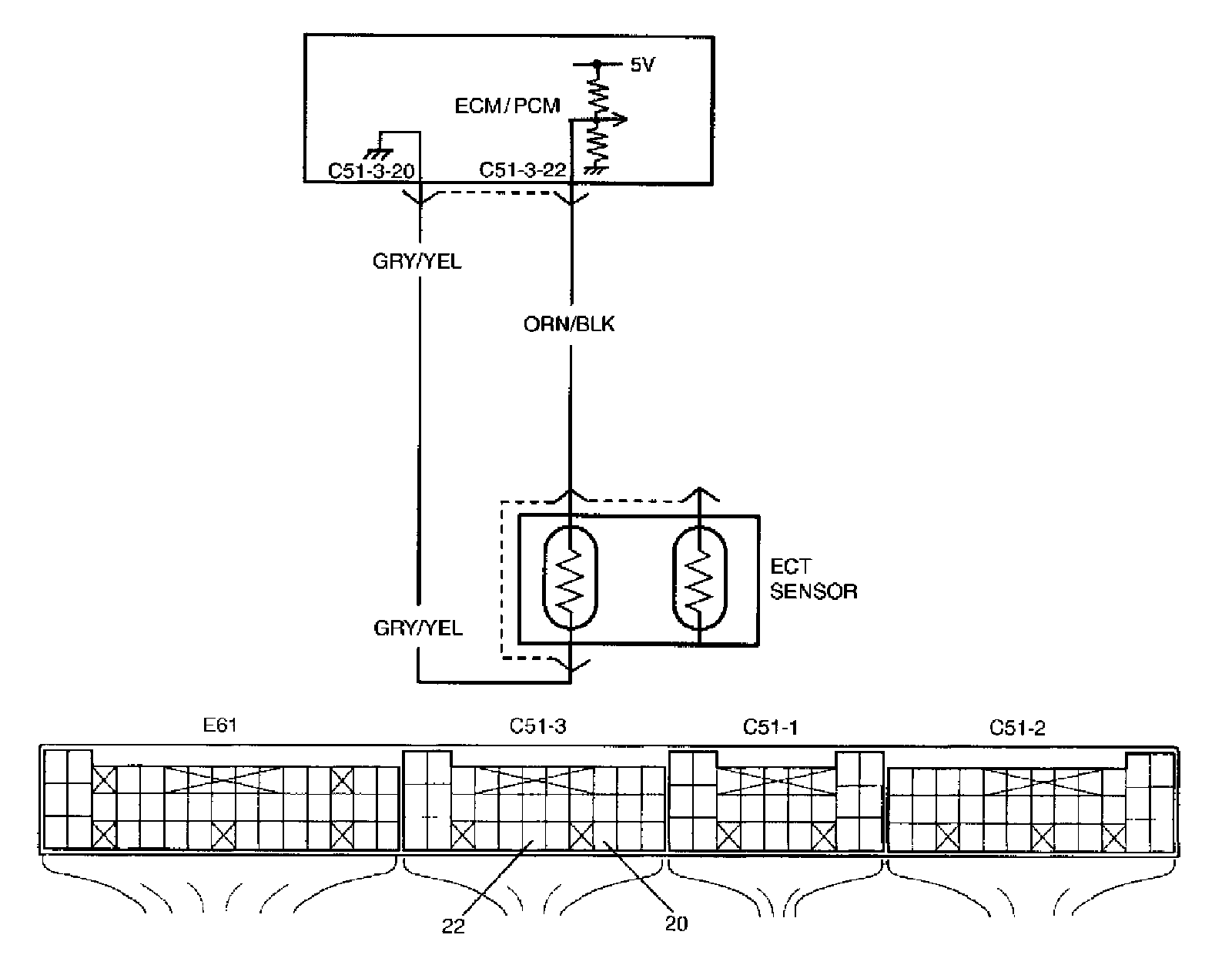

Wiring Diagram:

Wiring Diagram

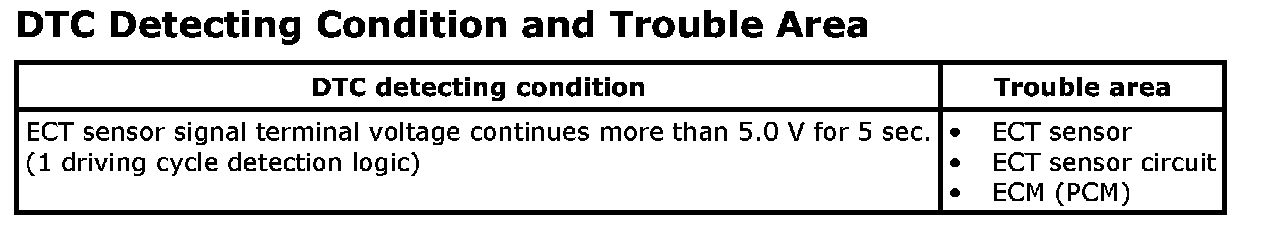

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. With ignition switch OFF, connect scan tool.
2. Turn ON ignition switch and clear DTC by using scan tool if any.
3. Start engine and run it for 10 sec.
4. Check DTC by using scan tool.

Step 1 - 4:

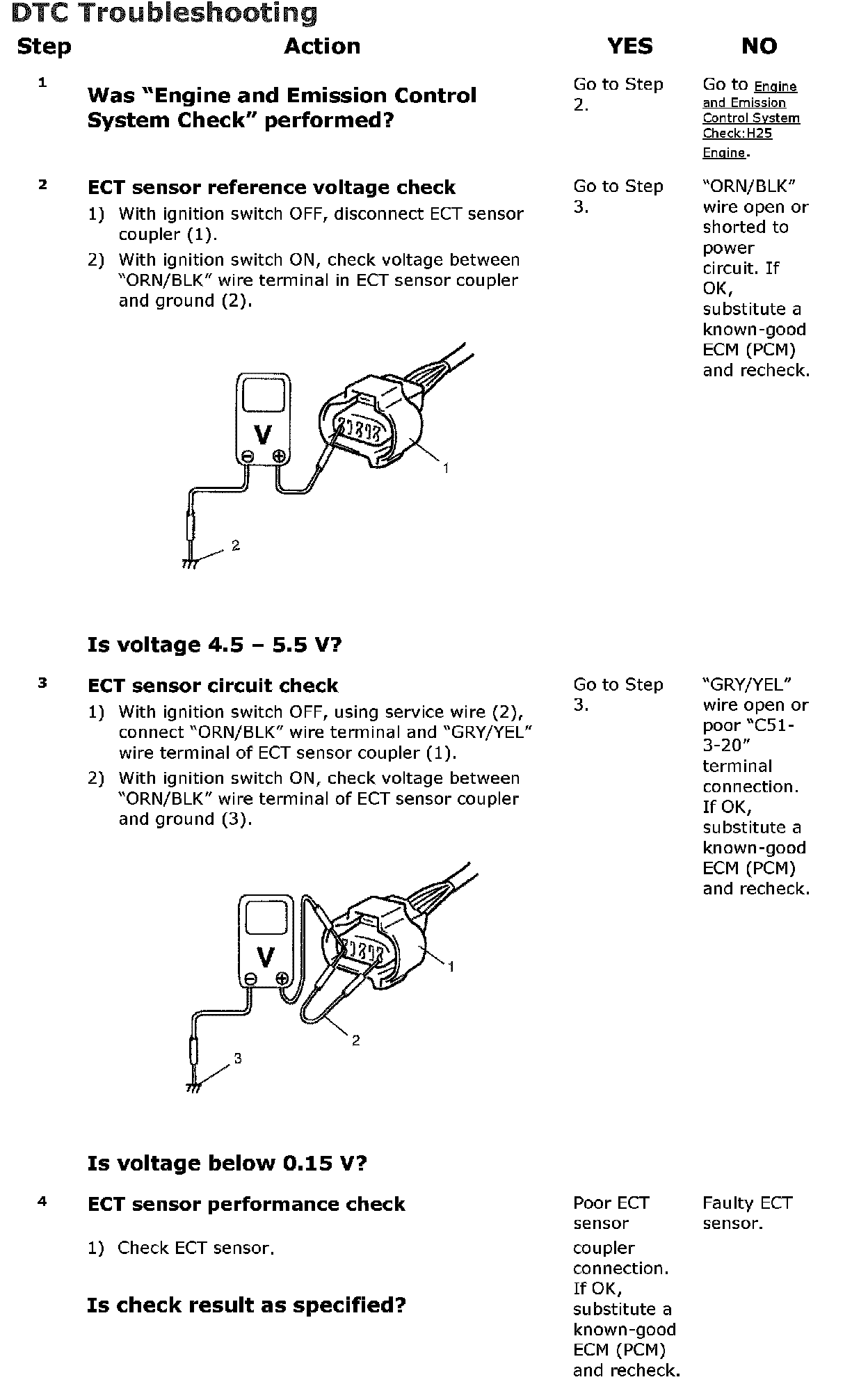

DTC Troubleshooting
