DTC C1241 (No. 41) Vehicle Speed Sensor (VSS) Circuit Malfunction

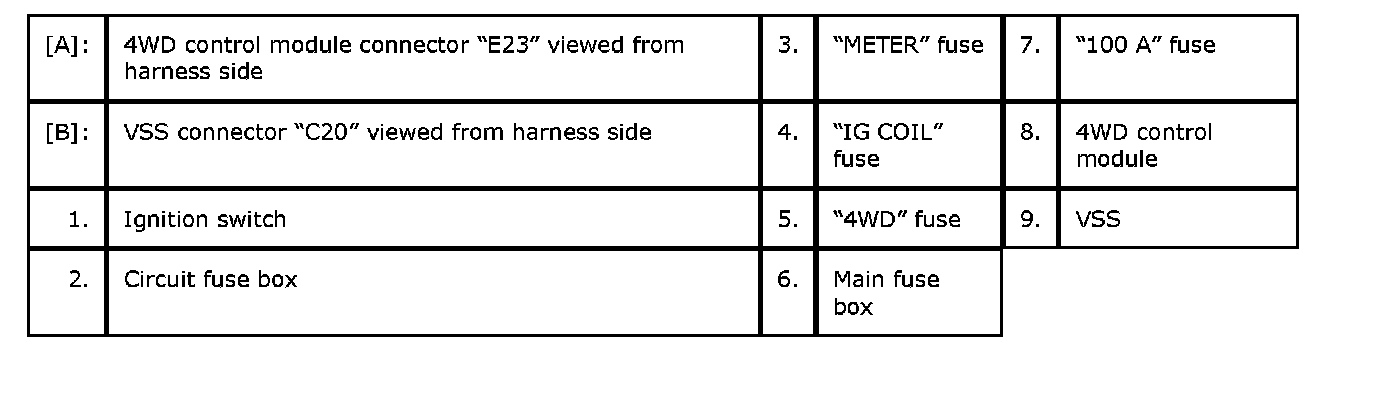

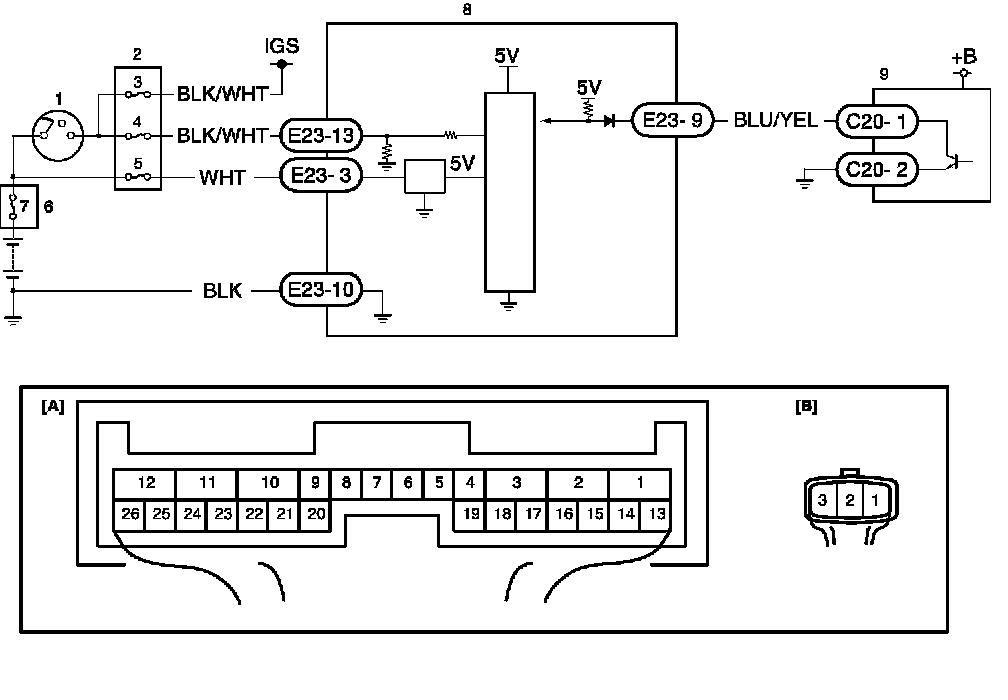

Wiring Diagram

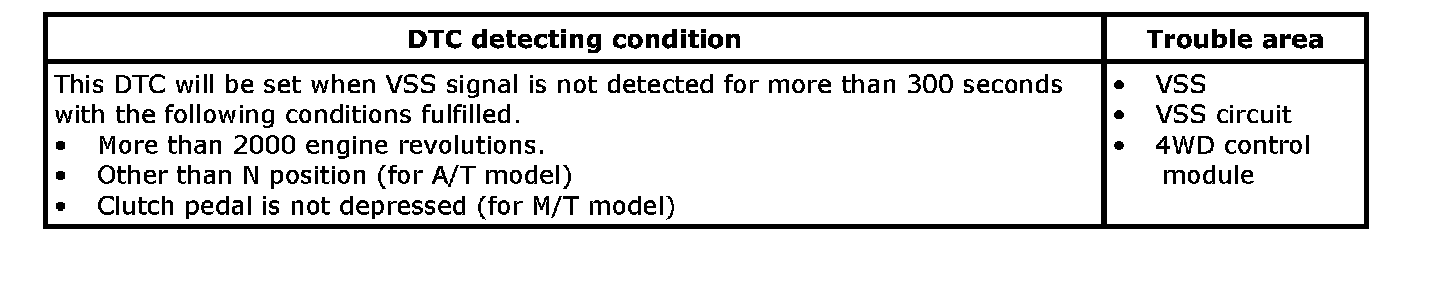

DTC Detecting Condition and Trouble Area

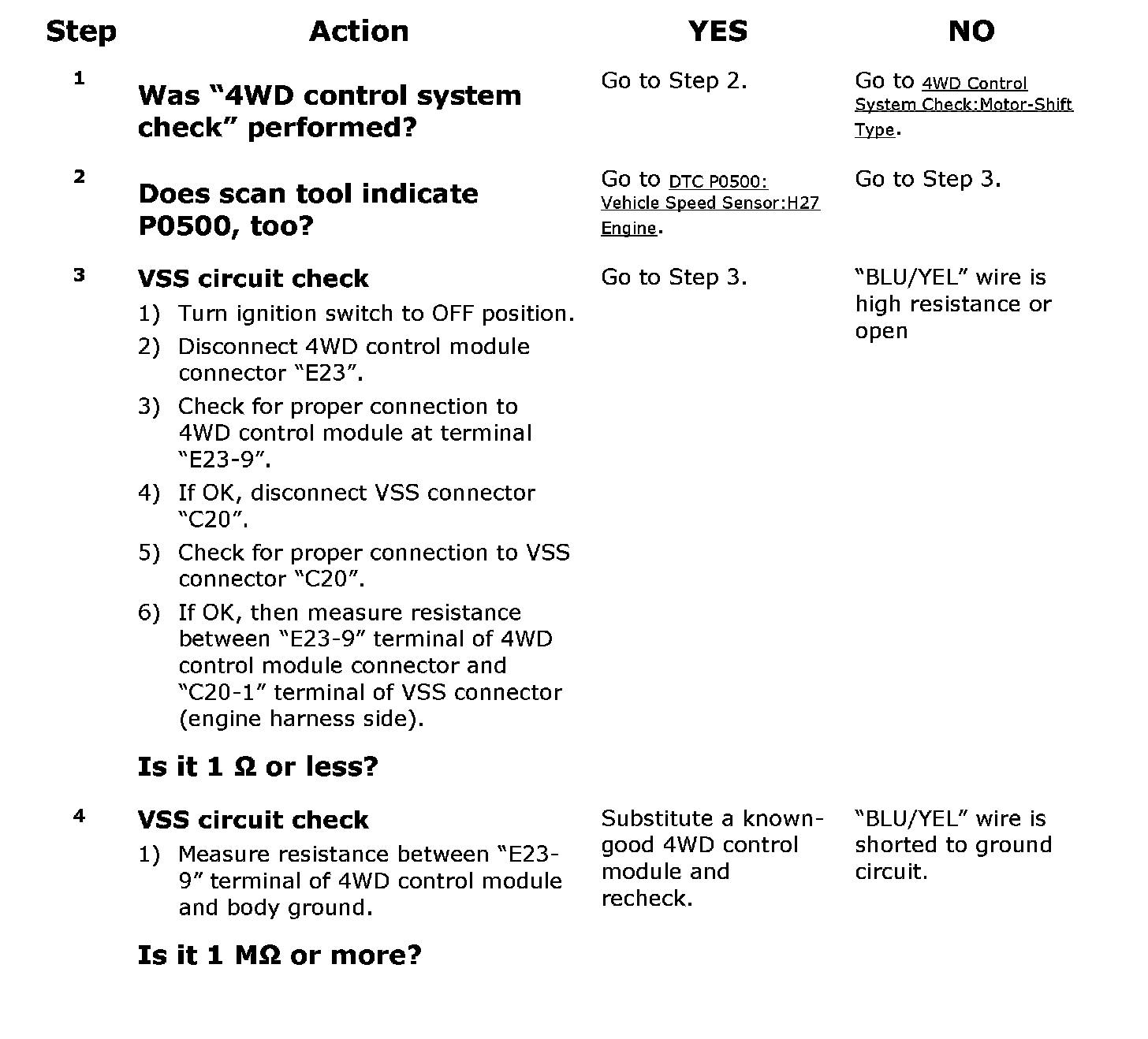

DTC Troubleshooting
