Overdrive Switch: Testing and Inspection
O/D CUT SWITCH
INSPECTION

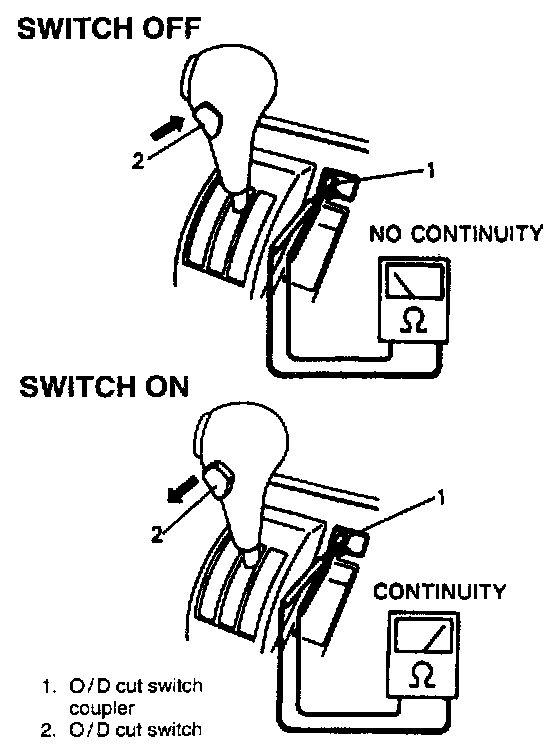

Disconnect O/D cut switch coupler and check its continuity as shown.
