Anti-Lock Brake System

Part 1 Of 4:

Anti-Lock Brake System (Part 1 of 4)
Brake Fluid Level Switch
DRL Controller
J/C
4WD Switch

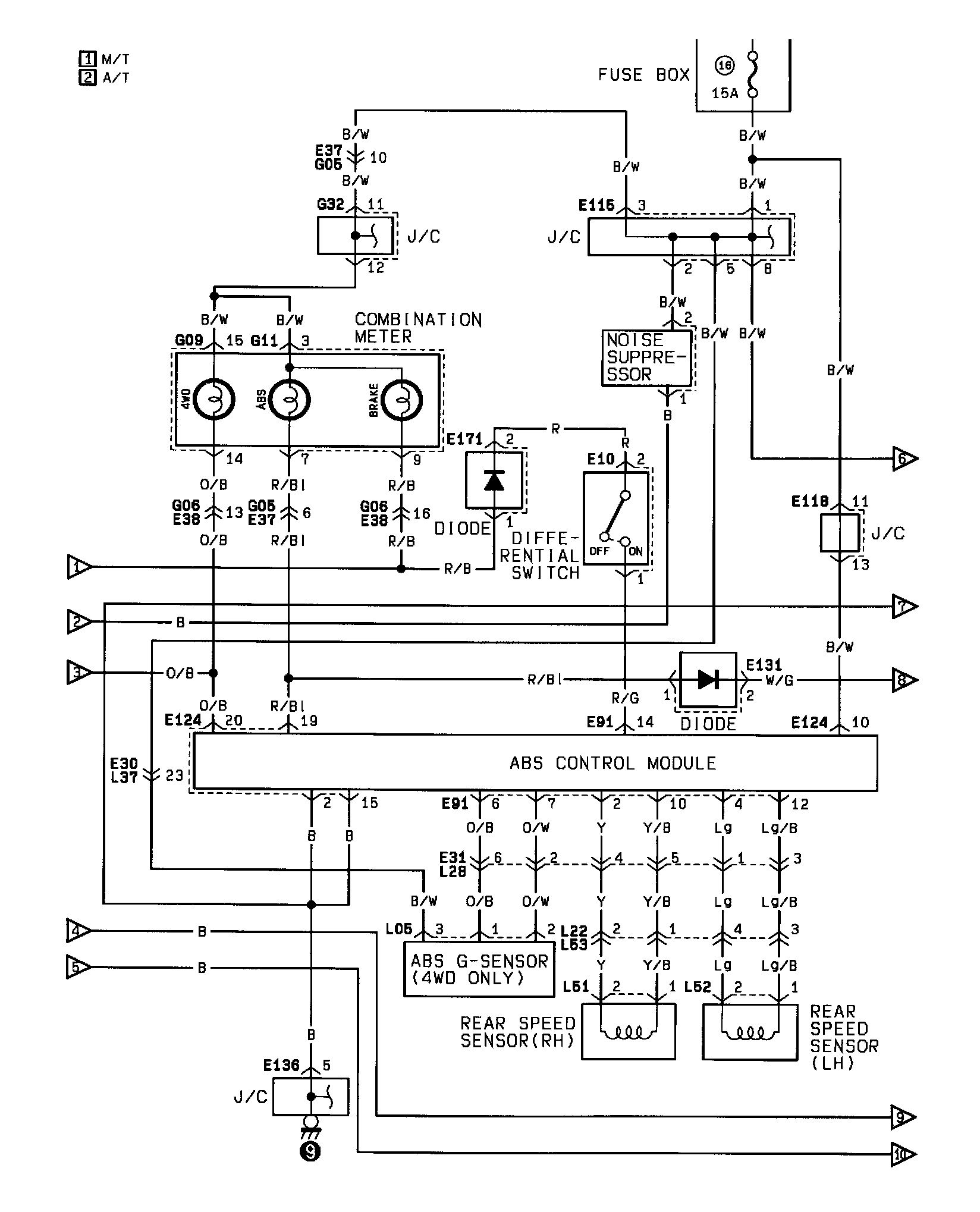

Part 2 Of 4:

Anti-Lock Brake System (Part 2 of 4)
ABS Control Module
ABS G-Sensor
Combination Meter
Diode
Differential Switch
Fuse Box
J/C
Noise Suppressor
Rear Speed Sensor (LH)
Rear Speed Sensor (RH)

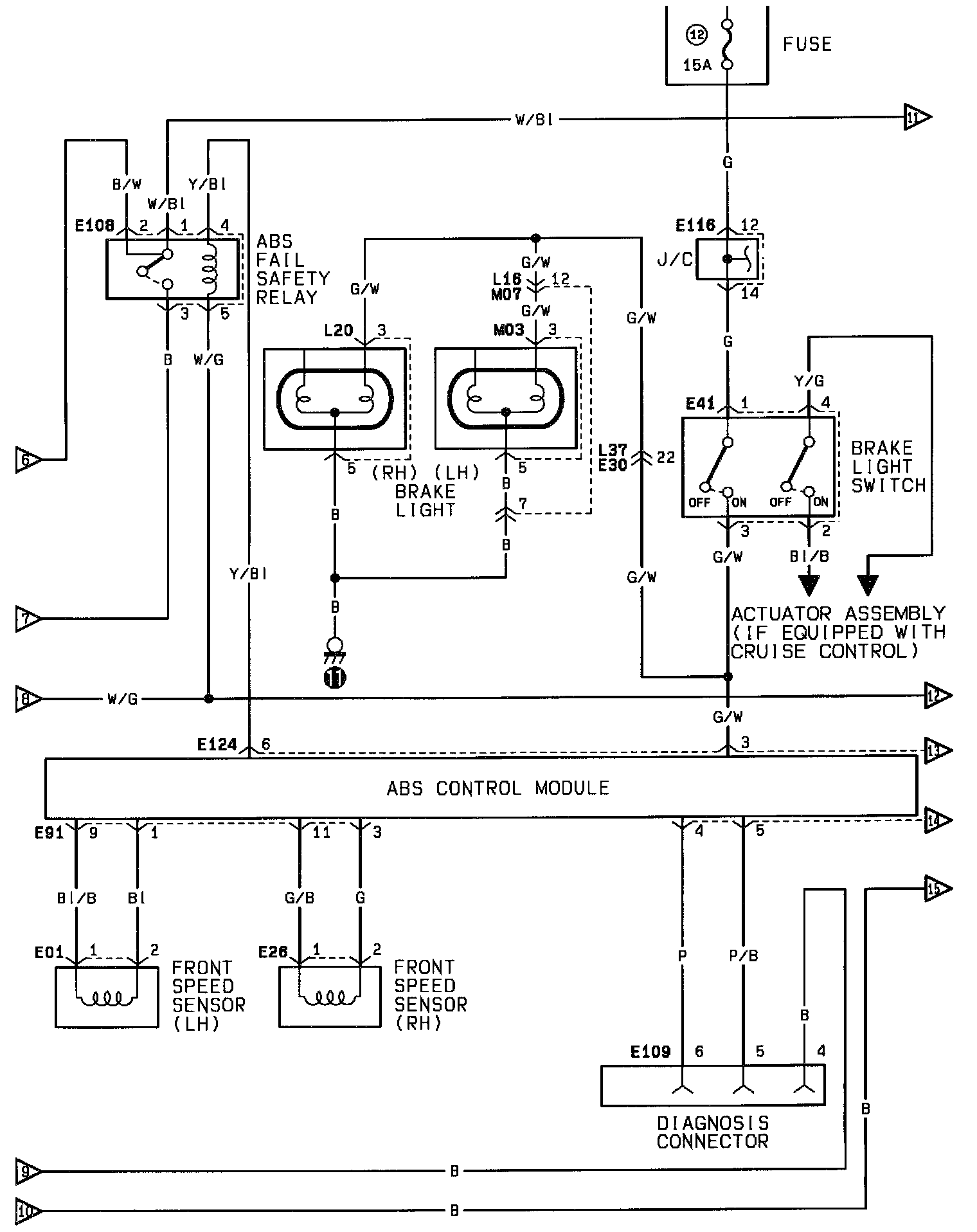

Part 3 Of 4:

Anti-Lock Brake System (Part 3 of 4)
ABS Fail Safety Relay
ABS Control Module
Actuator Assembly (If equipped With Cruise Control)
Brake Light LH
Brake Light RH
Brake Light Relay
Diagnosis Connector
Fuse
Front Speed Sensor (LH)
Front Speed Sensor (RH)

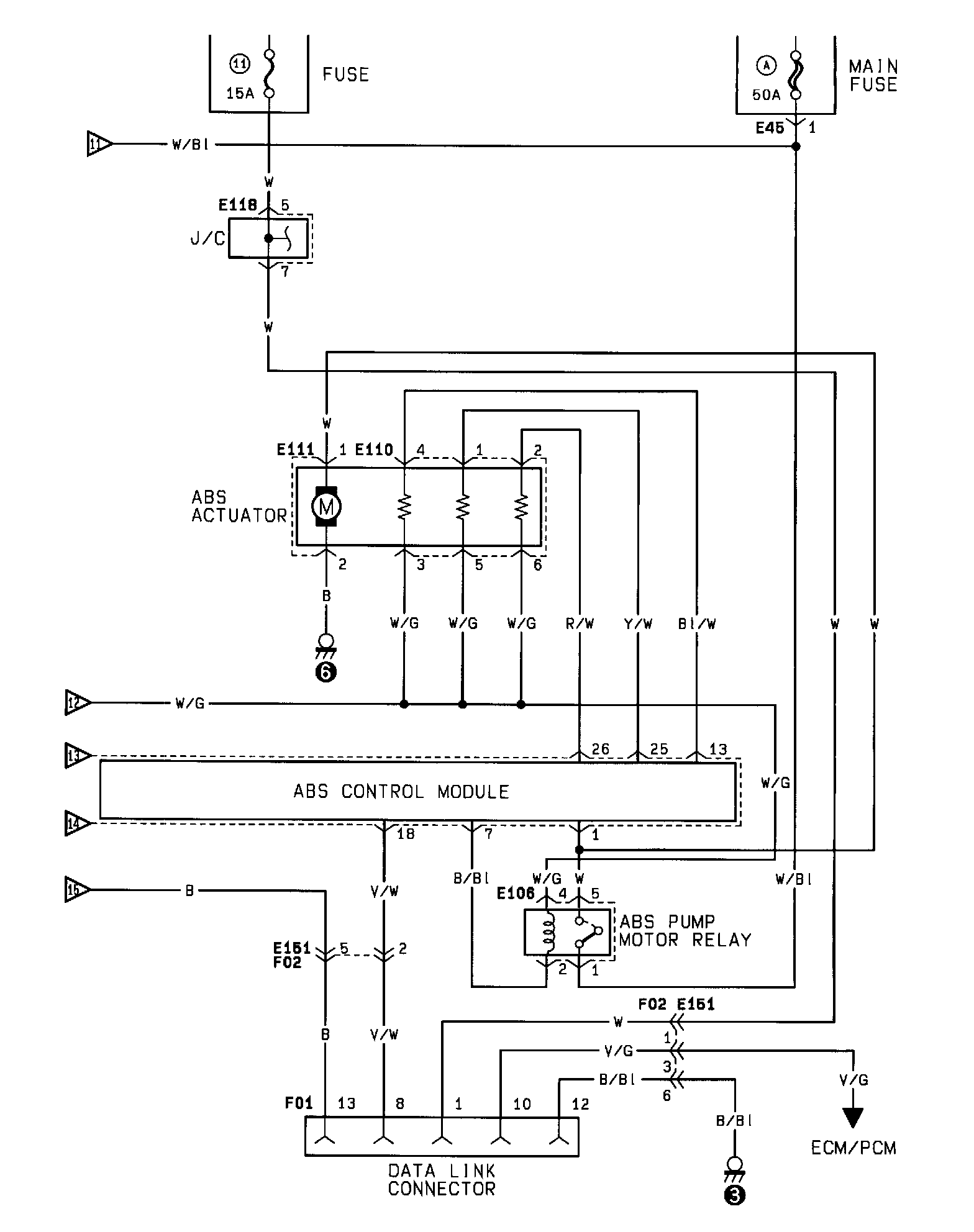

Part 4 Of 4:

Anti-Lock Brake System (Part 4 of 4)
ABS Actuator
ABS Control Module
ABS Pump Motor Relay
Data Link Connector
ECM/PCM
Fuse
Main Fuse
