Sensor Inspection

- Check sensor (pole piece) for damage or bent.

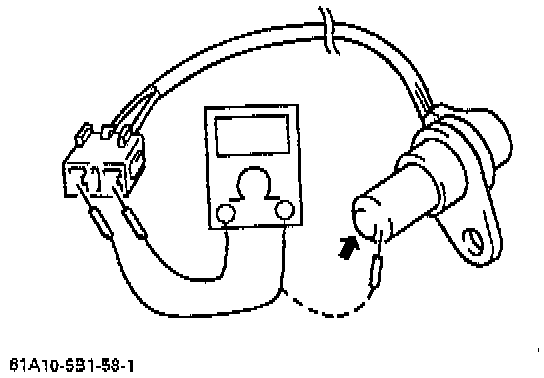

- Check sensor for resistance.

Resistance between terminals: 1.2 - 1.6 k ohms at 20° C, 68° F.
Resistance between terminal and sensor body: 1 M ohms or more.

If any faulty is found, replace.
