Removal

1) Disconnect negative cable from battery.
2) Hoist vehicle and remove wheel.
3) Disconnect front wheel speed sensor connector.

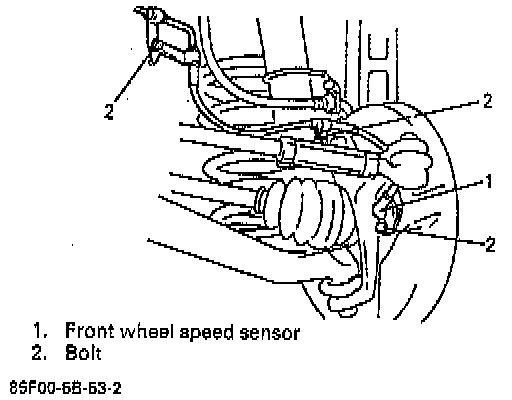

4) Remove harness clamp bolts and remove front wheel speed sensor from knuckle.

CAUTION:
- Do not pull wire harness when removing front wheel speed sensor.
- Do not cause damage to surface of front wheel speed sensor and do not allow dust, etc. to enter its installation hole.
