Removal

1) Remove wheel hub with sensor rotor.

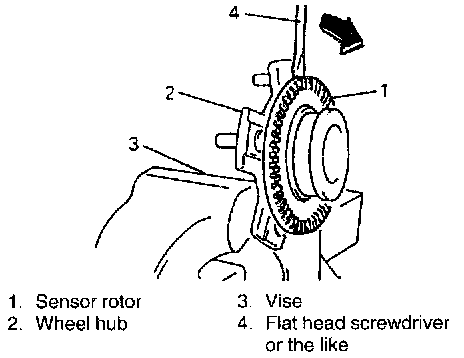

2) Remove sensor rotor from wheel hub as shown.

CAUTION: Pull out sensor rotor from wheel hub gradually and evenly.
Attempt to pull it out partially may cause it to be deformed.
