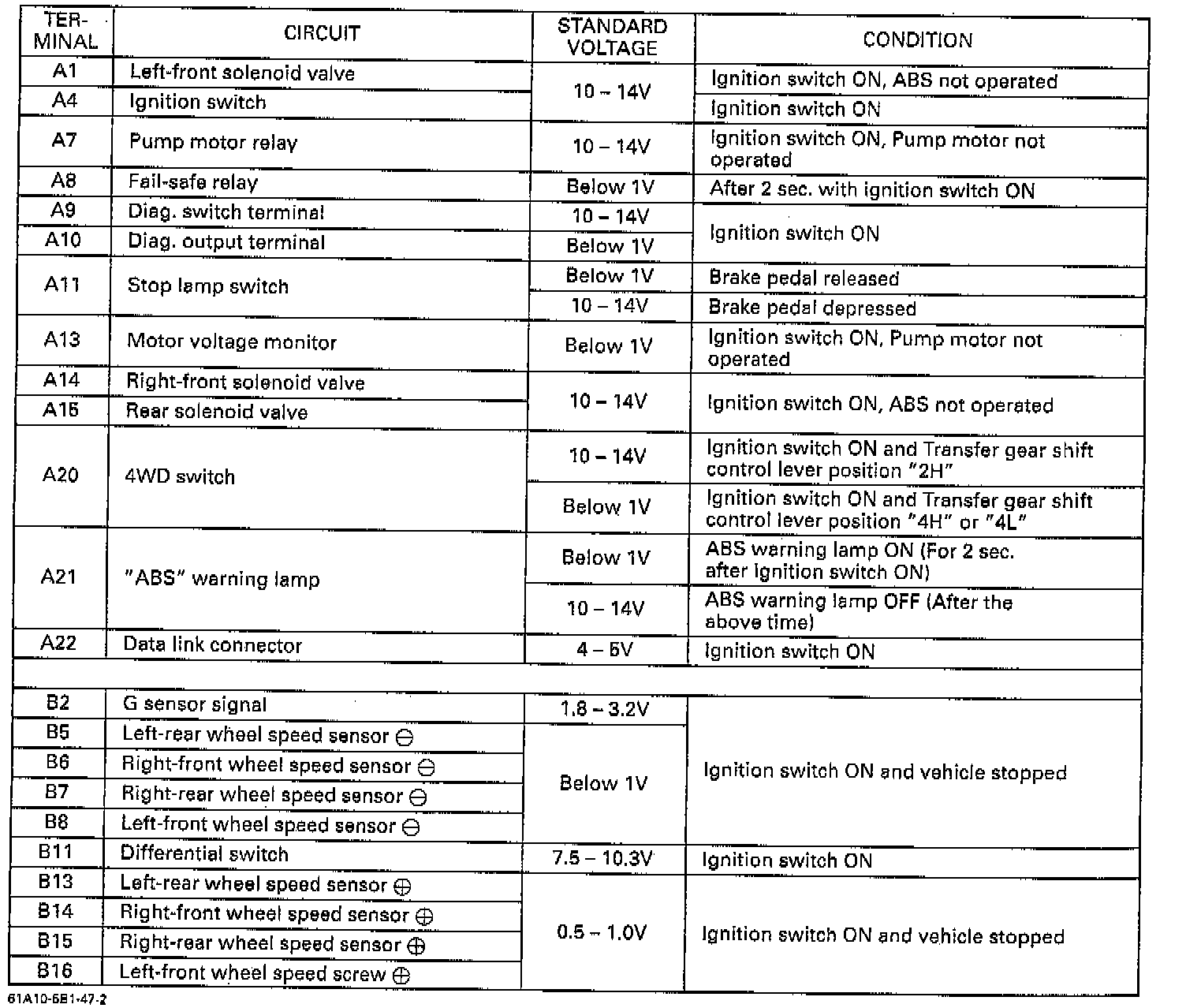

Pinout Values and Diagnostic Parameters

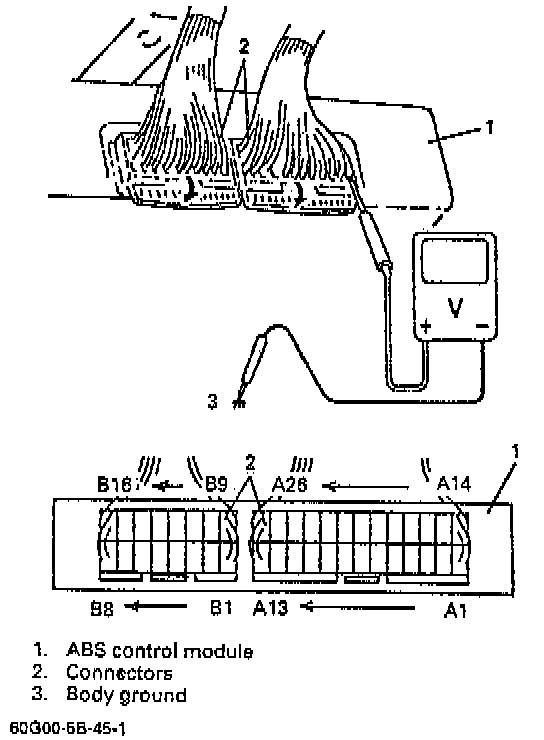

Voltage between each terminal of module connector and body ground is as follows.

CAUTION: Never connect voltmeter or ohmmeter to Antilock Brake System (ABS) control module with connector disconnected from it. Attempt to do it may cause damage to ABS control module.





NOTE: As each terminal voltage is affected by the battery voltage, confirm that it is 11 V or more when ignition switch is ON.
