Shifter M/T: Service and Repair

SHIFT CONTROL LEVERS
REMOVAL

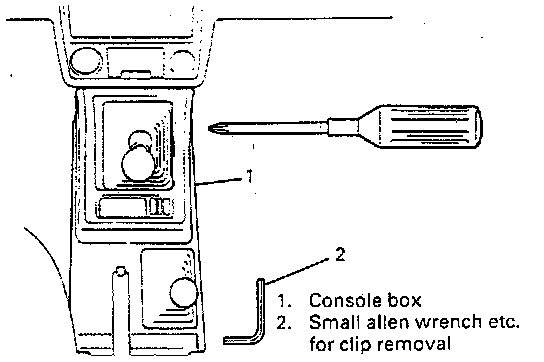

1. Remove 2 screws at the front and 2 clips at the rear, and then take off console box.

NOTE: To remove clip, push in its center pin first.

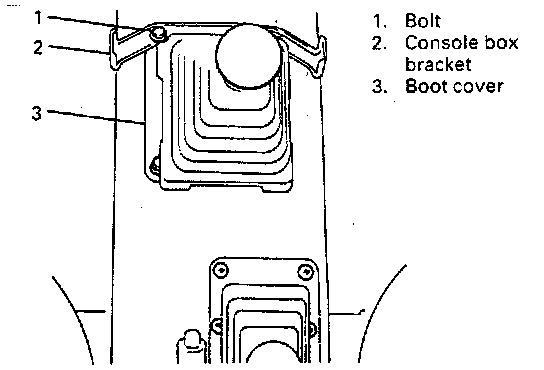

2. Remove console box bracket by removing bolts and lift up boot cover and boot No. 2.

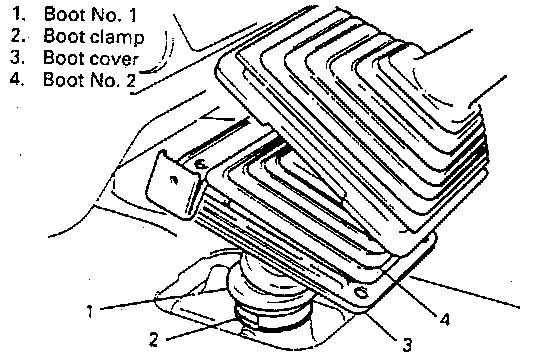

3. Remove boot clamp and then remove boot No. 1 from transmission shift lever case.

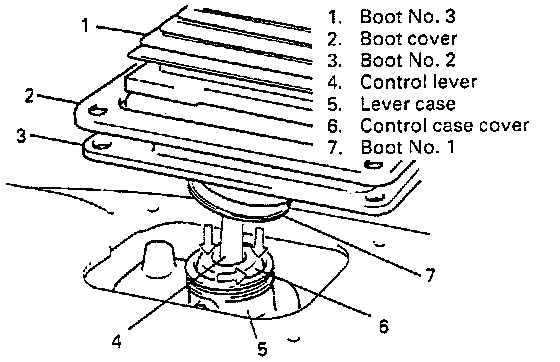

4. With gear shift control case cover pushed down with fingers, turn it to counter clockwise and take out shift control lever.
5. Take out transfer shift control lever in similar manner as described above.

INSPECTION AND INSTALLATION





1. Check shift control lever lower portion and control lever locating sheet for excessive wear, and boot for damage. Correct or replace if necessary.
2. Apply grease to pivot portions and seat, then install shift control lever.

"A": Grease 99000-25010

3. Perform above steps also for transfer shift control lever.

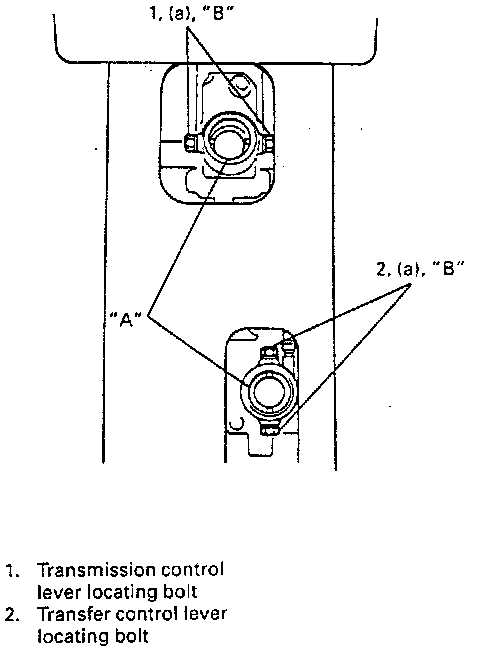

4. If control lever locating bolts (a) are replaced or retightened, torque them as specified below. Replacing of control lever locating bolts requires thread lock cement.

"B": Cement 99000-32020

Tightening Torque
(a): 17 Nm (1.7 kg-m, 12.5 ft. lbs.)





5. Install transmission boot No. 1 from inside of cabin and clamp it with a new clamp securely.

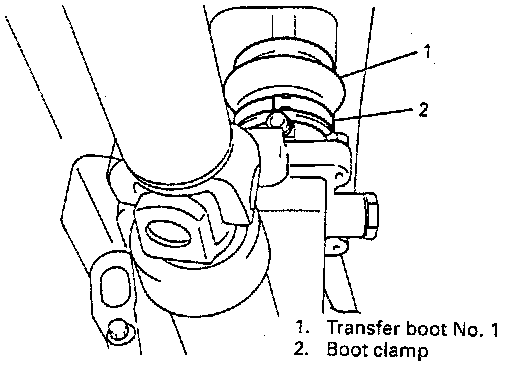

6. Install transfer boot No. 1 securely on lift and clamp it by using a new clamp.

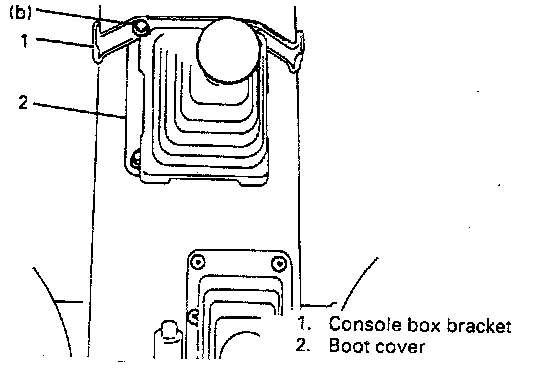

7. Tighten transmission boot No. 2 with boot cover and console box bracket.

Tightening Torque
(b): 6 Nm (0.6 kg-m, 4.0 ft. lbs.)

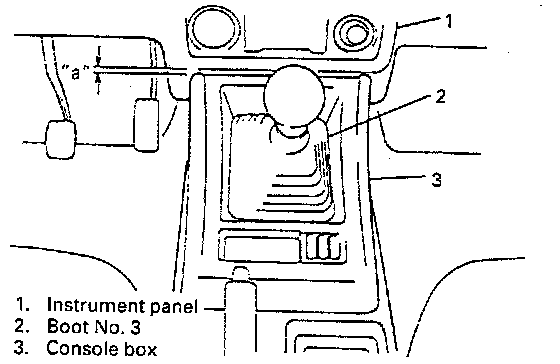

8. Install console box leaving 2 mm (0.08 inch) from instrument panel as shown.

NOTE: Be sure that flare end of transmission boot No. 3 is engaged with console box.

Clearance "a": 2 mm (0.08 inch)
