Seals and Gaskets: Service and Repair

REMOVAL





1. Remove drive axle.

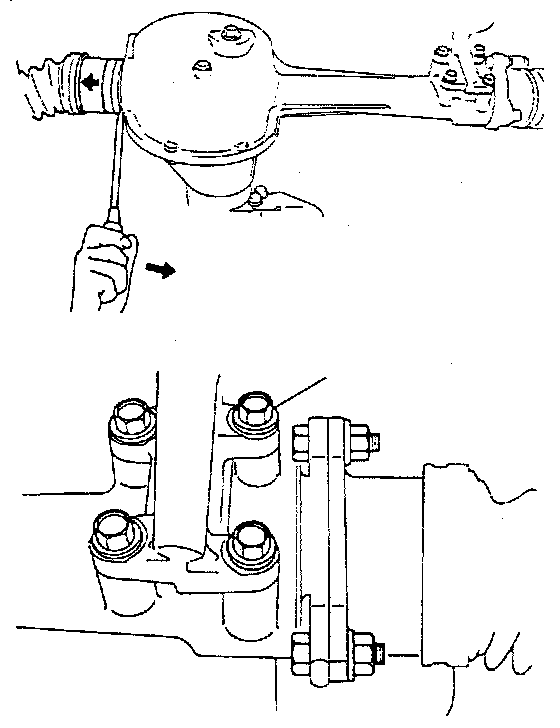

2. Remove oil seal, using plain screw driver.
3. Remove circlip.

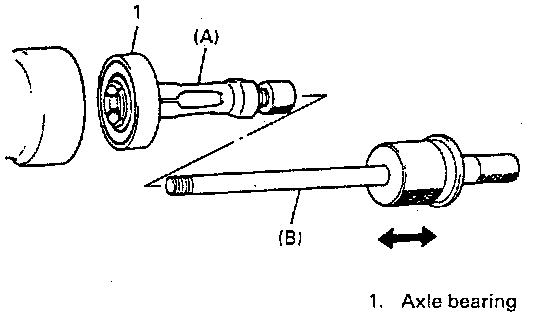

4. Remove bearing, using special tools (A) and (B).

Special Tool
(A): 09941-64510
(B): 09930-30102

INSTALLATION





1. Clean drive axle oil seal and then apply lithium grease.

"A": Grease 99000-25010

Check oil seal for breakage or deterioration.
Replace it as necessary.

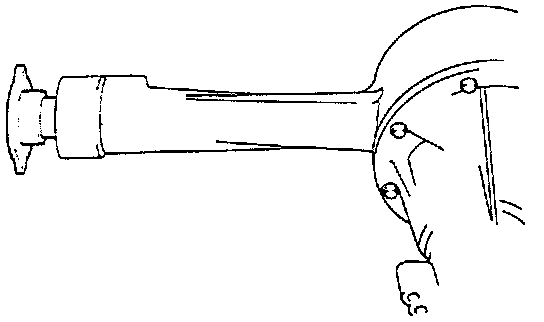

2. Drive in drive axle bearing with special tool (A) (on left hand side).
3. Install circlip.

Special Tool
(A): 09913-75520

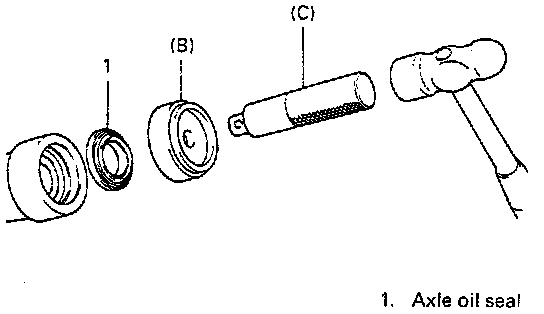

4. Drive in oil seal with special tools (B) and (C).

Special Tool
(B): 09951-16090
(C): 09924-74510





NOTE: As depth to which oil seal should be driven into axle housing is different between the left and right, be sure to check stamped marks on special tool (B) and drive each oil seal to corresponding mark.

Special Tool
(B): 09951-16090





5. Install left drive shaft.
6. Install drive axle.
