Suzuki Truck
>>
1998
>>
Sidekick JS 2D 2WD L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

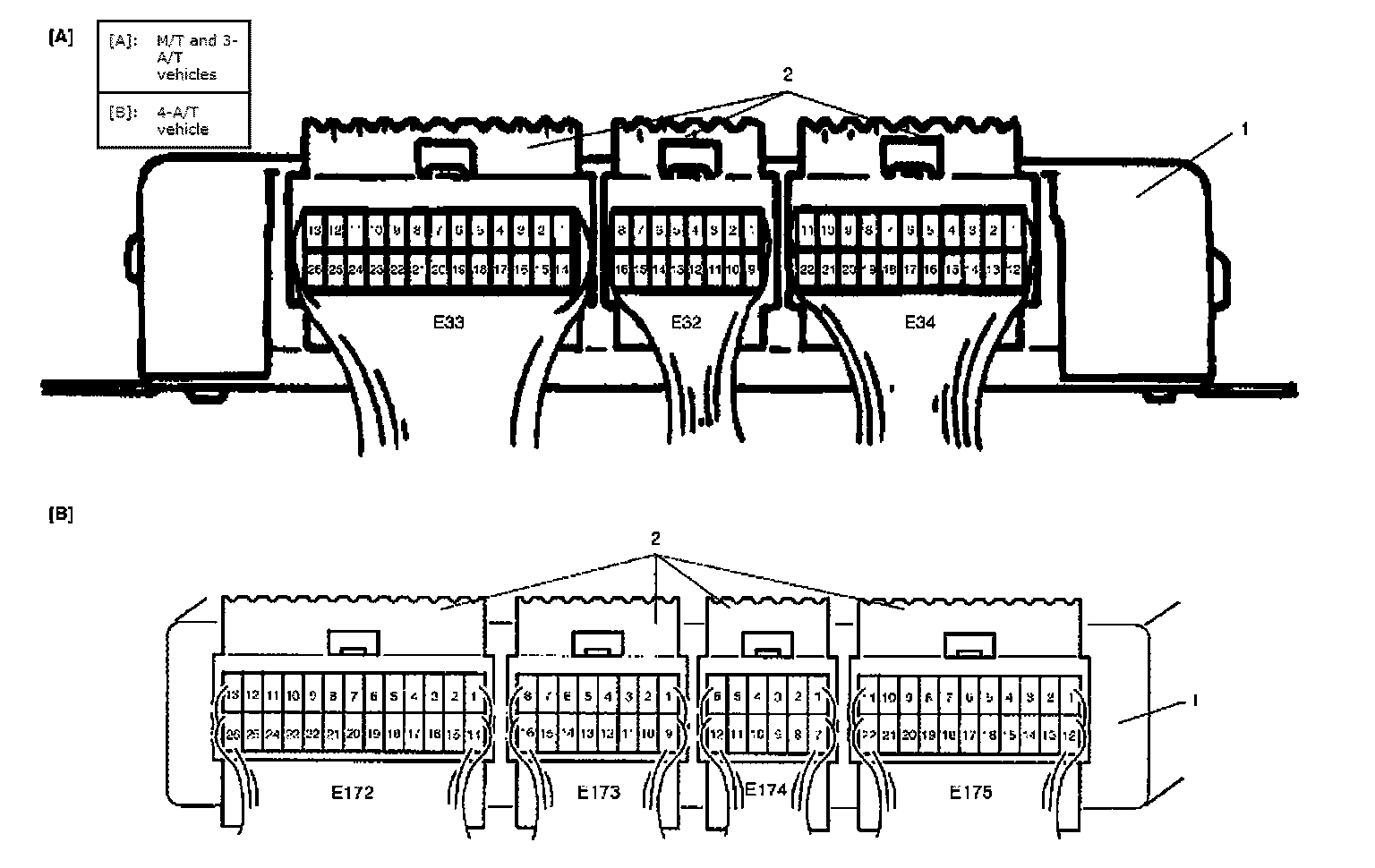

ECM Pinouts

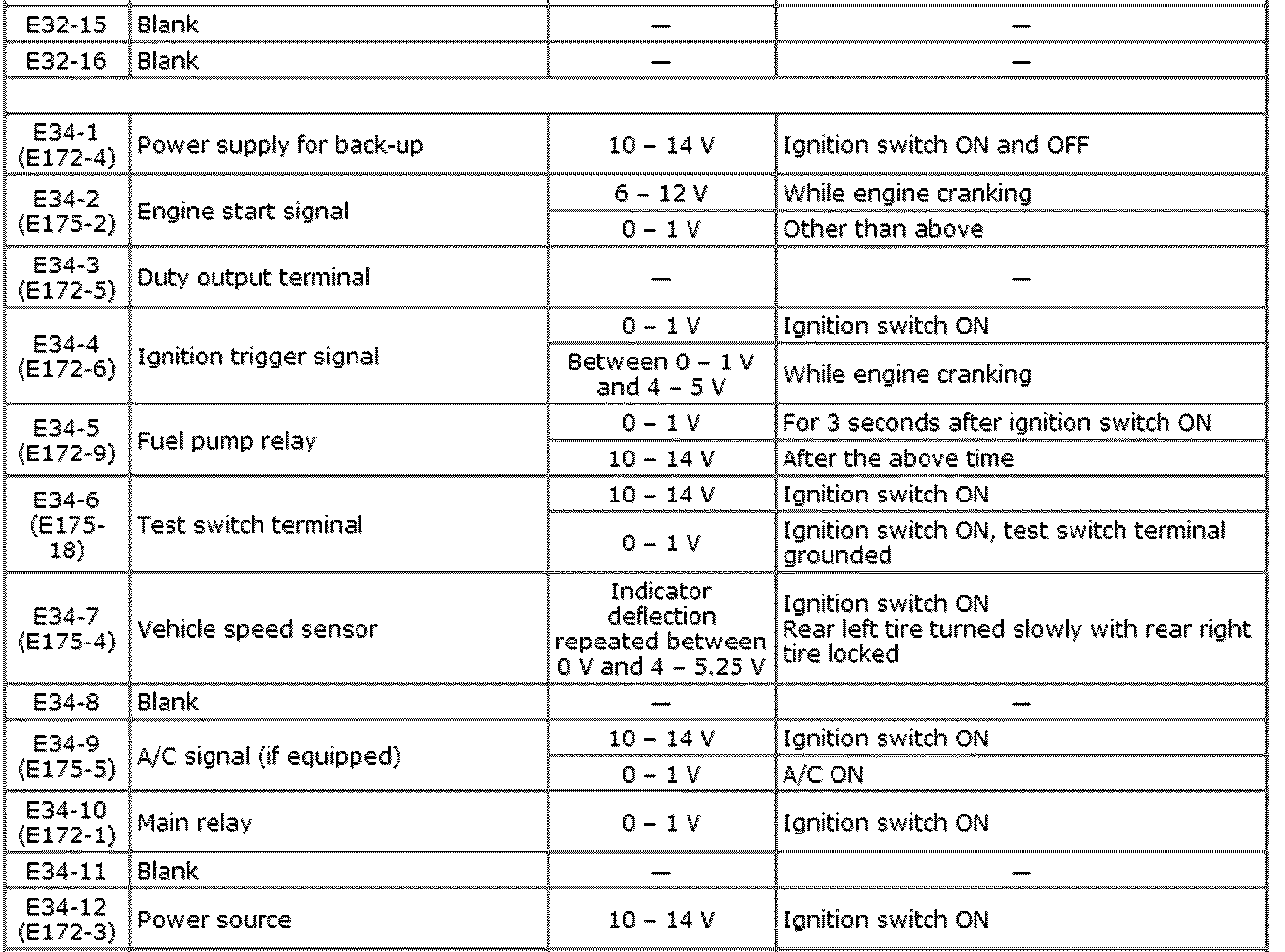

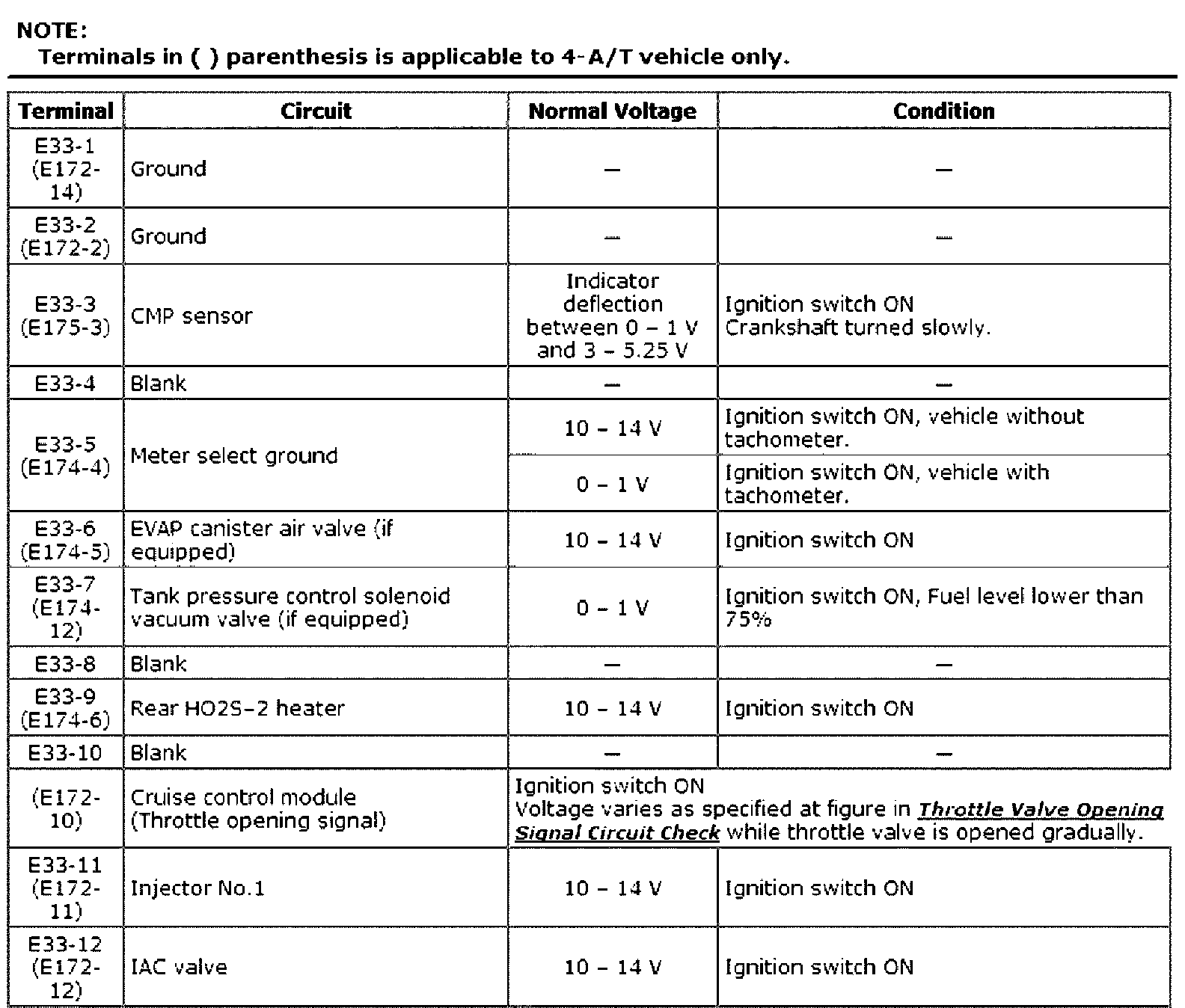

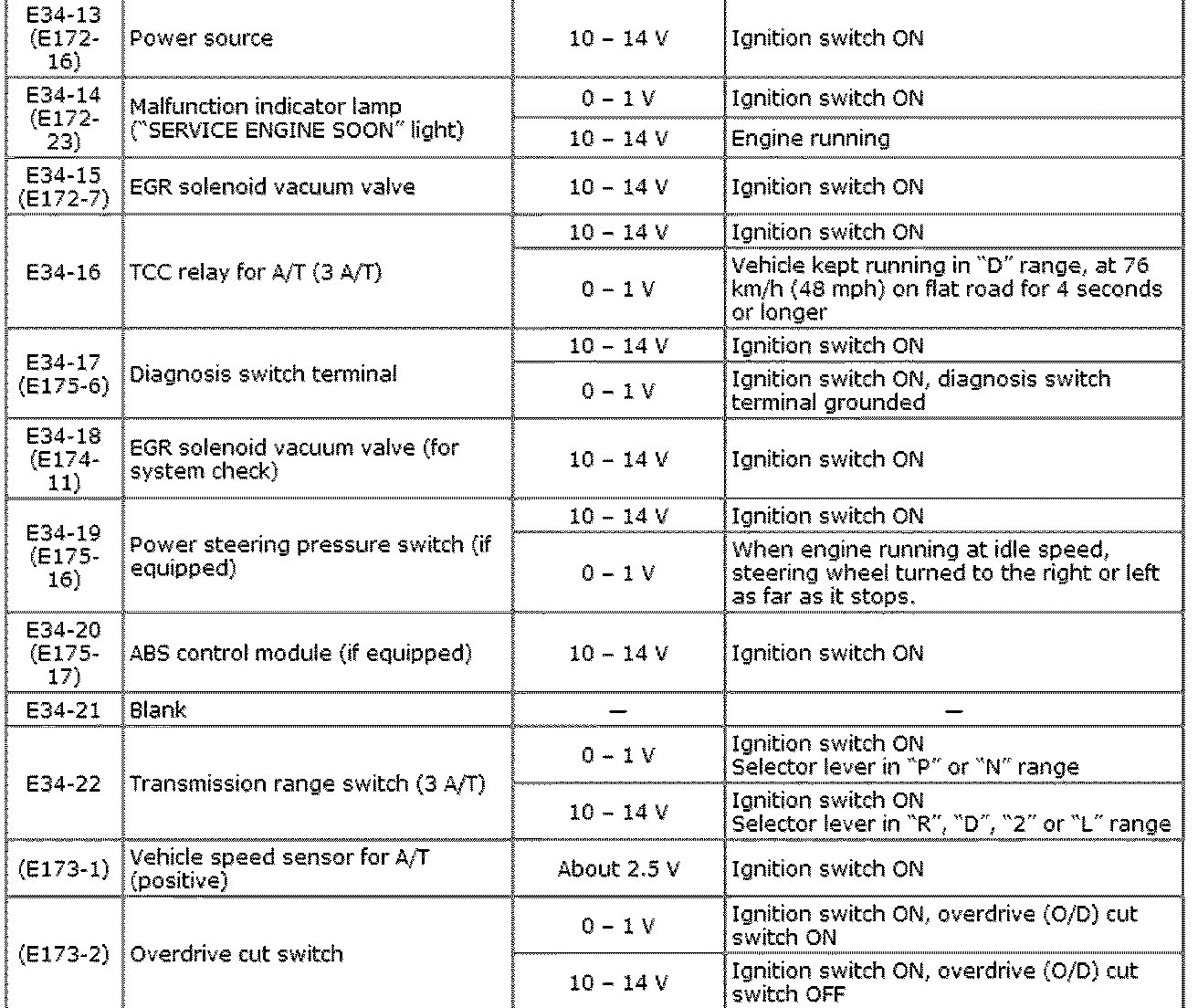

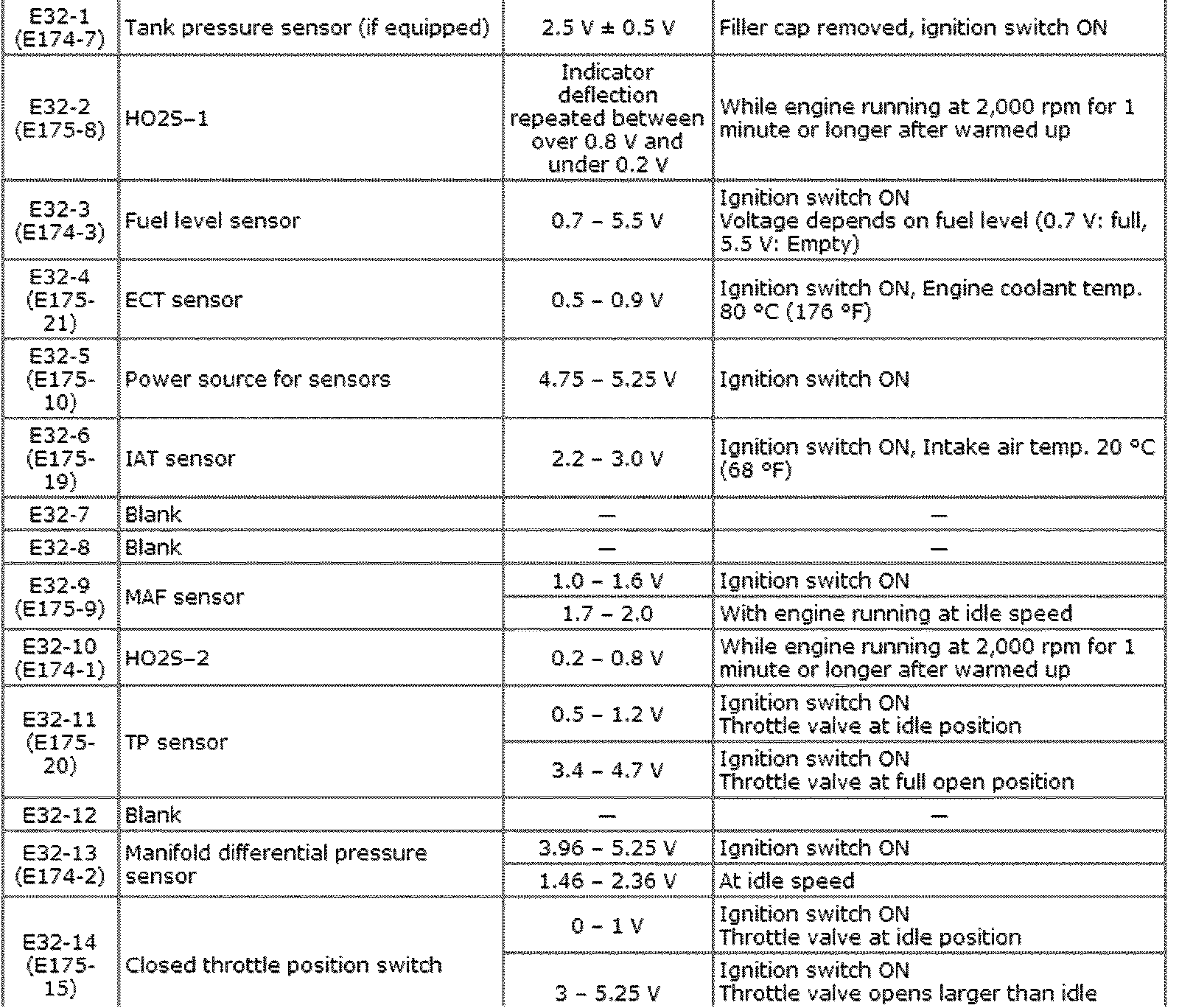

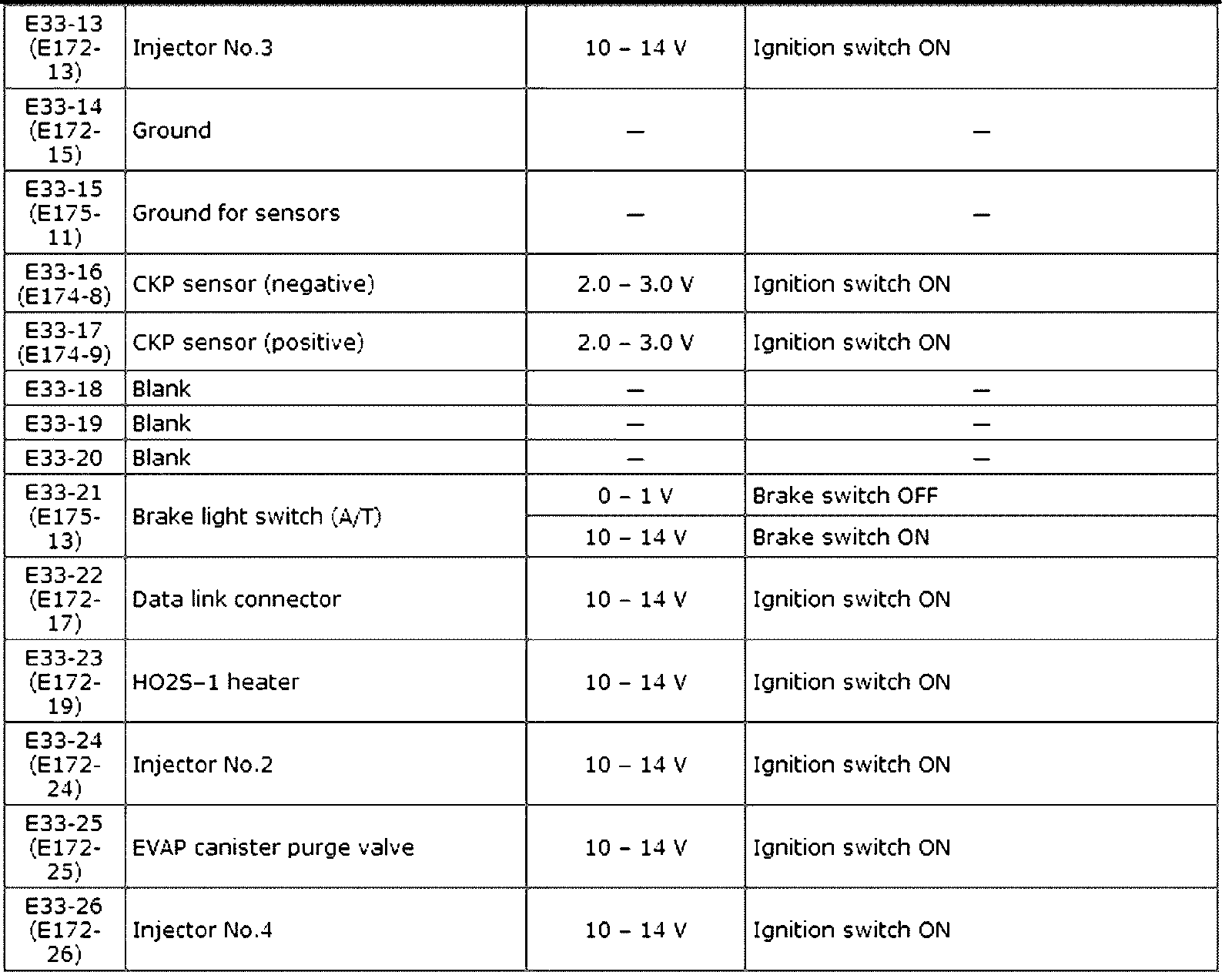

Normal voltages

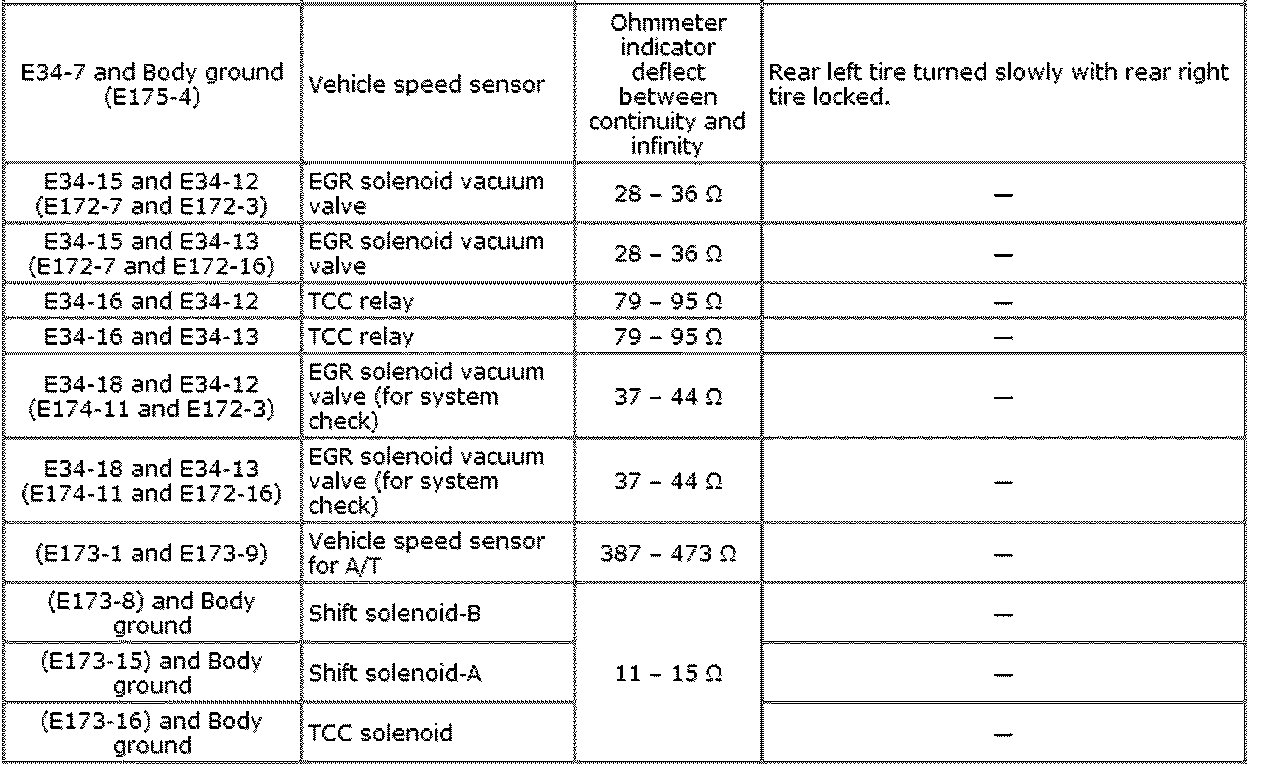

Resistance
