Brake Pedal Play Check

Pedal play should be within specification. If out of specification, check brake light switch for proper installation position and adjust if necessary.

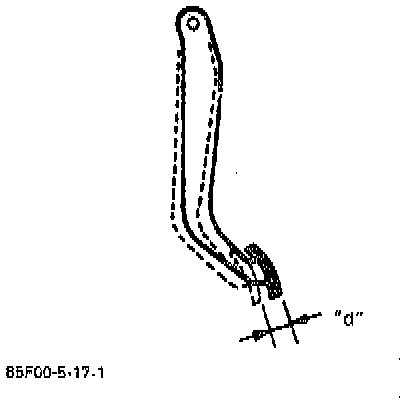

Pedal play "d" is 1 - 8 mm (0.04 - 0.32 inch.)
Also, check pedal shaft bolt and master cylinder pin installation for looseness and replace if defective.
