Brake Pedal Assy: Adjustments

FREE HEIGHT ADJUSTMENT
1. When booster push rod clevis has been reinstalled, it is important that measurement between booster mounting surface and center or clevis pin hole is adjusted.

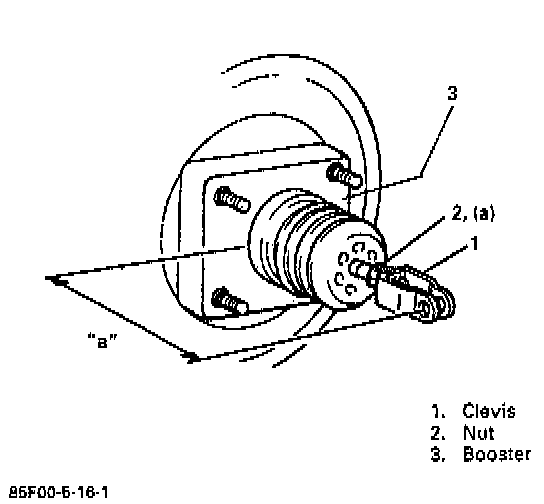

2. Length "a" should be 126.1 - 127.1 mm (4.96 - 5.00 inch.)Tightening torque of nut (a) is 25 Nm (18.5 ft. lbs.).
3. When brake light switch has been removed, refer to brake light switch adjustment for proper installation.

NOTE: This service may affect brake pedal height.
