Installation

1) Before installation, check following:

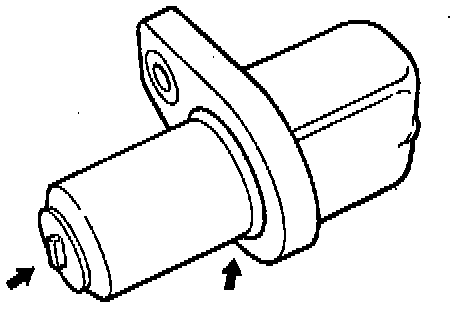

- Check to make sure that sensor tooth is free form any metal particles.

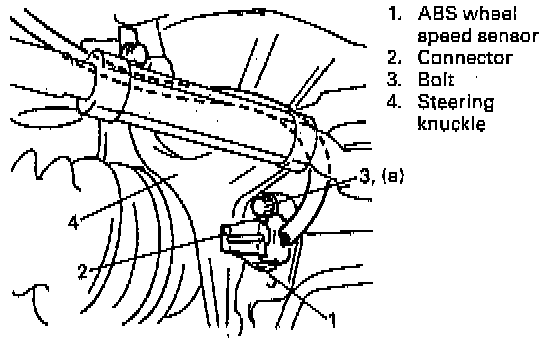

2) Install front wheel sensor to steering knuckle.
3) Tighten sensor bolt to specified torque.

Tightening Torque
(a): 10 Nm (1.0 kg-m, 7.5 ft. lbs.)

4) Connect sensor connector securely.
5) Lower hoist and connect battery negative cable to battery.
