Solenoid Valve Body

1. Disconnect battery ground cable.
2. Disconnect solenoid electrical connector. Remove Torx head bolts, then the solenoid assembly.

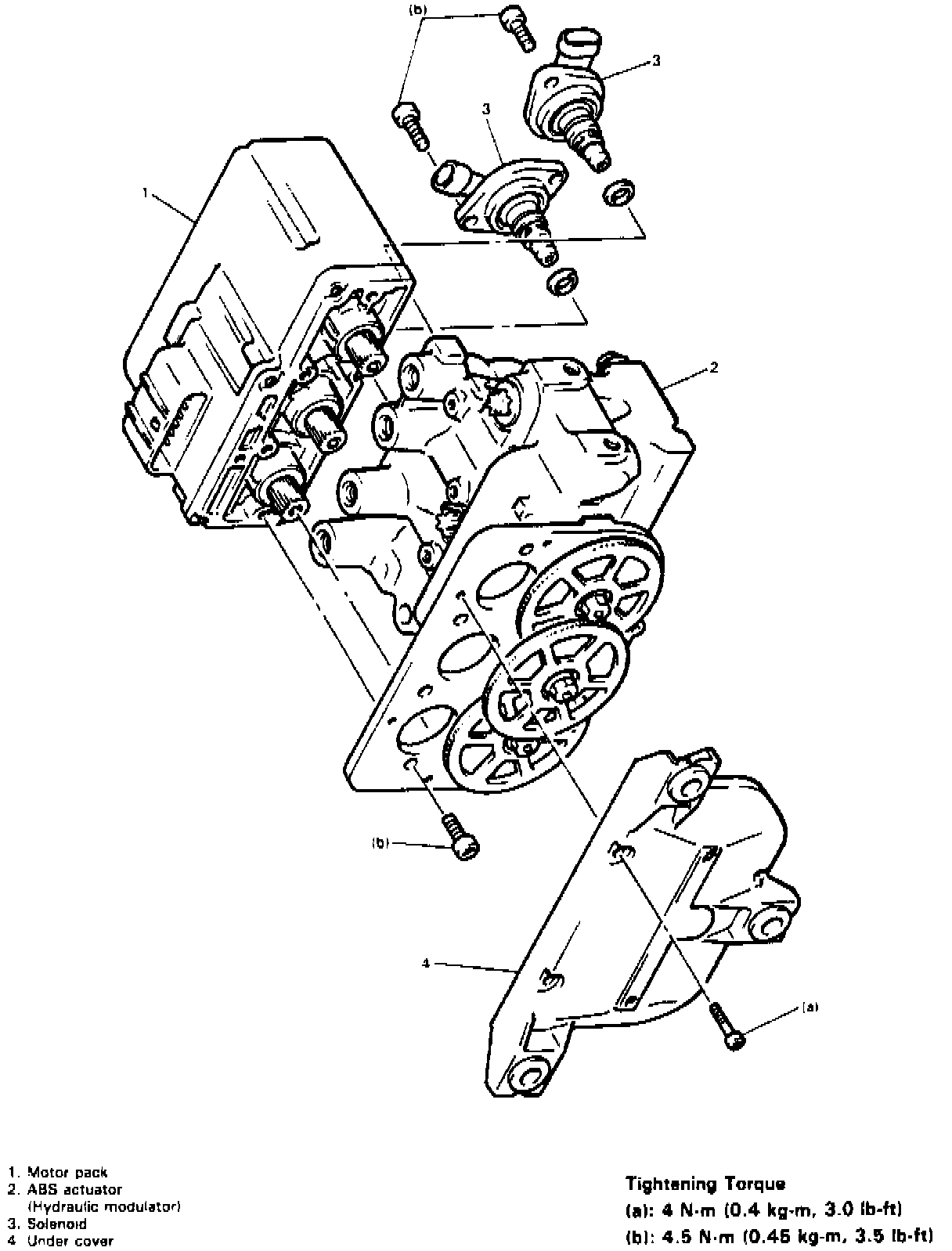

Fig. 12 Exploded View Of ABS Modulator Assembly:

3. Reverse procedure to install, torque ABS modulator assembly Torx head bolts, "A" to 3 ft lbs. and "B" to 3.5 ft. lbs., Fig. 12.
