Installation

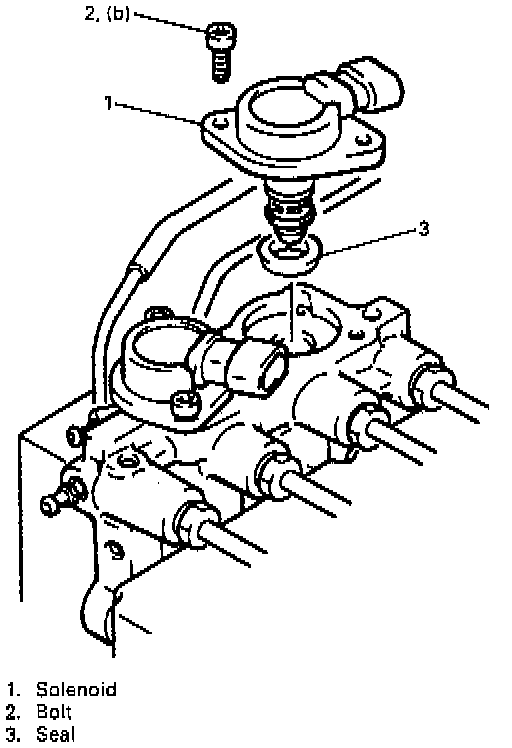

1) Install solenoid on Antilock Brake System (ABS) actuator.

NOTE:
- Lubricate solenoid seal with clean brake fluid.
- Verify that the solenoid lip seal is properly positioned before solenoid is installed in the ABS actuator.
- Position solenoid so that its electrical connector faces the same direction as prior to removal.
- Press the solenoid down firmly by hand until its flange seats on the ABS actuator.

2) Tighten solenoid mounting bolts.

Tightening Torque
(b): 4.5 Nm (0.45 kg-m, 3.5 ft. lbs.)

3) Connect solenoid harness connector.
4) Connect battery negative cable to battery.
5) Bleed brake system. Refer to "Bleeding System.
