Suzuki Truck
>>
1995
>>
Sidekick 2WD L4-1590cc 1.6L SOHC 0 TBI 8V
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
Scan Tool Testing and Procedures

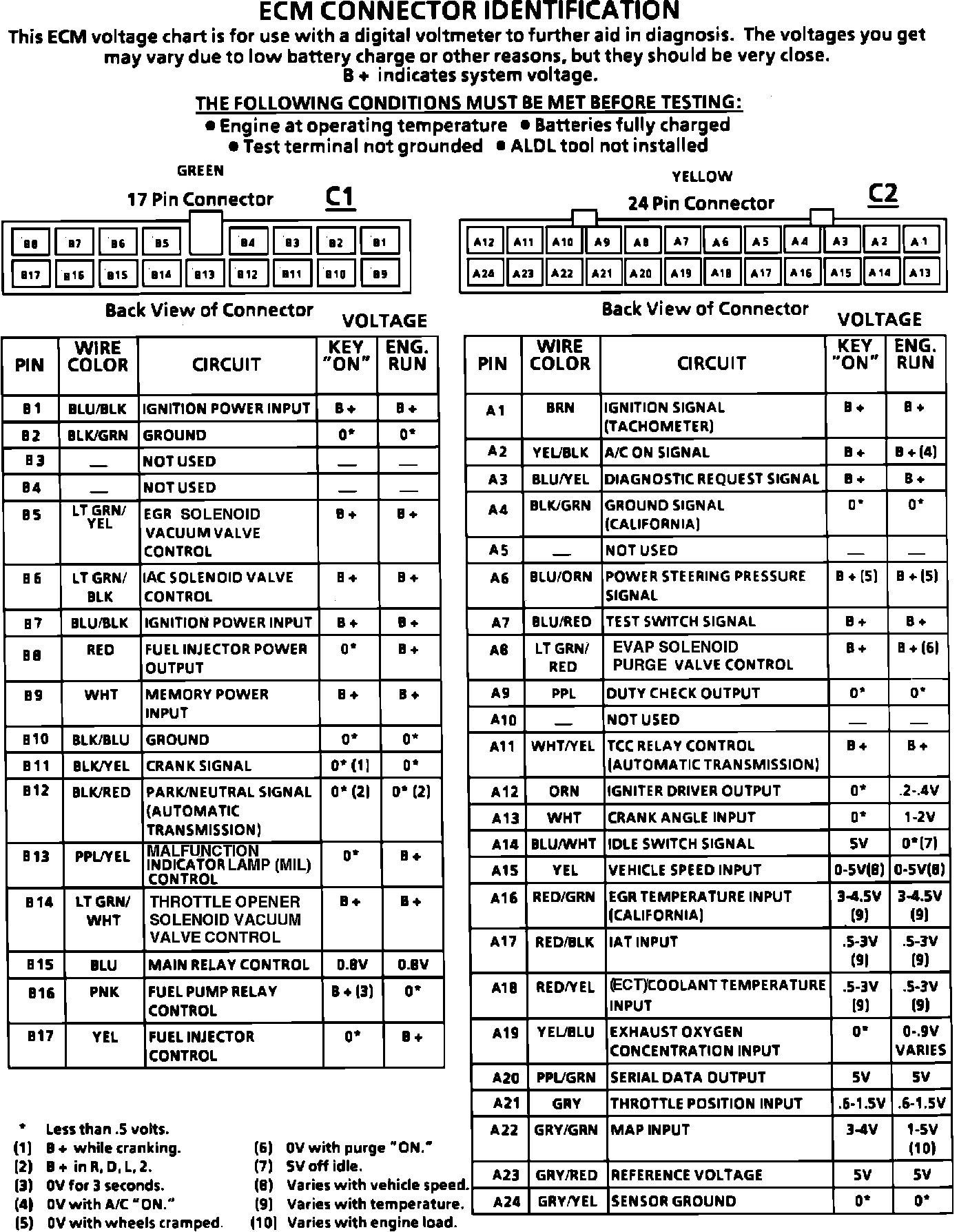

Connector Identification:

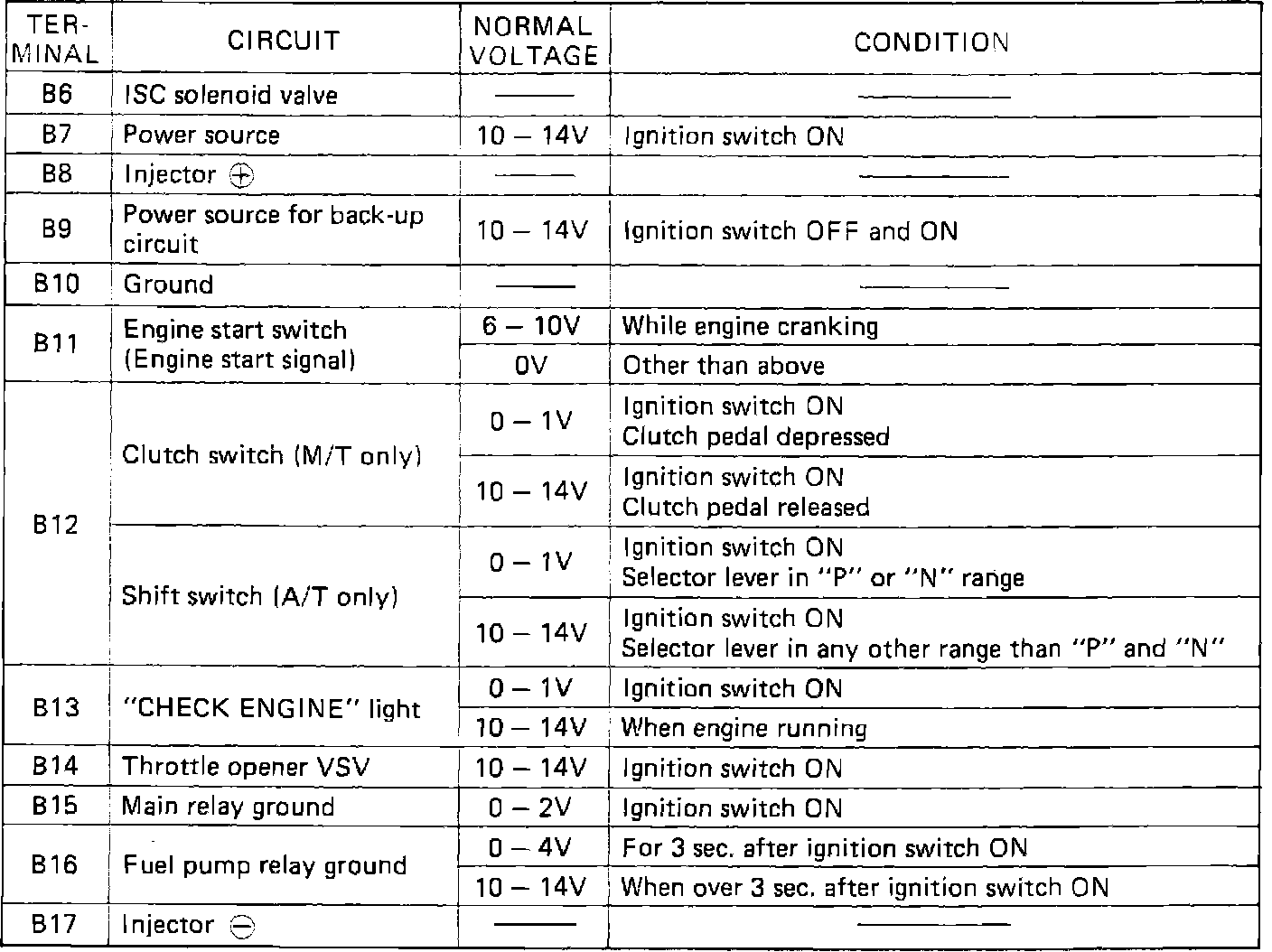

ECM Terminal Voltage Values:

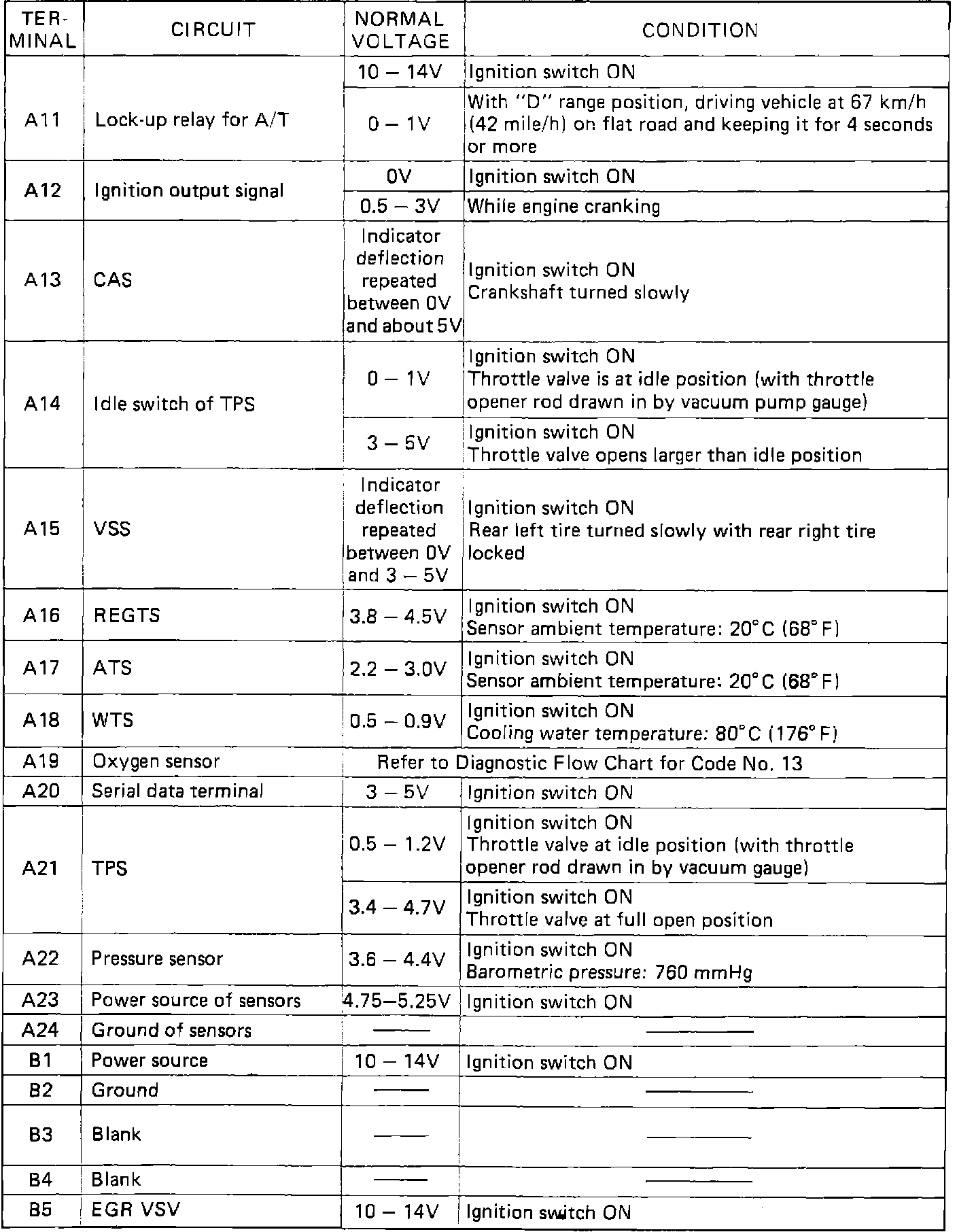

ECM Terminal Voltage Values:

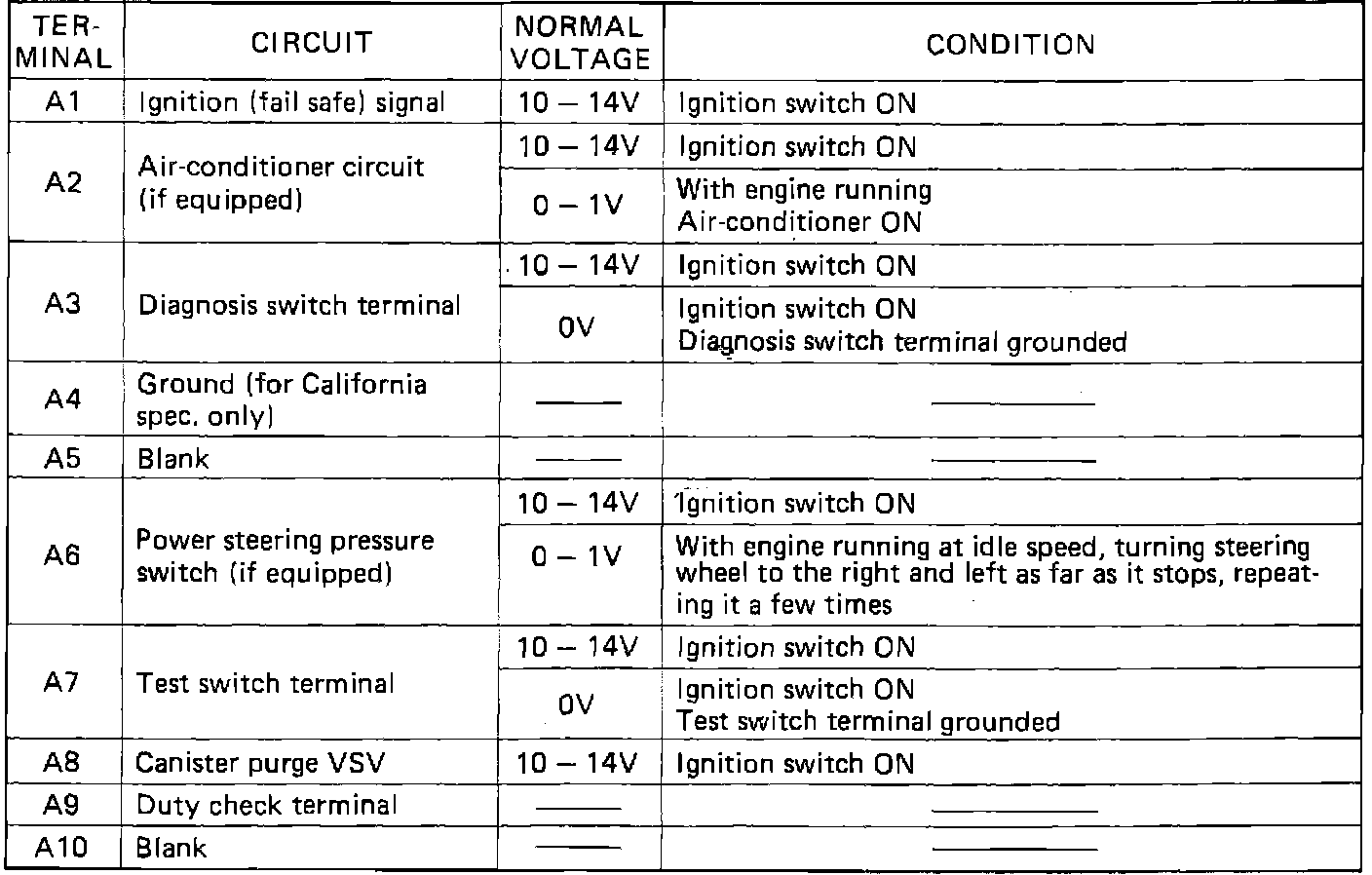

ECM Terminal Voltage Values:

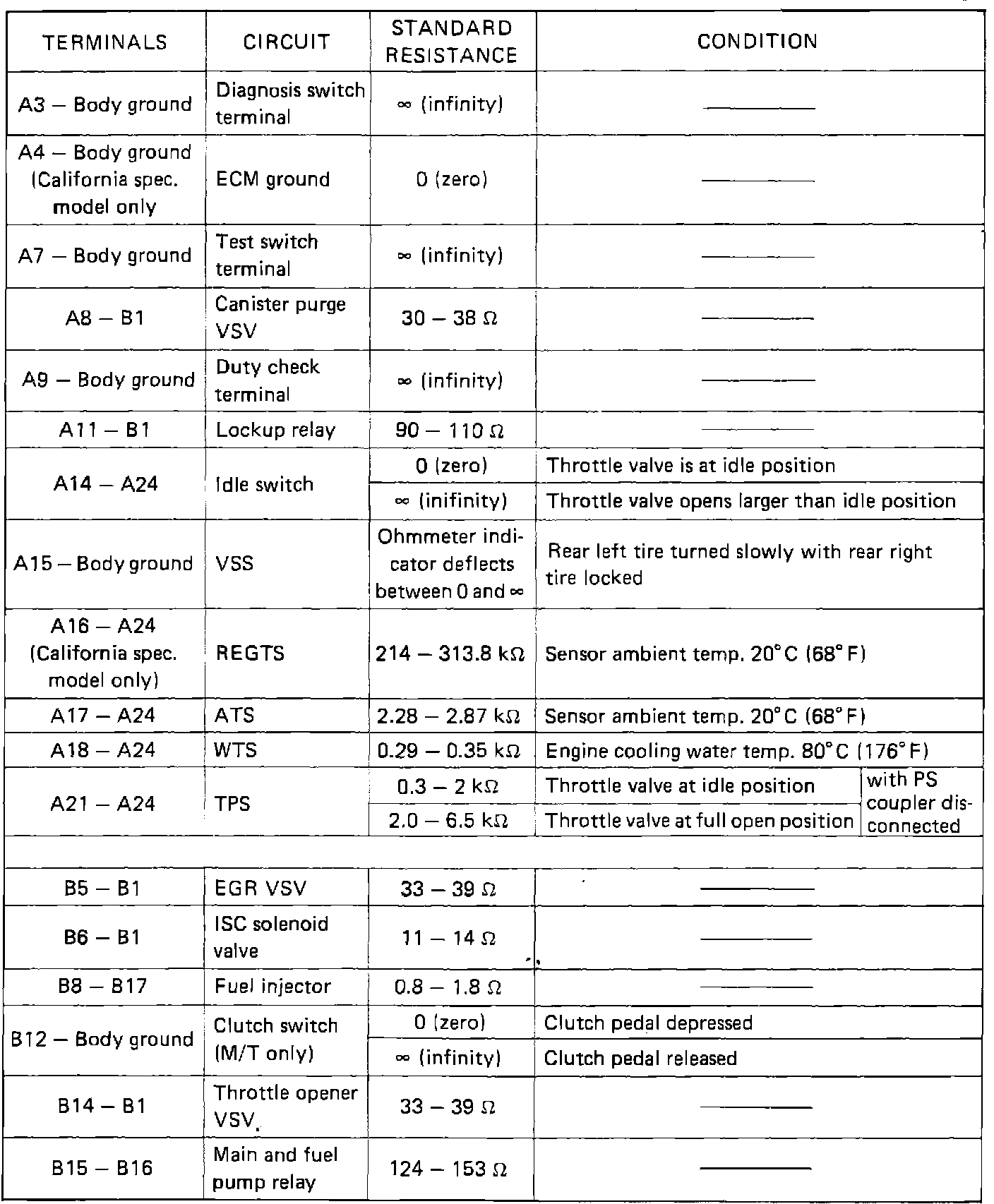

ECM Terminal Resistance Values:
