Home >> Suzuki Truck >> 1995 >> Sidekick 2WD L4-1590cc 1.6L SOHC 0 MFI 16V >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Diagnostic Flow Chart "C"

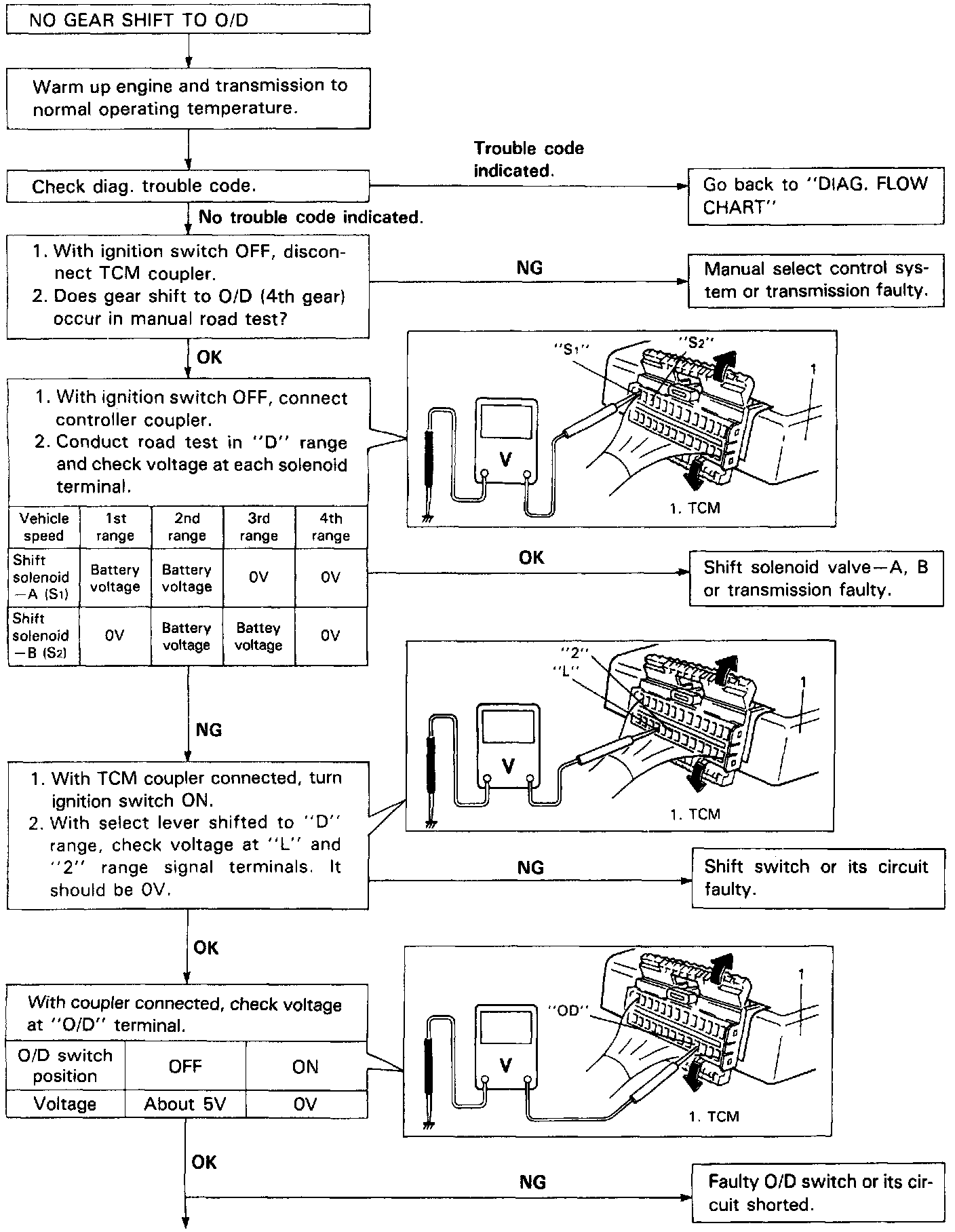

Diagnostic Flow Chart "C"

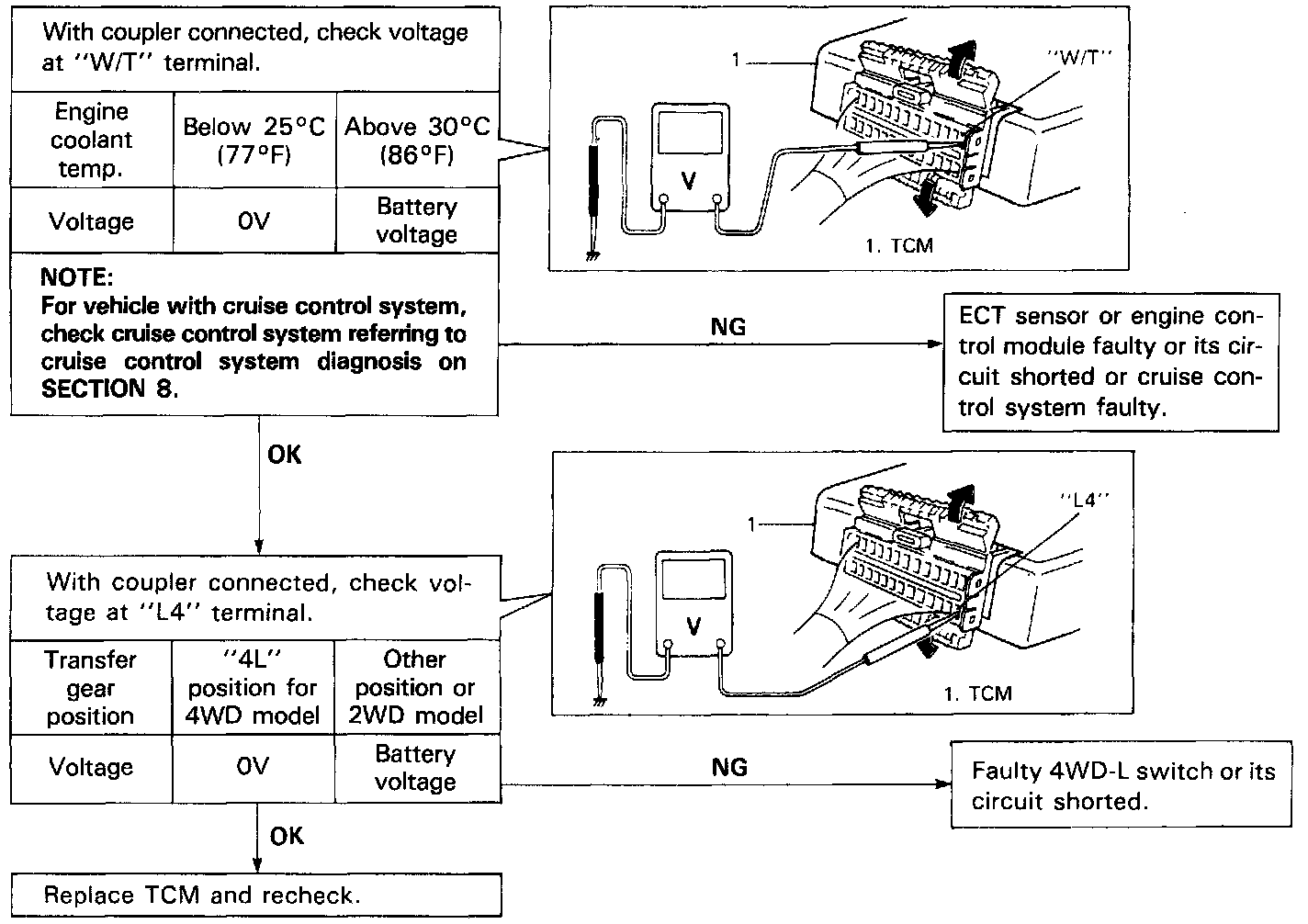

DIAGNOSTIC CHART C
