Automatic Transmission Diagnostic Flow Chart
Automatic Transmission Diagnostic Flow Chart

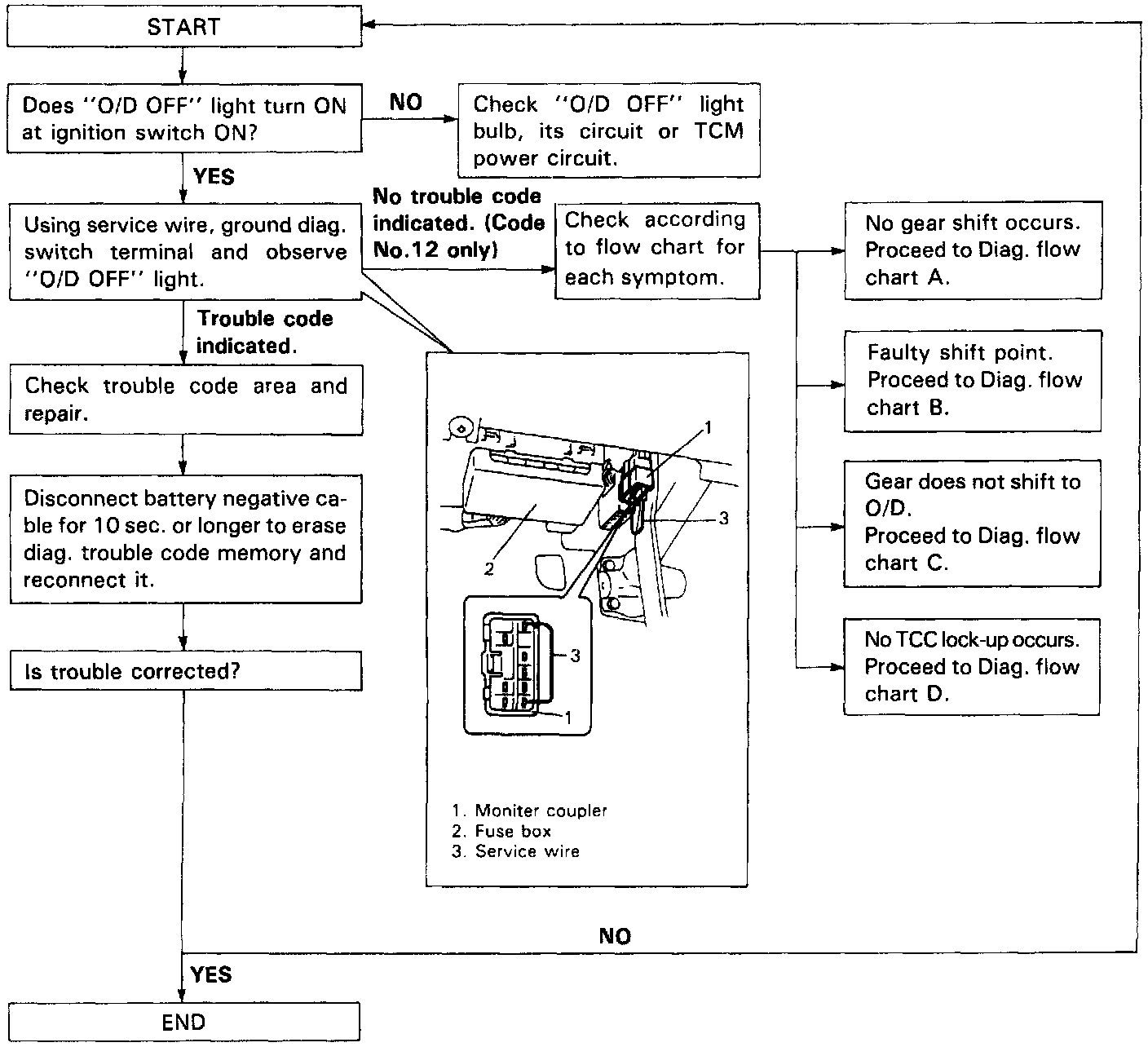

Diagnostic Flow Chart:
