EGR Temperature Sensor: Testing and Inspection

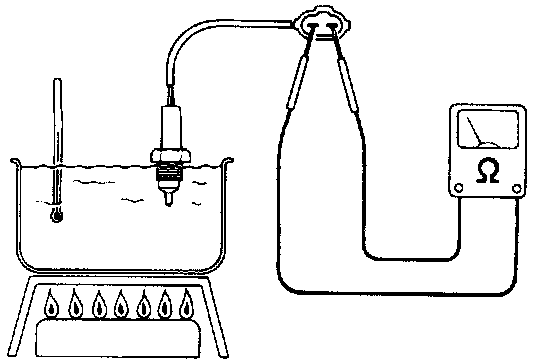

Immerse temperature sensing part of the sensor in water and measure resistance between sensor terminals while heating water gradually.

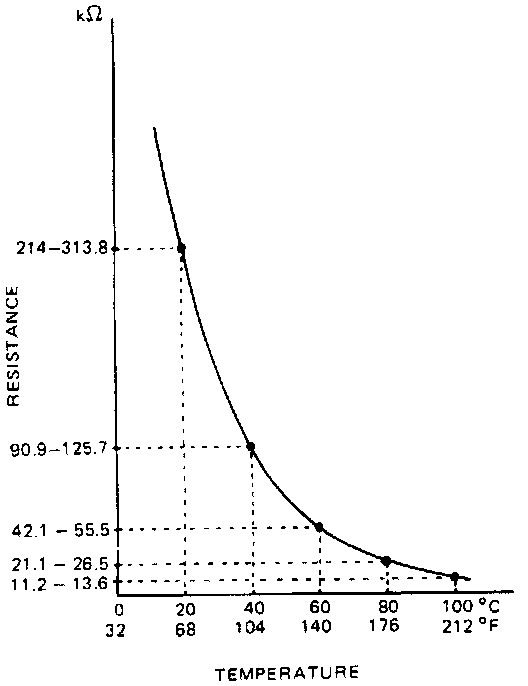

If measured resistance doesn't show such characteristic as shown in the above image, replace.
