EGR Temperature Sensor: Description and Operation

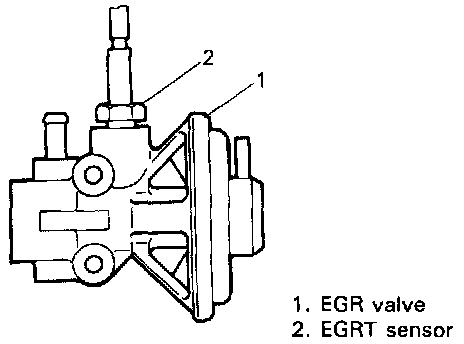

This sensor is located at the EGR valve. The sensor measures the temperature of the gas which was recirculated through the EGR valve and converts a change in the exhaust gas temperature into that in resistance to send it to ECM.
ECM uses it for diagnosing a trouble in the EGR system.
