Vacuum Source

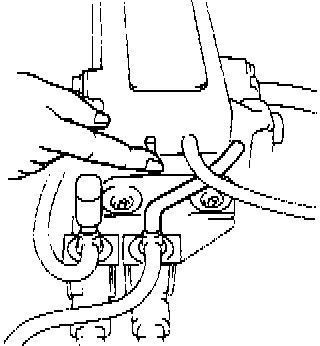

Vacuum Passage Inspection:
-
Start engine and run it at
idle speed
.
-
With finger placed against vacuum nozzle, check that vacuum is applied.
-
If it is not applied, clean vacuum passage by blowing compressed air.
