ECM - Fuel Pump Operating Condition Modification
TSB No. TS 4-21 04196Section Title: Engine
Division: Automotive
Category: Technical
SUBJECT:
MODIFICATION OF FUEL PUMP OPERATING CONDITION BY THE ECM
MODEL:
SIDEKICK SPORT
YEAR:
NOVEMBER 1995 PRODUCTION AND LATER
CONDITION:
Modification of the Electronic Control Module (ECM).
CAUSE:
N/A.
CORRECTION:
When replacing the ECM, please use the updated part numbers listed in this bulletin.
This bulletin is to inform you of the modification of the ECM (Engine Control Module) which has been carried out since November 1995 production. The LATE type ECM has been modified to activate the fuel pump for three (3) seconds when the key is initially turned to the "ON" position. When ordering a new ECM for this vehicle, please use the information contained in this bulletin.
EFFECTIVE STARTING VIN
WITH UPDATED PARTS
JS3TD21V_T4105124~
EARLY/LATE TYPE IDENTIFICATION

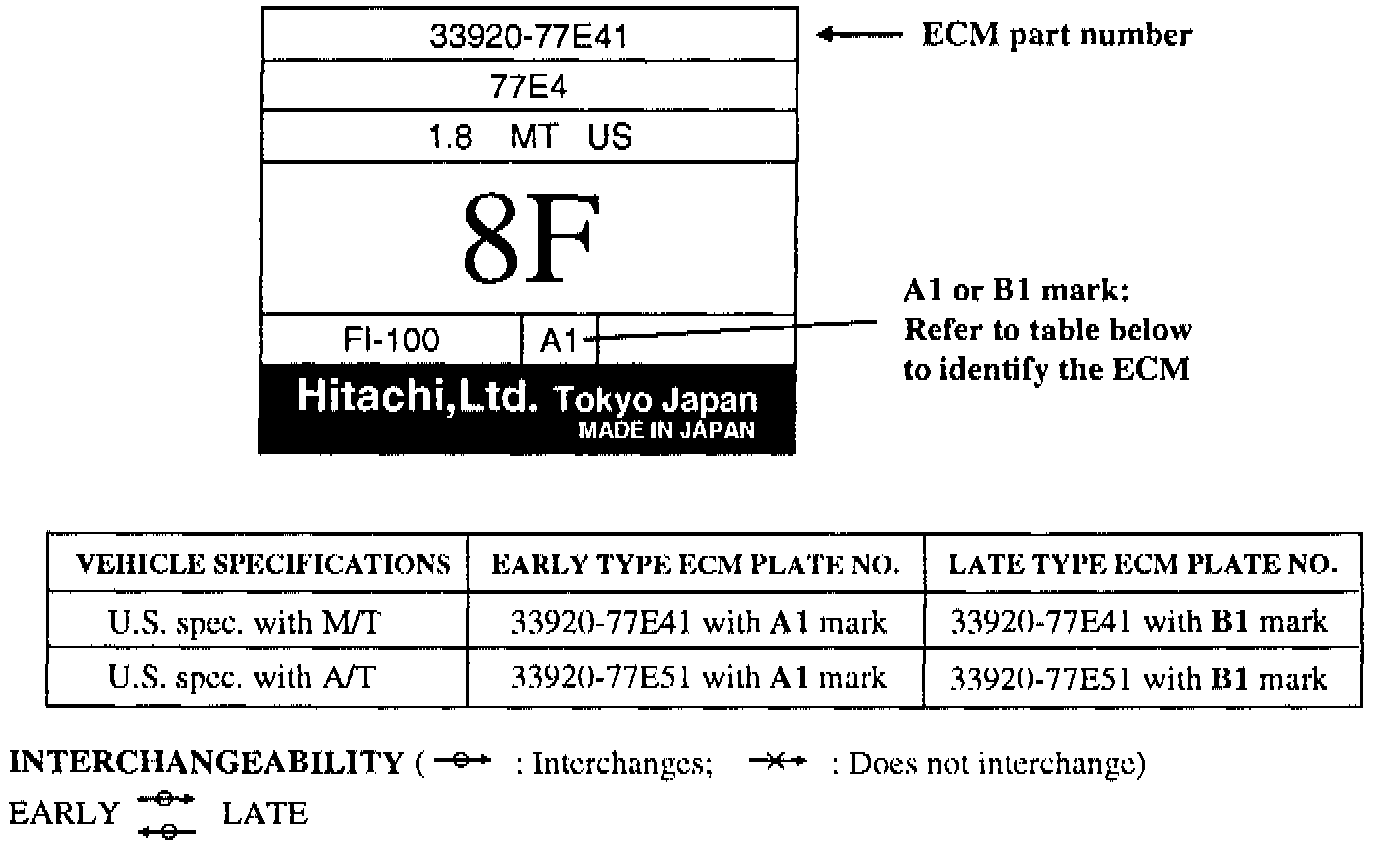

Both the EARLY and LATE type ECM can be identified by the ECM Name Plate affixed to the face of the ECM, as shown.
FUEL PUMP OPERATION
Depending on the type of ECM installed in the vehicle, fuel pump operation will vary on both the EARLY and LATE type ECM. Please note the differences between these two types, as listed below:
EARLY TYPE
- The ECM will activate the fuel pump when it receives a signal from:
^ the engine starter circuit the CMP (Camshaft Position) sensor.
NOTE:

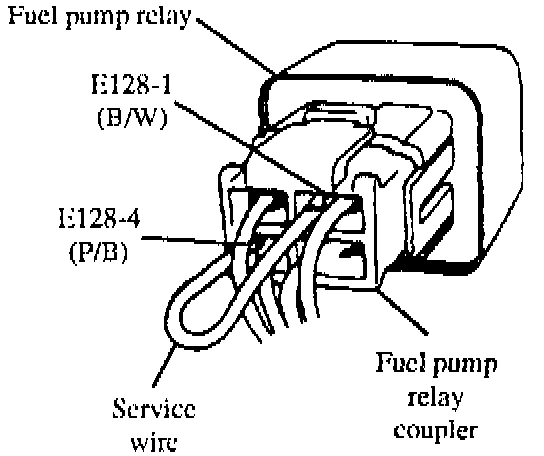

The fuel pump on vehicles with the EARLY type ECM will not operate when the engine is not running and the ignition switch is in the "ON" position. To activate the fuel pump with the EARLY style ECM without cranking the engine, insert a jumper wire into terminals E128-4 (P/B wire) and E128-1 (B/W wire) of the fuel pump relay coupler.
LATE TYPE
- The ECM will activate the fuel pump when it receives a signal from:
^ the engine starter circuit
^ the CMP (Camshaft Position) sensor.
- The fuel pump will operate for three (3) seconds when the ignition switch is initially turned to the "ON" position.
