Suzuki Truck
>>
1995
>>
Sidekick 2WD L4-1590cc 1.6L SOHC 0 MFI 16V
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

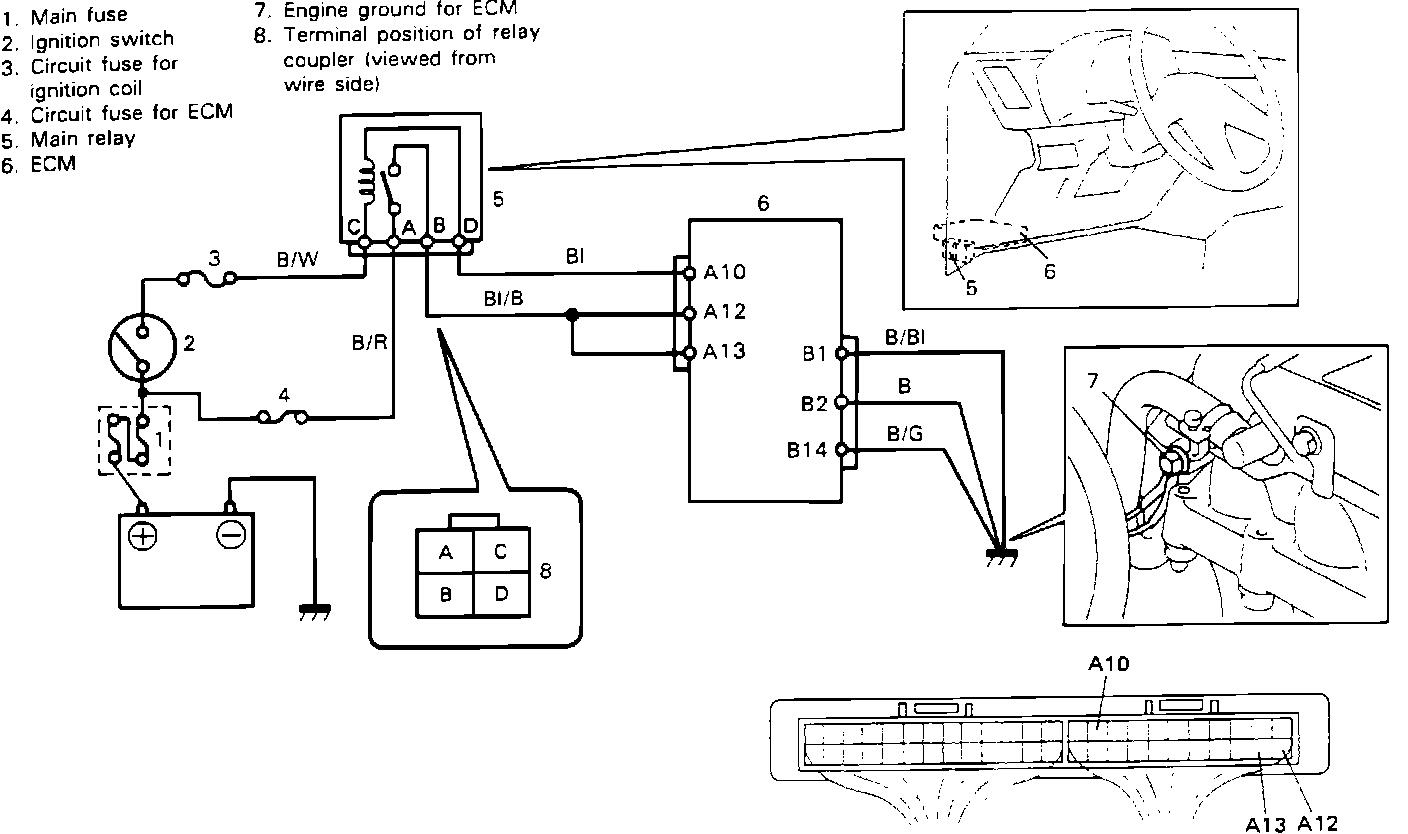

ECM Power And Ground Circuit:
