Home >> Suzuki Truck >> 1990 >> Sidekick 2WD L4-1590cc 1.6L SOHC 0 TBI 8V >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

Emission Control Systems: Diagrams

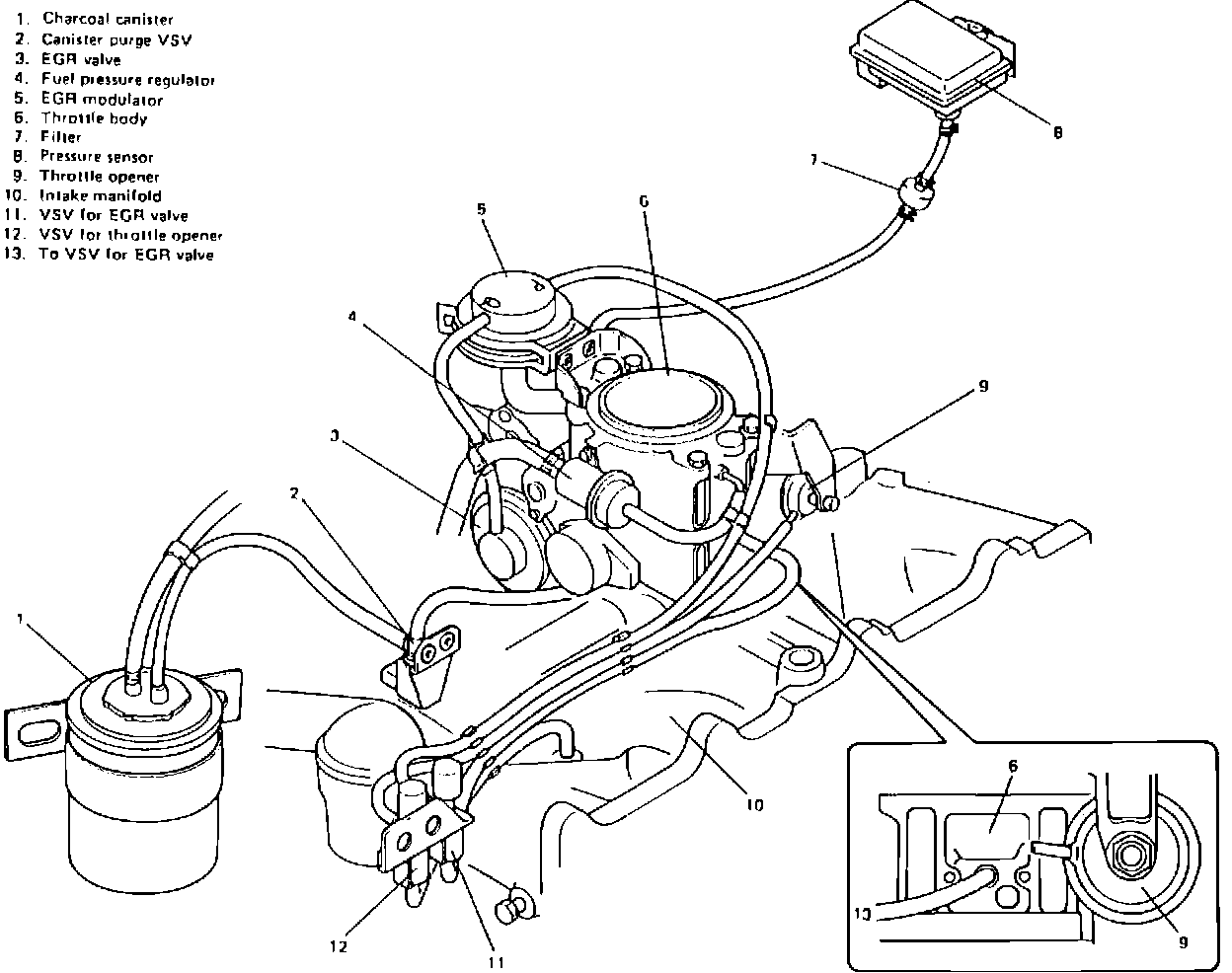

Fig. 5 Vacuum Hose Routing:
