Initial Diagnostic Circuit Check
Initial Diagnostic Circuit Check

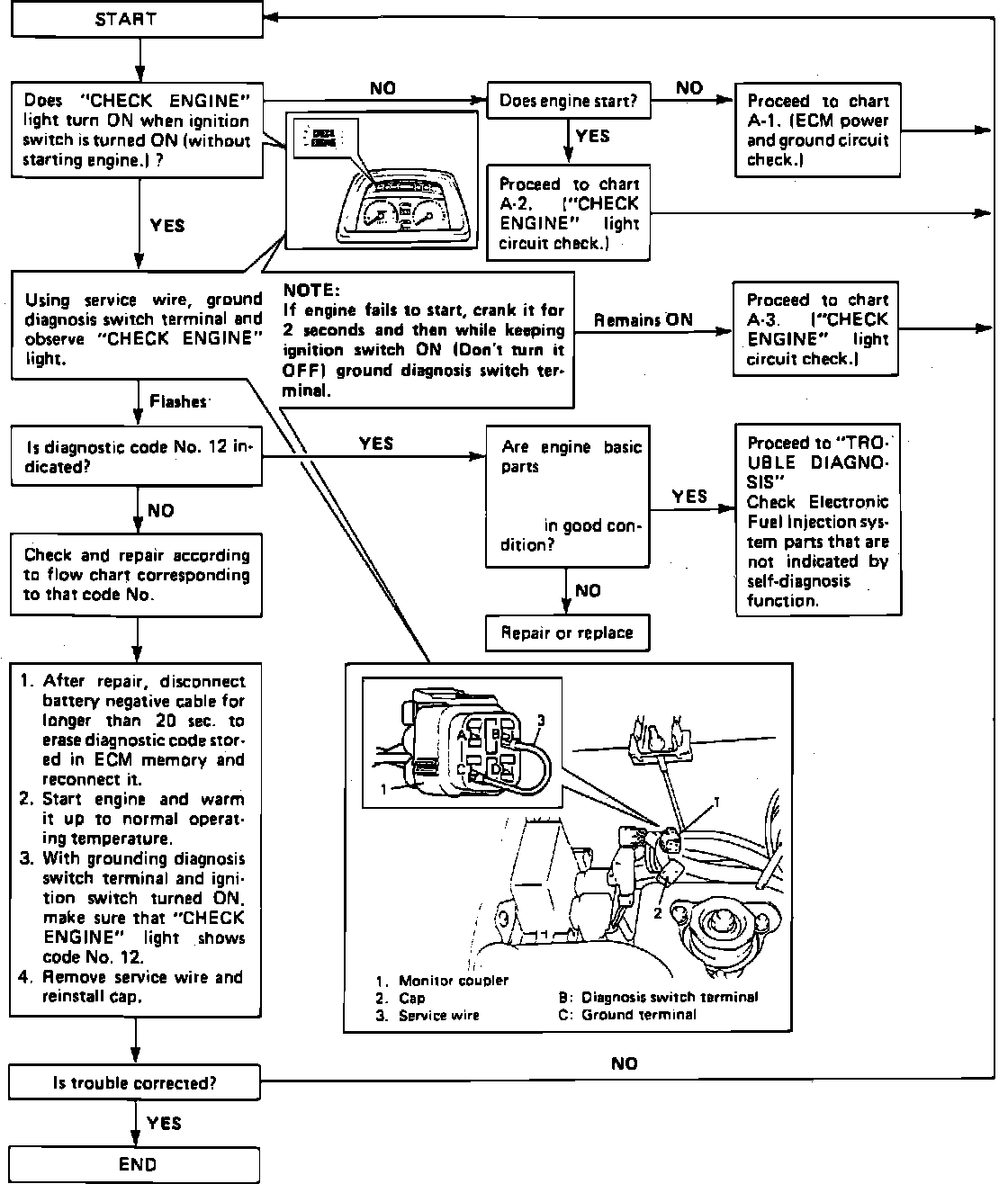

Fig. 6 Initial Diagnostic Circuit Check:
