Home >> Suzuki Truck >> 1990 >> Sidekick 2WD L4-1590cc 1.6L SOHC 0 TBI 8V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

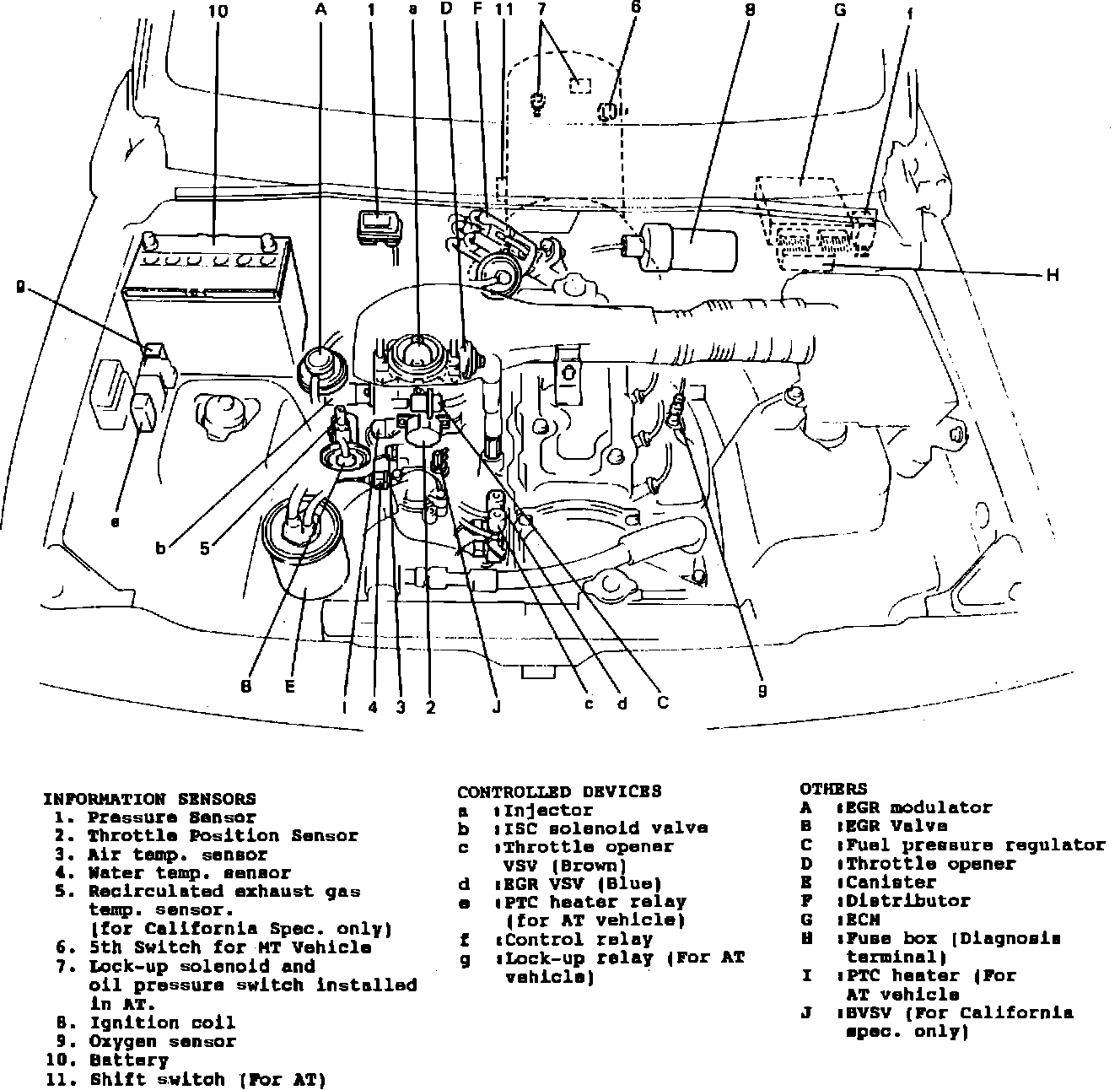

Fig. 14 Component Location:
