Home >> Subaru >> 2013 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly >> Cylinder Head

Cylinder Head

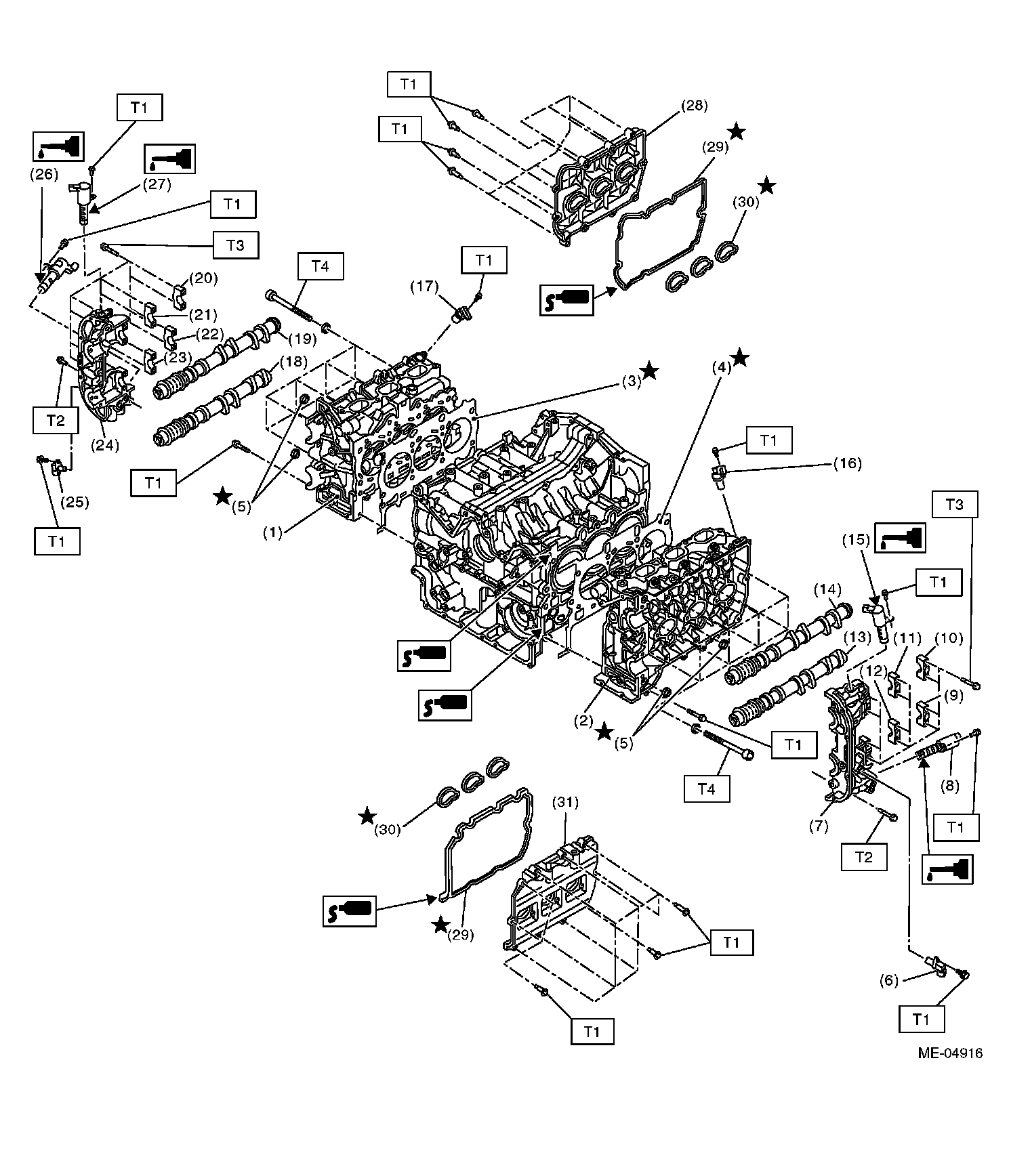

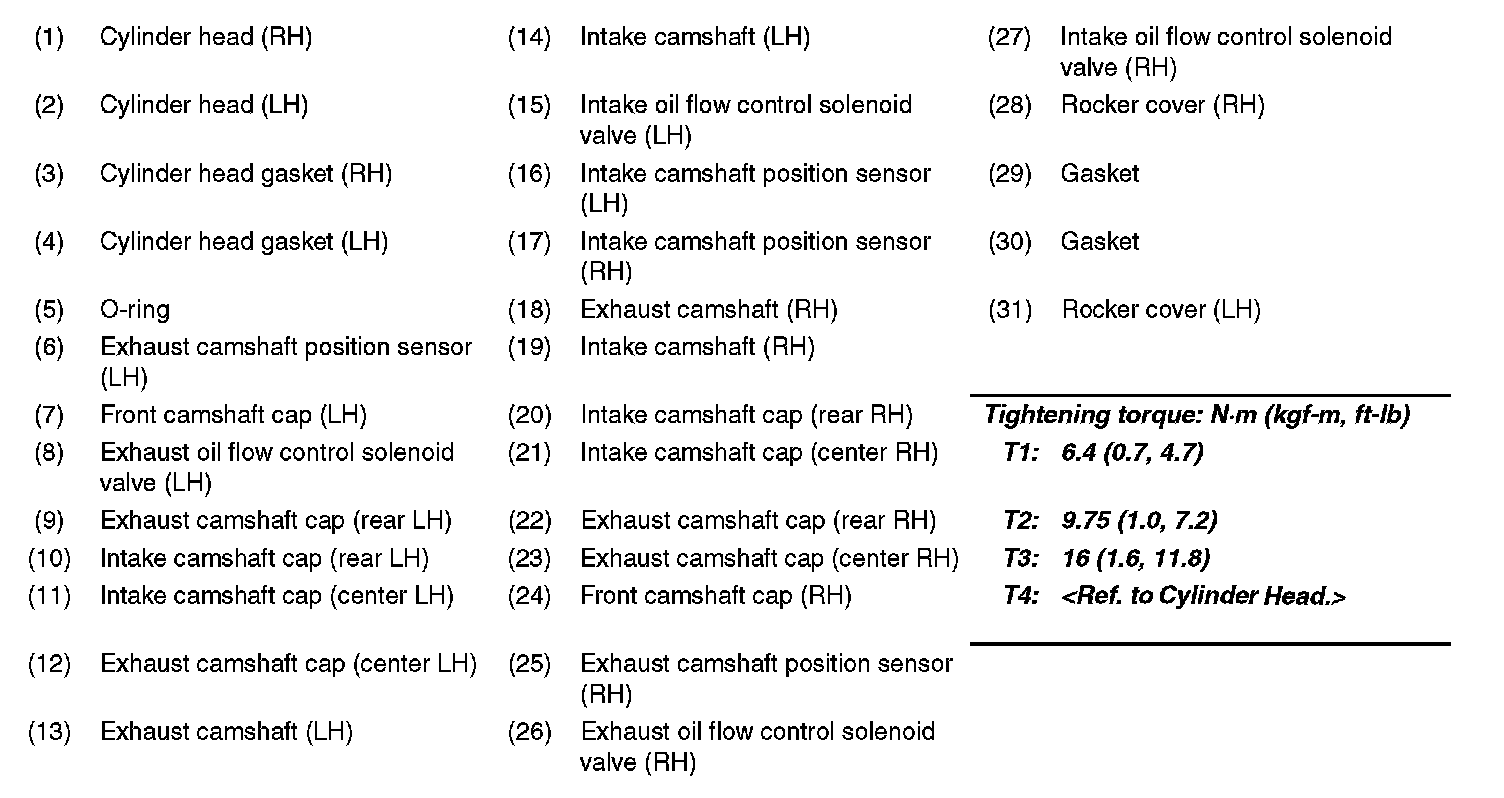

COMPONENT

CYLINDER HEAD AND CAMSHAFT
