Continuously Variable Transmission/Transaxle, CVT
>>
Transfer and Extension Case
Transfer and Extension Case

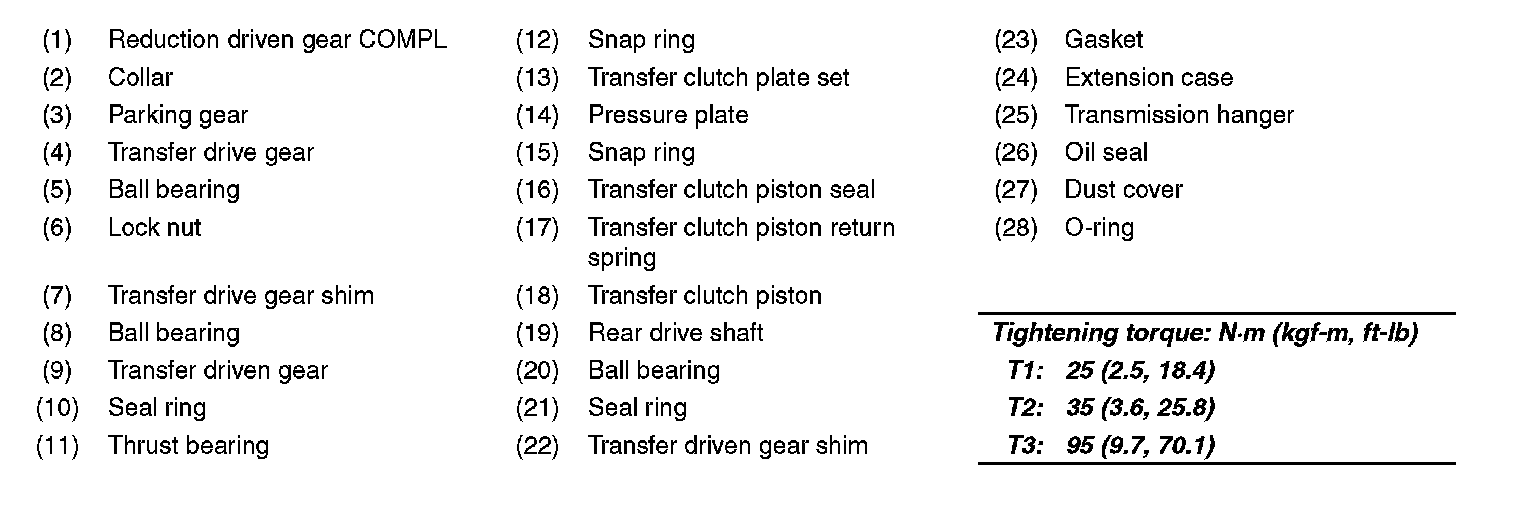

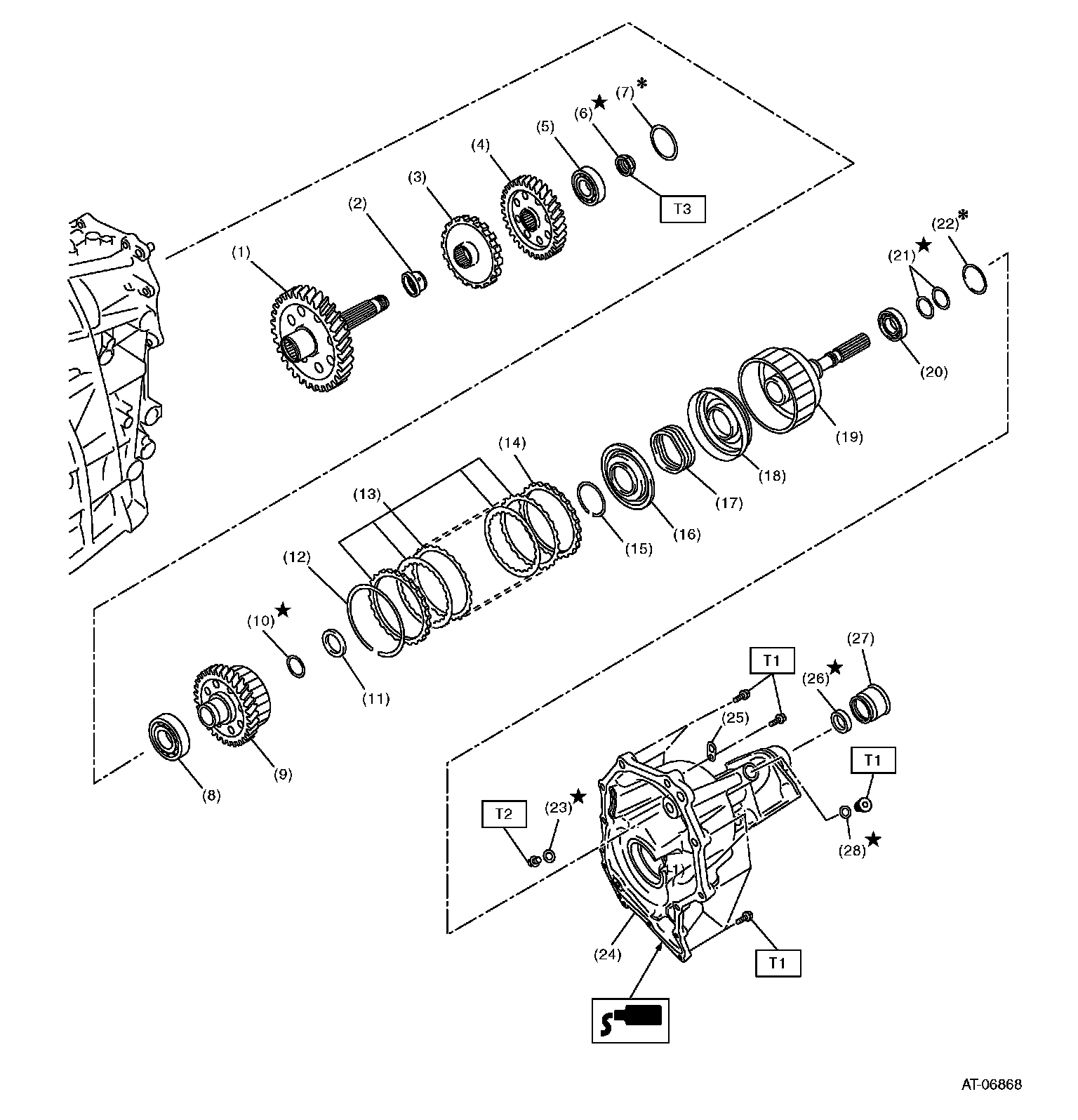

TRANSFER AND EXTENSION CASE
