Front Planetary Carrier and Rear Planetary Carrier
Front Planetary Carrier and Rear Planetary Carrier

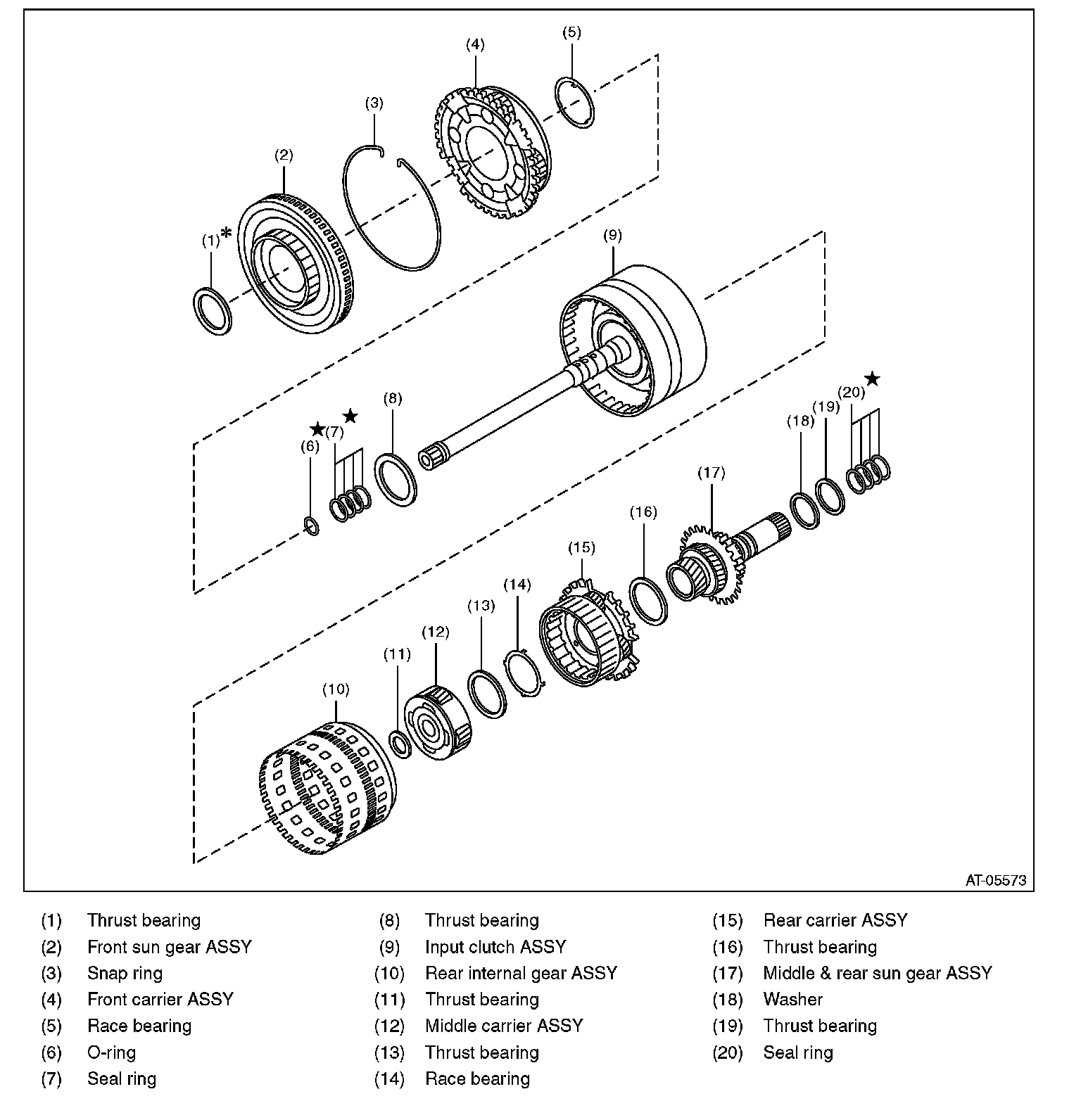

FRONT PLANETARY CARRIER AND MIDDLE & REAR PLANETARY CARRIER
